Haotian Hardware Wire Mesh Products Co., Ltd.
China Manufacturer with main products: Wire Fencing, Crowd Control Barriers, Dog Wire Kennel, Steel Hoarding Fence, Gabions, Welded Gabion, Temporary Fencing, Horse Panel |
16th
Garssland Wire Fence/ Horizontal Puppy Wire Mesh Fencing
| FOB Price: | 1.69 - 39.56 USD/Roll |
|---|---|
| Supply Ability: | 1,000 Roll/Rolls per Week |
| Shipping: | within 15 days after advanced payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wrapped with tranparent polythene film or as requirements |
Quick Details
- Wire Gauge: 1.9mm--2.6mm
- Material: Galvanized Iron Wire
- Aperture: 5*5cm-30*30cm
- Hole Shape: Square
- Application: Fence Mesh
- Type: Welded Mesh
- Material: Galvanized Iron Wire
- Model Number: G1217
- Brand Name: HT
- Aperture: 15cm,30cm
- Tensile strength: 300-450N/mm2, 700-1300N/mm2
- surface treatment: hot-dipped galvanized
- Zinc coating: 50-250g/m2
- Accessories: metal post & barbed wire
- Usage: animal and farm fence
- Feature: Easily Assembled,Eco Friendly,Press
- certification: ISO9001:2008&SGS
- roll length: 15-35m
Specifications

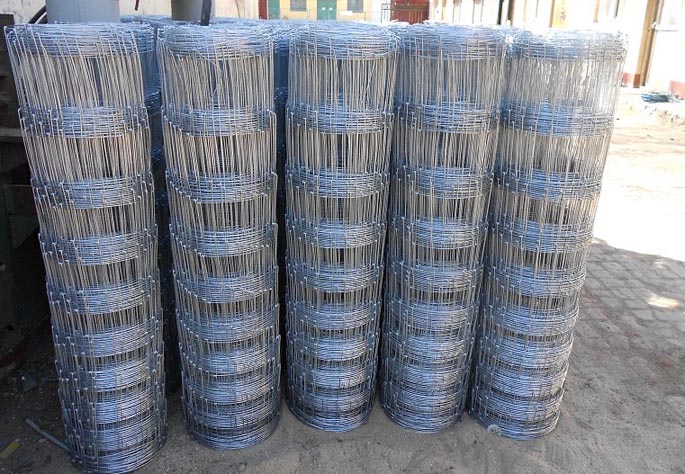

Garssland wire fence/ horizontal puppy wire mesh fencing
Field fence, also called cattle fence or grassland fence. Steel wire with high strength, with zinc coating layer or without. Graduated steel wire mesh knotted field fence is suitable for borders in fields and grassland for breeding of deer, cattle and other animals.
Material:
a) Electro galvazied iron wire
b) Hot dipped galvazied iron wire
c) High Tensile steel wire
d) PVC painted wire
Features: It is simple in structure;
Easy maintenance;
Short installation period;
Less weight;
Easy for transport;
Good ventilation.
Application: Field fence is a kind of mesh used in cattle, goat, deer, and pig.
It is used for grassland, pastures, protection of ecological projects,
Papadopoulos grassland, forestry, highway and environment.
cattle fence specifications :
|
NO. |
Specification |
Gross Weight ( kg) |
Set and bottom silk Dia. (mm) |
In silk |
Volume dia. (mm) |
||||||||
|
Type |
Specification |
||||||||||||
|
1 |
7/150/813/50 |
102+114+127+140+152+178 |
20.8 |
2.5 |
2.0 |
280 |
|||||||
|
2 |
8/150/813/50 |
89(75)+89+102+114+127+140+178 |
21.6 |
2.5 |
2.0 |
280 |
|||||||
|
3 |
8/150/902/50 |
89+102+114+127+140+152+178 |
22.6 |
2.5 |
2.0 |
280 |
|||||||
|
4 |
8/150/1016/50 |
102+114+127+140+152+178+203 |
23.6 |
2.5 |
2.0 |
280 |
|||||||
|
5 |
8/150/1143/50 |
114+127+140+152+178+203+229 |
23.9 |
2.5 |
2.0 |
280 |
|||||||
|
6 |
9/150/991/50 |
89(75)+89+102+114+127+140+152+178 |
26.0 |
2.5 |
2.0 |
280 |
|||||||
|
7 |
9/150/1245/50 |
102+114+127+140+140+152+178+203+229 |
27.3 |
2.5 |
2.0 |
280 |
|||||||
|
8 |
10/150/1194/50 |
89(75)+89+102+114+127+140+152+178+203+229 |
28.4 |
2.5 |
2.0 |
280 |
|||||||
|
9 |
10/150/1334/50 |
89+102+114+127+140+152+178+203+229 |
30.8 |
2.5 |
2.0 |
280 |
|||||||
|
10 |
11/150/1422/50 |
89(75)+89+102+114+127+140+152+178+203+229 |
19.3 |
2.5 |
2.0 |
280 |
|||||||
|
Remark: For the type: The first number is how many pieces of wire for vertical direction; The send number is the width of the mesh opening size (mm) for the traverse direction; The third number is the height of the fence; The last number is the length for the fence, 50M is standard and usual size, also we can do it as your request |
|||||||||||||
Pls give us your detailed specifications or the drawing if you need our prairie fence. Any questions and inquiry are welcome
