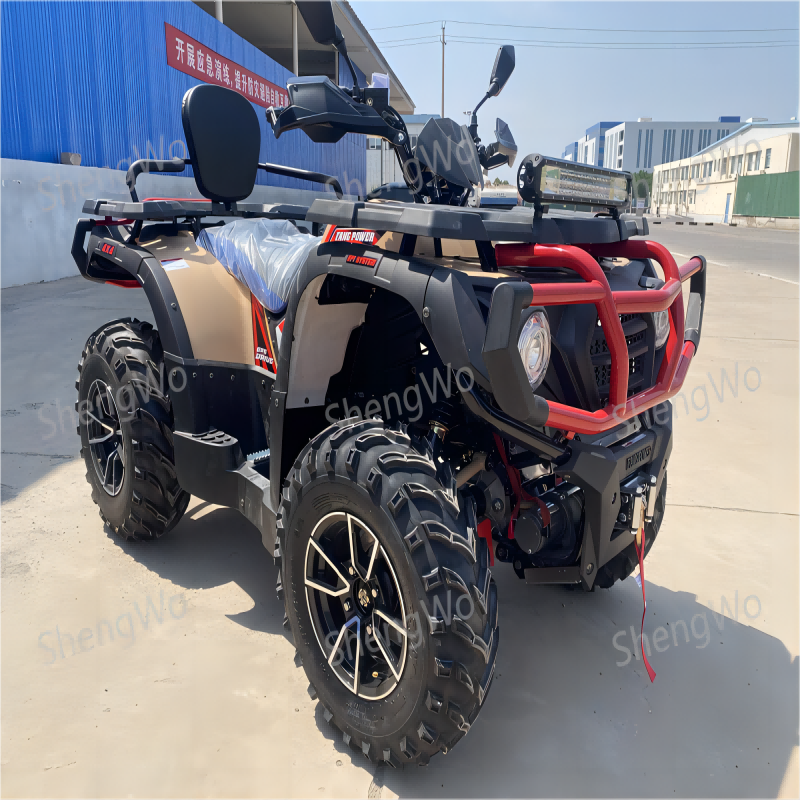

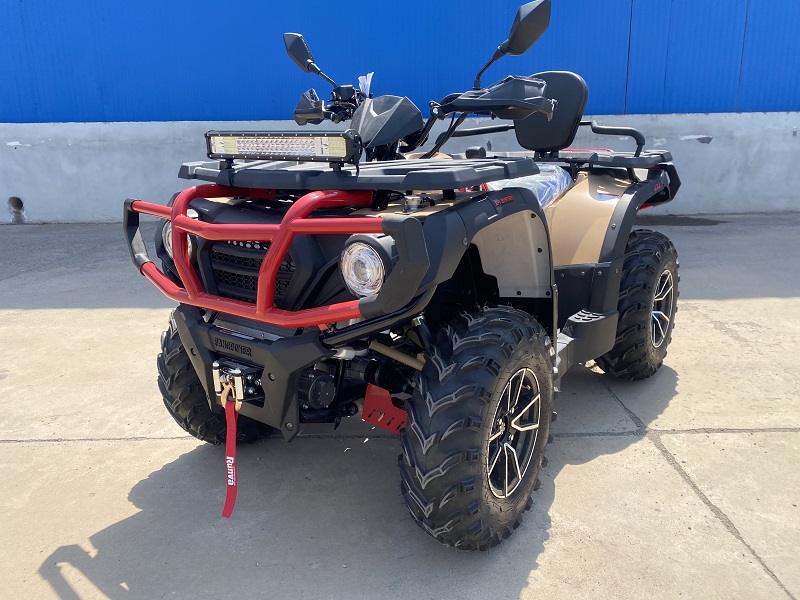

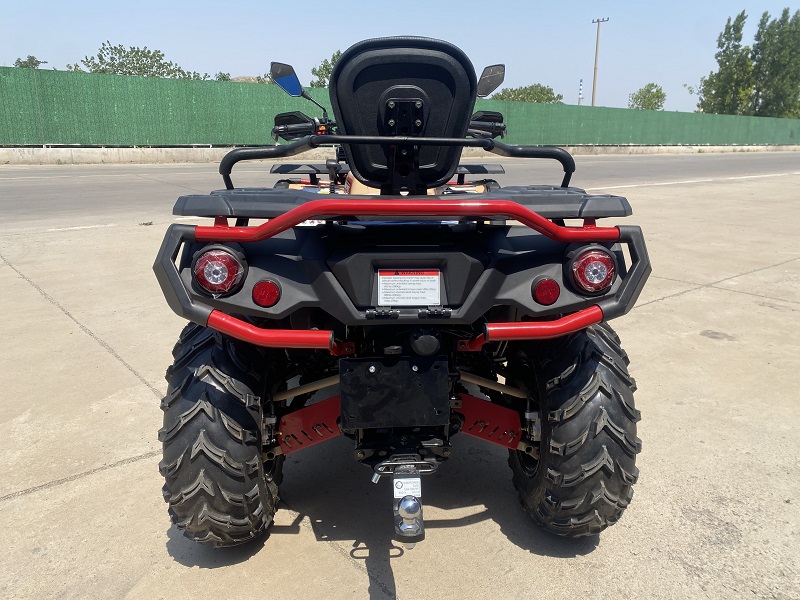

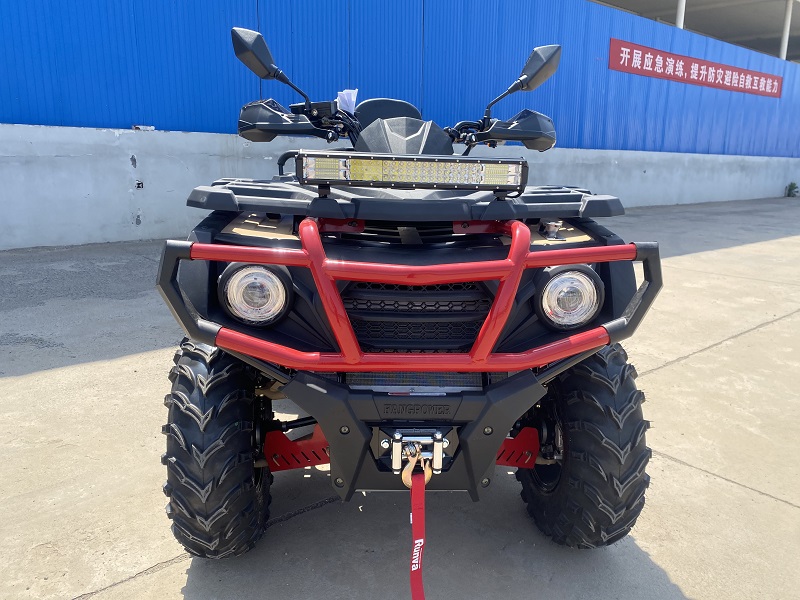

Fangpower EEC5 T3 EPS EFI 4 Wheeler 2 Seat 2WD/4WD 500 570 Gasoline Quad Bike Adults Buggy 4X4 ATV
| Supply Ability: | 10,000 Pack(s) per Month |
|---|---|
| Shipping: | 30 days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | paper package |
Quick Details
- Brand Name: Fangpower
- Transmission Type: Automatic
- Fuel: Gas / Diesel
- Certification: EEC, CE ,EPA
- Displacement: 500CC
- Model Number: SW 570
- Type: 500CC
- Horse Power: 29Kw 40HP
- Top speed: 85km/h
- Transmission: CVT+Gear shift
- Brake: 4 wheel-hydraulic disc brake
- MAX TORQUE: 44N.m
- Fule Capacity: 22L
- Driveline Type: 2X4/4x4/4x4 lock
- Final Drive: Shaft Drive
- Ground clearance: 280mm
- Suspension: Double A-arm independent suspension
Specifications
| ENGINE | |||||||
| Certification | EPA EEC5 T3 approved | ||||||
| Engine type | Single-cylinder, 4-stroke liquid-cooled, 4 valves SOHC | ||||||
| Displacement | 499cc | ||||||
| Horse Power | 29Kw(6750±500r/min) 39.4HP | ||||||
| Valve Configuration | SOHC | ||||||
| Compression ratio | 10.3: 1 | ||||||
| FUEL SYSTEM | |||||||
| Fuel Delivery System | DELPHI EFI | ||||||
| Choke System | Automatic | ||||||
| Fuel capacity | 22L (5.8 Gallon) | ||||||
| DRIVETRAIN | |||||||
| Driveline Type | 2WD/4WD/Front differential lock | ||||||
| Final Drive | Shaft-drive | ||||||
| Transmission | Constantly Variable Transmission | ||||||
| Gear shift /order | Manually/ PRNHL | ||||||
| ELECTRICAL SYSTEM | |||||||
| Forward Lights | Daytime running light,High-low beam,Turning light,Position light | ||||||
| Rear Lights | Turning light,Brake light,Position light | ||||||
| Starting system | Electric start | ||||||
| Ignition system | C.D.I | ||||||
| SUSPENSION / BRAKES | |||||||
| Suspension Front | Double A-arm independent suspension | ||||||
| Suspension Rear | Double A-arm independent suspension | ||||||
| Brakes Front | Four wheel hydraulic discs+ rear wheel parking | ||||||
| Brakes Rear | Four wheel hydraulic discs+ rear wheel parking | ||||||
| TIRES | |||||||
| Front Tread | 970mm ( 38.2 in) | ||||||
| Rear Tread | 970mm ( 38.2 in) | ||||||
| Front & Rear tire size | 25 8- 12 / 25 10- 12 | ||||||
| MISC | |||||||
| Loading information | 10 units/20; 30units/40HQ | ||||||
| Manufacturers Defect Warranty | 6 Months | ||||||
| Top speed | 85km/h | ||||||
| Dry weight | 365kg | ||||||
| Gross weight | 430kgs | ||||||
| Wheelbase | 1370 / 53.9 | ||||||
| Vehicle dimension (LWH) | 2200*1180*1270mm/86.6*46.5*50in | ||||||
| Packing size | 22701150843mm | ||||||
| Ground clearance | 280mm (11in) | ||||||
| Safety | Driver & Passenger Seat belts/ Driver and Passenger safety net restraints. | ||||||
