PCBA depanelization supplier

Specifications

YSVC-2

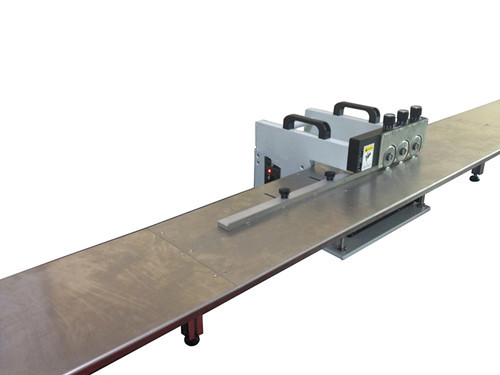

Product Introduction

Using the new gas electric light weight design, built-in SERISOR, completed no shear stress plate cutting once, The machine is especially suitable for cutting precision SMD or sheet. Without Bow waves and micro cracks which produced when using no circular knife type to cut. Using the wedge tool to cut board linearly, and minimize the shear stress , so the sensitive SMD components, and even the capacitor can be not affected, and minimize potential quality risk. Plate cutting stroke below 1MM, no operation safety concerns, cutting tool is made of high speed steel precision grinding, and can repeat grinding, also suitable for sheet metal without V-CUT board operation.

Feature

1.       Double straight knife cutting, quite suitable for separating precise SMD sheet and aluminum board.

2.       Guillotine type, and suitable for various thickness PCB, plate cutting stroke below 2mm, no operation safety concerns.

3.       The internal stress which is produced during cutting drop to below180uE, In order to avoid split, and prevent precision parts damaged.

4.       Can cut the board which the width between the V groove edge and parts is 0.3mm, height is 60mm.

5.       The cutting tool can be repeated grinding freely after wearing.

Specification
