Kt Kingtronics Recommend Crystal Oscillator QKT-OSC5032

Supply Ability:	20,000 Piece/Pieces per Month
Shipping:	by sea or by air
Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	standard export package

Specifications

Kingtronics offers high quality SMD crystal oscillator at incredibly aggressive prices.

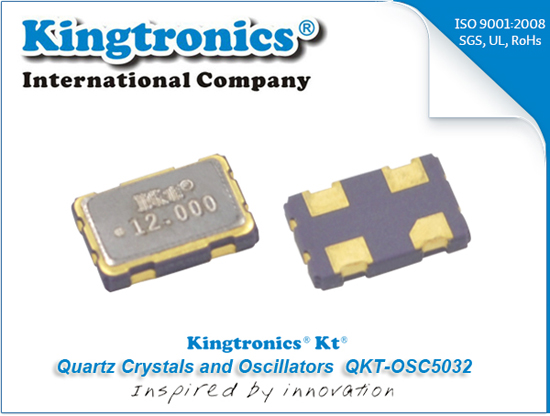

The SMD Crystal Oscillator OSC5032 series is an industry standard crystal oscillator package.

OSC5032 is a low cost, low profile timing option for applications where cost is critical.

The OSC5032 is available in tight tolerances and stabilities for demanding applications.

With a broad frequency range from 1.000MHz to 125.000 MHz, the OSC5032 can serve as a low cost solution in virtually any application or market.
The OSC5032 is available in SMD packaging only.

SPECIFICATIONS
Holder Type	5x3.2mm SMD OSCILLATOR
Frequency Range	32.768KHz, 1.000 MHz to 125.000 MHz
Frequency Stability	±20ppm to ±50ppm
Supply Voltage	5.0V or 3.3V ±10％※(See Notes)
Operating Temperature Range	-10℃ - +60℃ to -40℃ - +85℃
Storage Temperature Range	-40℃ - +85℃/-55℃ - +125℃
Symmetry(Duty Cycle)	40/60 Standard
Output Load	10 TTL or 15pF HCOMS
Current Consumption(15pf only)	1.000Mhz - 35.999Mhz=25mA max
(5.0V)	36.000Mhz - 69.999Mhz=60mA max
	70.000Mhz - 100.000Mhz=80mA max
Current Consumption(15pf only)	1.000Mhz - 35.999Mhz=20mA max
( 1.8V 2.5V 2.85V 3.3V)	36.000Mhz - 69.999Mhz=40mA max
	70.000Mhz - 125.000Mhz=60mA max
Rise/Fall Time	5 nS max
