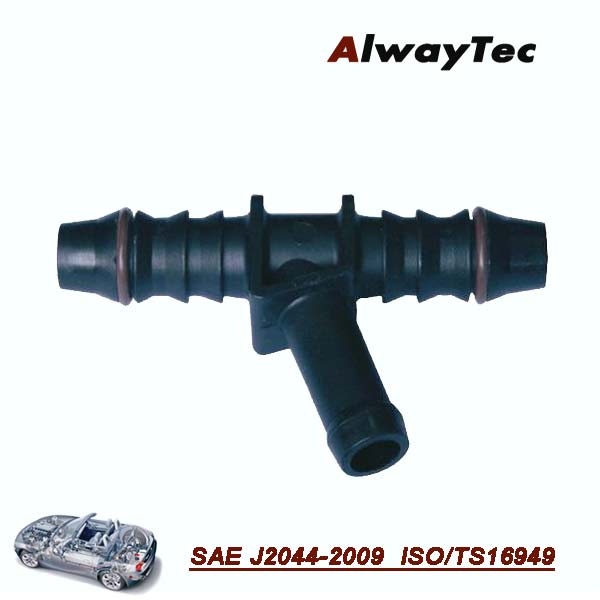

Automobile fuel hoe fittings -3 way tube connector

FOB Price:	0.10 - 5.00 USD/Piece
Supply Ability:	50,000 Piece/Pieces per Week
Shipping:	Sample within 1 days,batch within 3-15 days
Payment Terms:	L/C, D/P, T/T, Western Union, Other, PAYPAL

In Stock

Inquiry Now

Related products from verified members

17.5''4WD 80w off Road LED Light Bar, ATV,UTV,4...

Price:

Min. Order:10 Pieces
MIM Parts for Automotive Products

Price:0.70 USD/Piece

Min. Order:5000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	100 pcs/PE bag ,10 ~ 30 bags / 1 CTNS

Quick Details

Model Number: 6.3,7.89,9.49.9.89,11.8,15.82 (1/4",5/16",3/8",10mm,12mm,5/8")
Brand Name: Alwaytec
Material: plastic PA12
Type: coupling
Connection: female
body: black
button: single /double
color: gray,red,yellow,green
Fuel connector Medium: Gasoline , diesel , air , water etc..
Perform Standard: SAE J2044,TSI16949
certification: ISO9001:2008
Application: Automotive fuel hose

Specifications

Fuel line quick connector introduction

SAE Quick connector is made up of body,in O-ring,out O-ring,spacer ring, securing ring and locking spring.when a mating tube end piece inserts the connectors,as locking spring has certain elasticity,Tie clip fastener to connect two connectors together and then pull back to assure a complete connection.So that the quick connector is a diffferene.Repair removal as long as the first advance the male connector and then press the latch.At both ends of the clip button,lock expansion,you can easily pull out the connector,before reconnect ,it should be relubricate with heavy oil SAE30 for long life purpose.

Standard materials

SAE connectors are made up of body, in O-ring, out O-ring,spacer ring,securing ring and locking spring.

Body: 12 with 20 - 50% glass fiber content.

O-ring: NBR HNBR and FVMQ

Technical features

Medium

gasoline , diesel ,air ,water ,oil vapor

Operating pressure

approx. 10 bar excess pressure

Operating temperatures

-40°C up to +115°C

engine compartment:-40°C up to +115°C

short time up to +150°C

Standard:

SAE J2044,ISO/TS 16949;

Product advantages

· Fast assembly without tool -> time and cost reduction

· robot assembly possible -> automated processes

· compact building method -> employment in extremely close installation conditions possible

· integrated seal - > optimal tightness

Applications in the automotive industry

Can be used to make both line-to-line or line-to-equipment connections.

· Fuel feed / return lines

· tank breathing
· Ventilation lines
· Oil cooler lines

· Vacuum control lines
