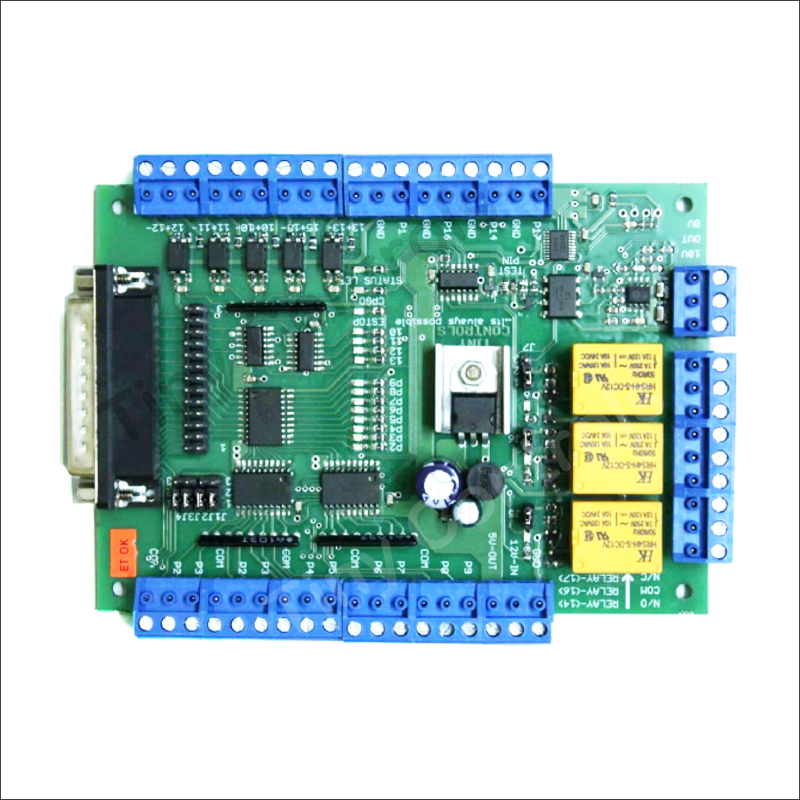

Enhanched Parallel Port Break-out Board (PP-BOB2-v1)

Inquiry Now

Quick Details

Weight: 0.50 Kg
Model Number: PP-BOB2-v1
Brand Name: Tiny Controls Pvt Ltd
Condition: New

Specifications

BREAKOUT BOARD All independent inputs, opto-isolated and fully buffered parallel port breakout board designed for controlling CNC machines from PC based controller like Mach3, Turbo CNC, EMC2, KCAM etc. Features are introduced here:

All the inputs are optoisolated, filtered and buffered for noise immunity.
All the outputs are buffered and taken out to screw terminals.
Selection of pull up or pull-down for motor outputs.
All outputs and inputs have LED indicators for easy diagnostics.
Motor output common terminal can be selected as 0v or 5v.
On board PWM to 0-10V circuit for spindle speed control from program.
DB25 as well as 26 pin FRC connectors.
FRC to DB25 cable is available as an option, allowing clean layout in control box and get DB25 connector out from control box.
On board Charge pump circuit is provided for safety.
Three on board relay provided for spindle or auxiliary on off control.
On axis (Step and Dir) signals are buffered twice and taken out to terminals enabling hardware slaving of 2 motors on one axis need for gantry style machines.
Made in India.
