in Stock Lint Free Microfiber Cleaning Swab Compatible with TX758MD

Specifications

Product Description:

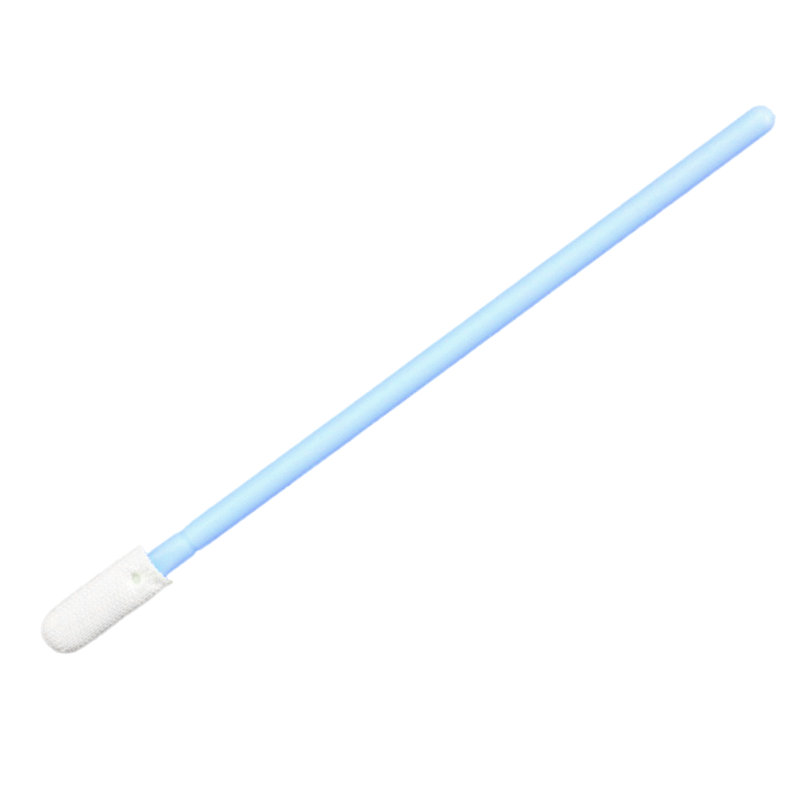

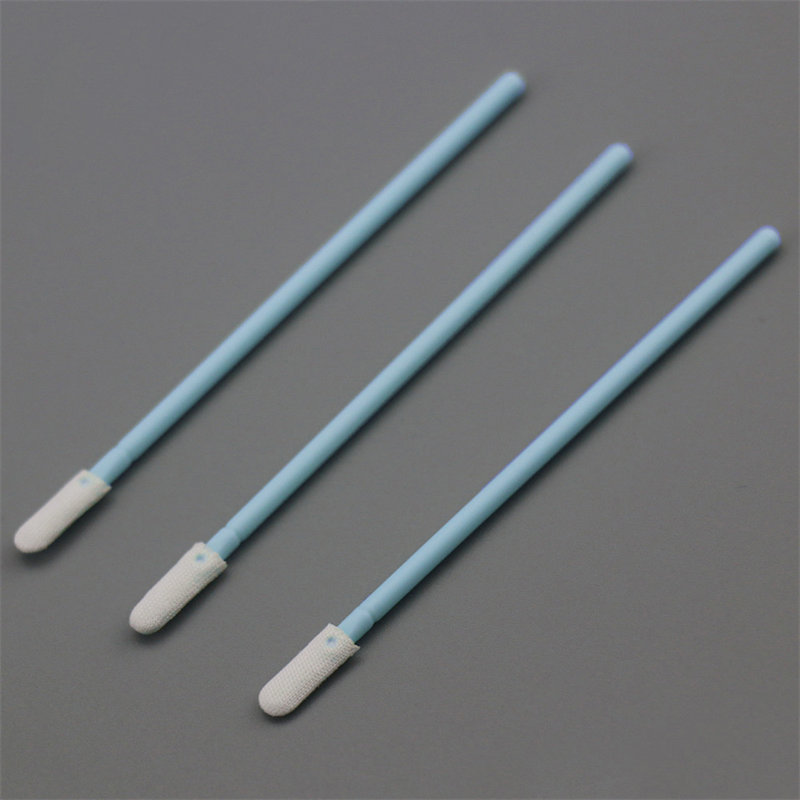

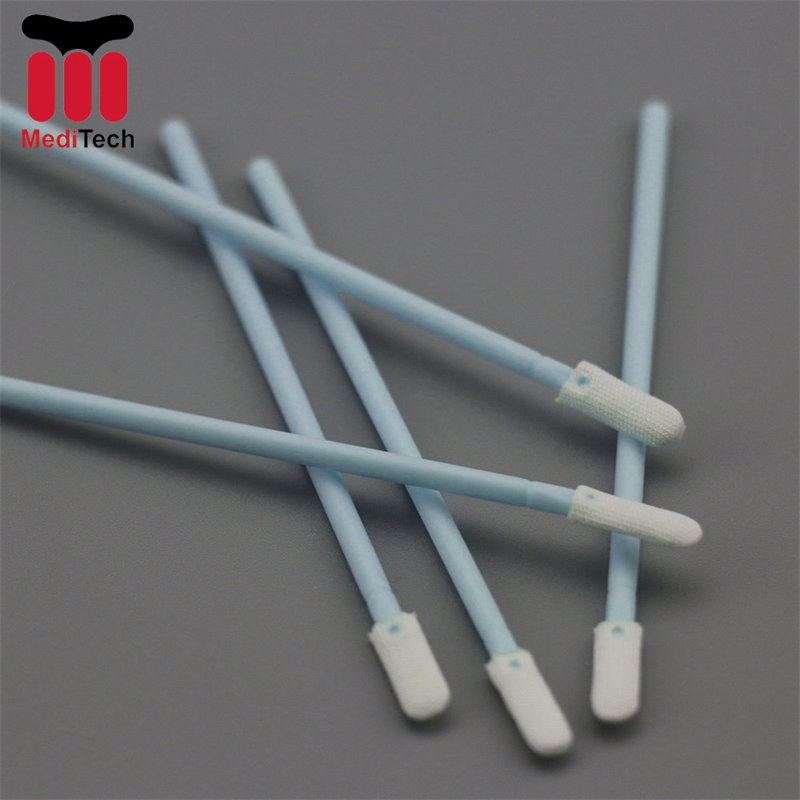

Cleanroom Microfiber Swab MS758 (Compatible with TX758MD Microfiber Swab)

Meditech's Microfiber Swab MS758 is an excellent swab for cleaning parts and assemblies in confined thin groove space where thickness height is a major Concern.

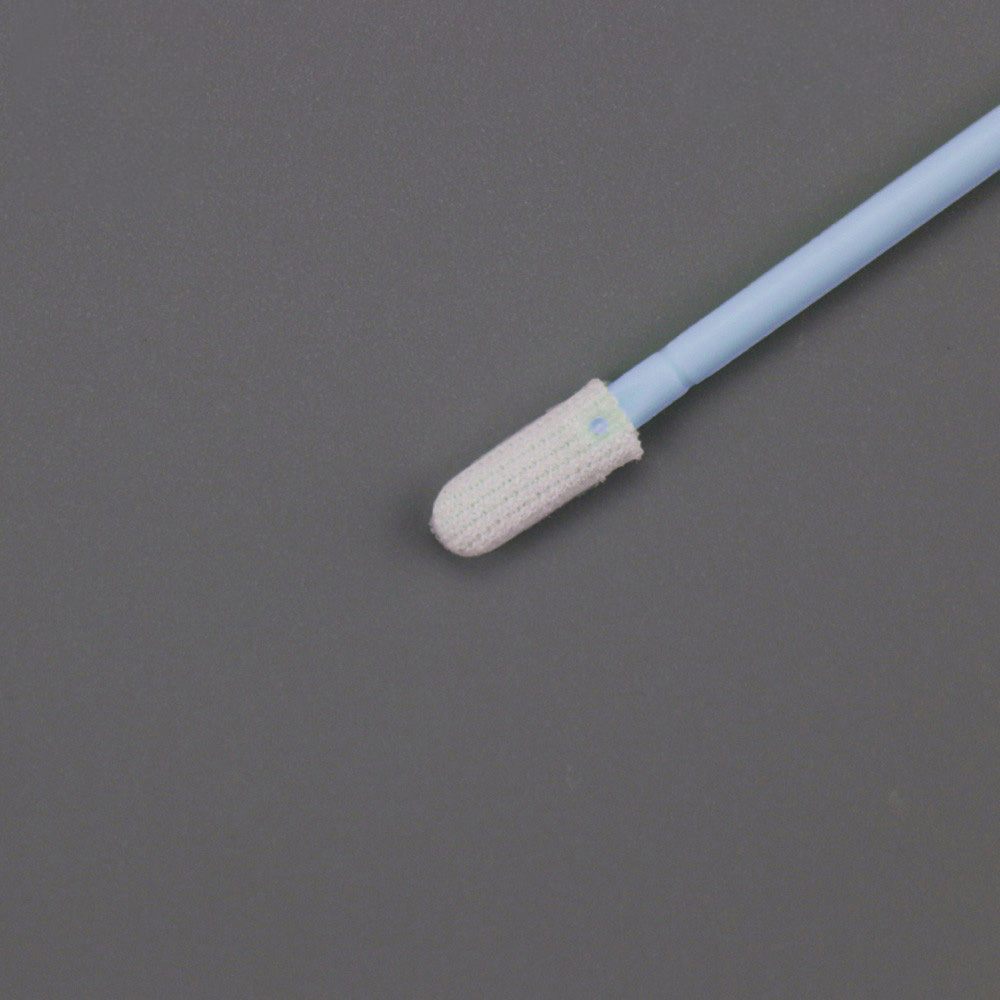

Its double layer knitted microfiber polyester head possesses high level of Cleanliness and excellent solvent resistant and is the ideal swab to use Effectively in eliminating contamination on surfaces and cleaning small slotted and grooved areas.

Microfiber Swab MS758 is free from organic contaminants such as silicone, Amide or phthalate esters. It features very low non-volatile residue (NVR), ion Content and particle generation. Microfiber Swabs MS758 is excellent for general Purpose cleaning.

Features:

- Free from silicone, amide and DOP.

- Low in particles, ion content and non-volatile residue.

- ESD safe handle ( Optional )

- Thermally bonded microfiber polyester head.

- Flexible head paddle.

- High solvent capacity, soft and non-abrasive.

- Compatible with most common solvents.

- No contaminating coatings.

- Design: Flexible head paddle with compact handle.

Applications:

- for cleaning delicate sensitive surface and pick up more sub-micronic Particles than normal polyester swabs.

- Cleaning with solvents such as IPA.

- Cleaning small and confined areas.

- Applying lubricants or other liquids.

- Remove flux residues and excess materials.

- for general purpose cleaning.

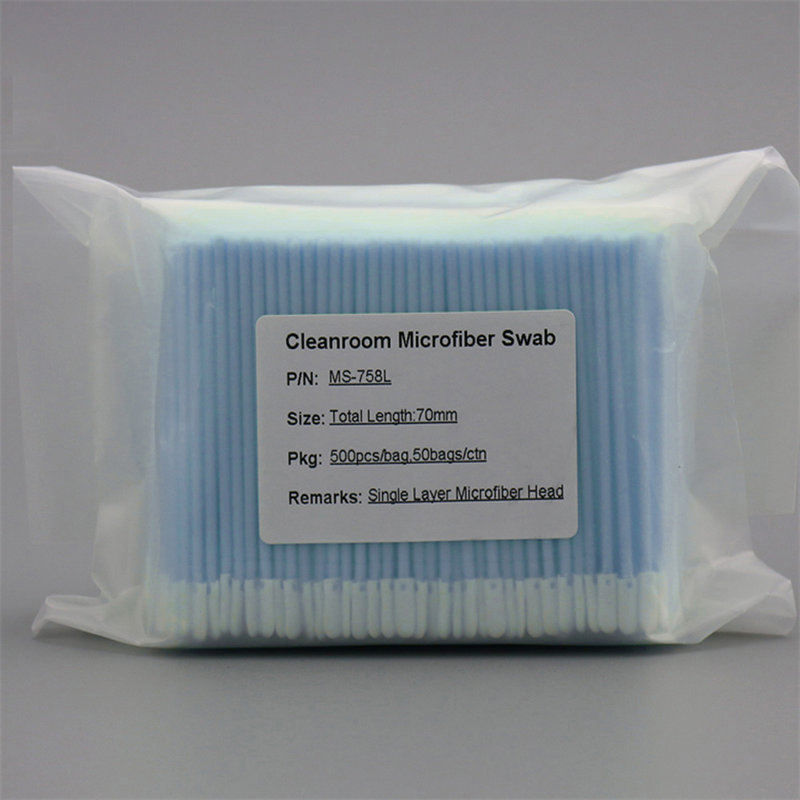

Packaging:

500 swabs / bag;

5 inner bag of 100 swabs;

100 bags /case

Specification and Application:

PHYSICAL CHARACTERISTICS

_________________________________________________________________

Property Description

_________________________________________________________________

Tip Head Microfiber Double Layer Knitted Polyester Fabric

Head Bond Thermal

Handle Material Polypropylene

HANDLE SPECIFICATION DATA

_________________________________________________________________

Part No.Head WidthHead ThicknessHead LengthHandle WidthHandle ThicknessHandle LengthTotal Swab Length

MS7583 mm2.5 mm10 mm2.2 mm2.2 mm60 mm70 mm

(0.118")(0.098")(0.394")(0.087")(0.087")(2.362")(2.756")

CONTAMINATION CHARACTERISTICS

_________________________________________________________________

Particles, Readily releasable

Particles > 0.5 um < 25000 counts/swab

_________________________________________________________________

Non-volatile Residue

DI Water < 0.15 mg/swab

IPA < 0.40 mg/swab

Ion Content

Chloride < 0.90 ug/swab

Sulphate < 0.40 ug/swab

Total Anions < 1.30 ug/swab

_________________________________________________________________

Organic Contamination

No detectable silicone, amide or DOP.

ESD CHARACTERISTICS ( Optional for MS758E)

_________________________________________________________________

Handle Resistivity 1010 8-9 Ohms/Sq
