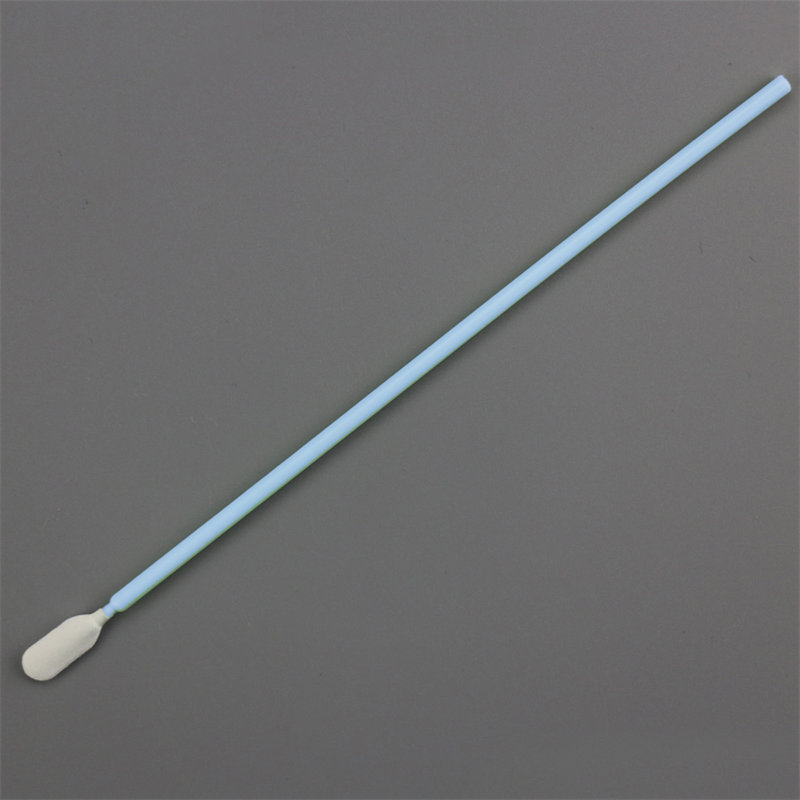

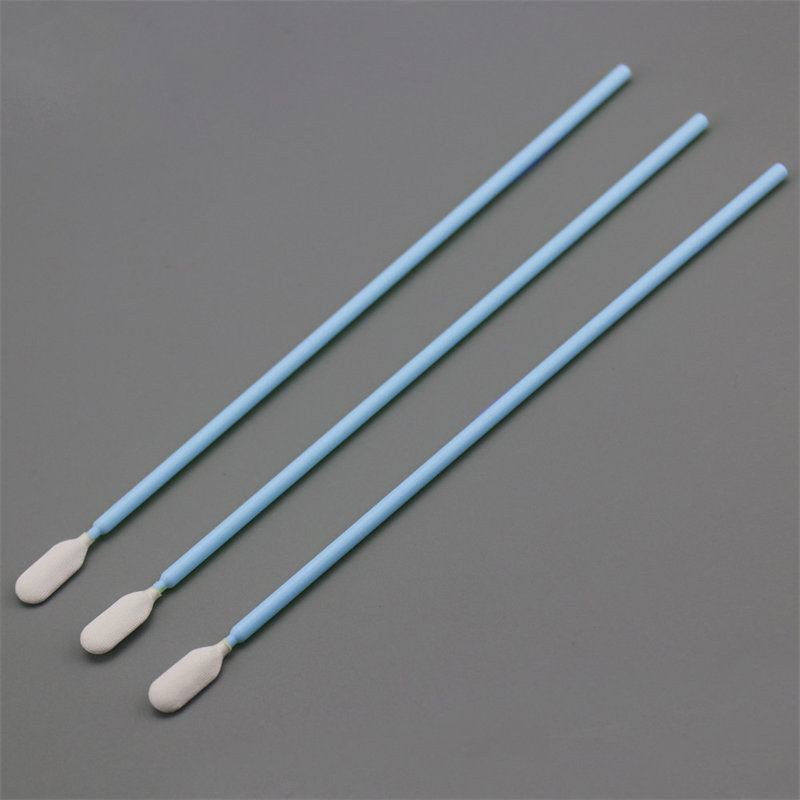

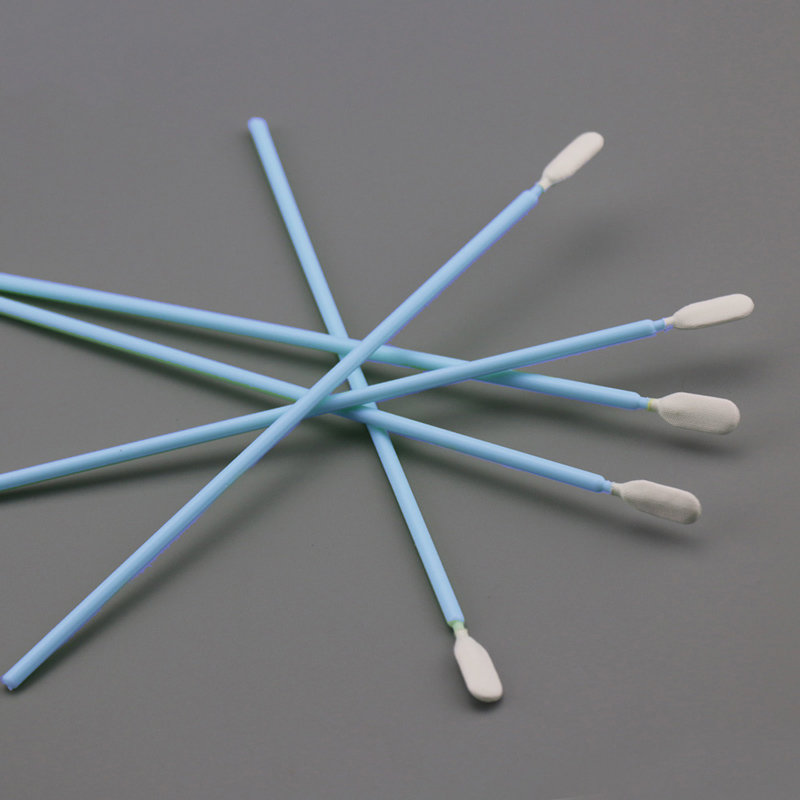

Round Tipped Cleanroom Microfiber Cleaning Swab with Long Handle

Specifications

Cleanroom Microfiber Swab MS761 (Compatible with TX761MD)

Medium Microfiber Swab with flexible internal paddle head long handle

Description:

Meditech's Medium Microfiber Swab MS761 features flexible internal paddle Head with long handle providing good support and cushion.

Its double layer knitted microfiber polyester head possesses high level of Cleanliness and excellent solvent resistant and is the ideal swab to use to Effectively in eliminating contamination on surfaces and hard to reach Areas.

Medium Microfiber Swab MS761 is free from organic contaminants such as Silicone, amide and phthalate esters.

It features very low non-volatile residue (NVR), ion content and particle Generation.

It is recommended for surface sampling and cleaning validation.

Its cleanliness levels provide a neutral background forthe sample obtained. this swab is an ideal choice for controlledcleaning and sampling of large Areas

this swab can replace typicallong-handled cotton swabs in applications Requiring superiorcleanliness.

Features:

- Free from silicone, amide and DOP.

- Low in particles, ion content and non-volatile residue.

- ESD safe handle ( Optional )

- Thermally bonded microfiber polyester head.

- Soft and non-abrasive tip.

- Compatible with most common solvents.

- Design: Flexible head paddle with long handle

- Available in 3.4" Handle for Economic Cost Saving.

Applications:

- for cleaning delicate sensitive surface and pick up more sub-micronic Particles than normal polyester swabs.

- Cleaning with solvents such as IPA.

- Cleaning surfaces and hard to reach areas.

- Applying lubricants or other liquids

- Remove flux residues and excess materials.

- for general purpose cleaning.

Packaging:

500 swabs / bag;

5 inner bags of 100 swabs;

30 bags /case

Specification and Application

Cleanroom Microfiber Swab MS761

PHYSICAL CHARACTERISTICS

_________________________________________________________________

Property Description

_________________________________________________________________

Tip Head Microfiber Double Layer Knitted Polyester Fabric

Head Bond Thermal

Handle Material Polypropylene

HANDLE SPECIFICATION DATA

_________________________________________________________________

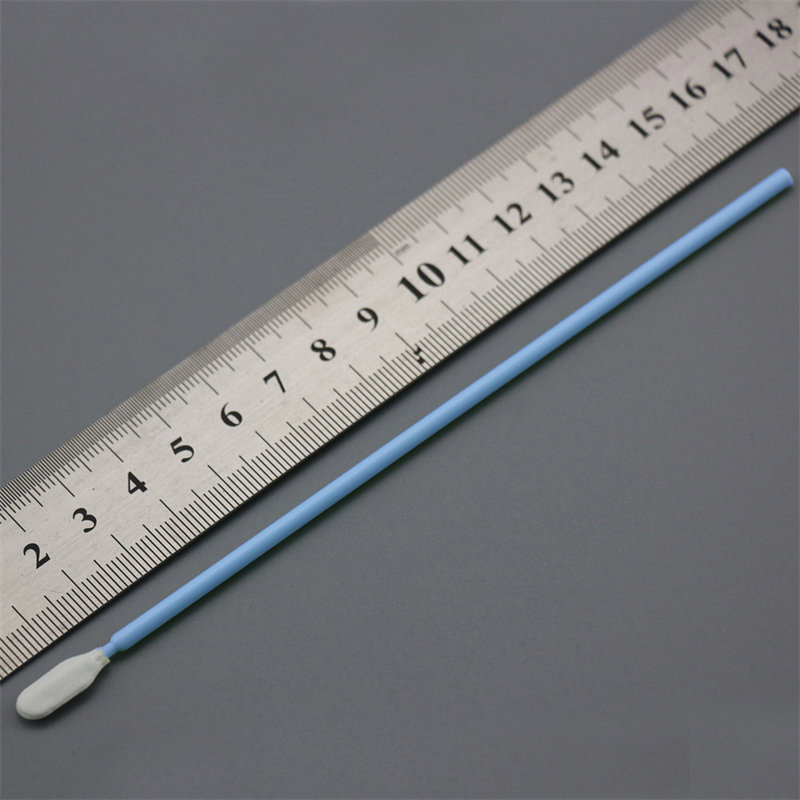

Part No.Head WidthHead ThicknessHead LengthHandle WidthHandle ThicknessHandle LengthTotal Swab Length

MS7617 mm2.8 mm16.8 mm3.2 mm3.2 mm145.5 mm162.3 mm

(0.276")(0.110")(0.661")(0.126")(0.126")(5.728")(6.390")

CONTAMINATION CHARACTERISTICS

_________________________________________________________________

Particles, Readily releasable

Particles > 0.5 um < 25000 counts/swab

_________________________________________________________________

Non-volatile Residue

DI Water < 0.15 mg/swab

IPA < 0.40 mg/swab

Ion Content

Chloride < 0.90 ug/swab

Sulphate < 0.40 ug/swab

Total Anions < 1.30 ug/swab

_________________________________________________________________

Organic Contamination

No detectable silicone, amide or DOP.

ESD CHARACTERISTICS ( Optional for MS761E)

________________________________________________
