marine disc type mooring towing hook
Supply Ability: | 60 Set/Sets per Month |
---|---|
Payment Terms: | L/C, T/T |
Related products from verified members
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|---|
Packaging Details: | in pallet or plywood case |
Specifications
Marine towing hook is a device that enables ships to be towed safely under severe working conditions and allows the
towing line to be released whether slack or under full safe working load. It can facilitate the disengagement of the towing
line to ensure the safety of the ship and personnel.
The hook can be released manually or from the wheel house by pulling the release wire or by pushing a button. Remote
control systems can be supplied with either a hydraulic or pneumatic release mechanism. The quick release marine towing
hook allows line to be instantaneously disengaged.
Certificate: ABS, BV, CCS, CR, DNV, GL, KR, LR, NK, RINA and RS ,etc.
Packaging : in pallet or plywood case.
Delivery time :30-50 days after confirmation.

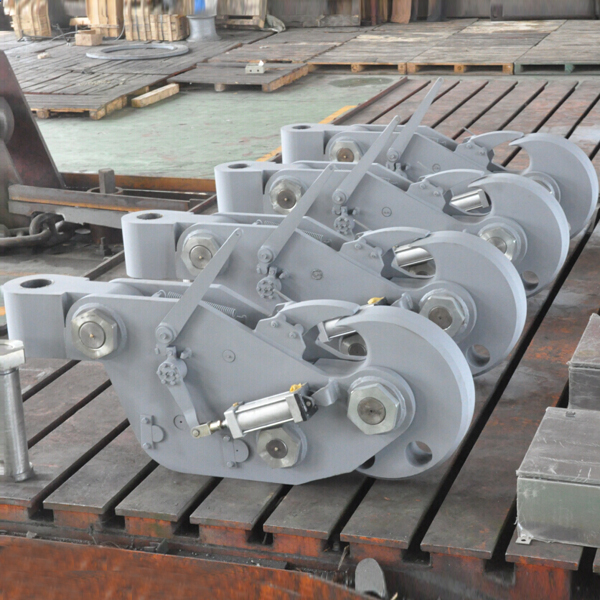

Pneumatic Disc Towing Hook
Product NO. | SWL (Kn) | Test Load (kN) | Release Load (Kn) | Weight(Kg) | A | B | C | D | E | F | G | H | K | L | M | N | O | P |
YSPD-007 | 70 | 140 | 70 | 79 | 512 | 712 | 185 | 235 | 100 | 45 | 280 | 291 | 65 | 125 | 60 | 112 | 97 | 260 |
YSPD-008 | 150 | 300 | 150 | 174 | 670 | 905 | 255 | 325 | 140 | 60 | 340 | 377 | 100 | 250 | 65 | 144 | 106 | 284 |
YSPD-009 | 250 | 500 | 250 | 414 | 923 | 1238 | 355 | 445 | 180 | 80 | 470 | 491 | 130 | 200 | 81 | 186 | 124 | 427 |
YSPD-010 | 450 | 900 | 450 | 534 | 973 | 1323 | 355 | 455 | 200 | 100 | 470 | 190 | 130 | 200 | 115 | 218 | 158 | 462 |
YSPD-011 | 650 | 1300 | 650 | 918 | 1173 | 1598 | 454 | 464 | 220 | 110 | 600 | 608 | 162 | 250 | 125 | 256 | 173 | 487 |
YSPD-012 | 1000 | 1500 | 1000 | 1282 | 1068 | 1750 | 492 | 632 | 280 | 135 | 650 | 668 | 176 | 290 | 135 | 288 | 182 | 530 |
