Chongqing Ccme Marine Equipment Co., Ltd.
China Manufacturer with main products: Marine Anchor Anchor Chains, Capstans, Manhole Cover, Cable, Electric Equipments, Pipe Fittings, Chock, Fairlead |

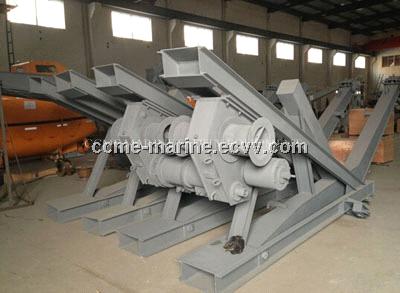

Luffing arm life boat gravity davit
| FOB Price: | 1,000.00 USD/Piece |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Standard packaging |
Quick Details
- Brand Name: CCME
Specifications
The davit conforms to the requirment of the amendments to SOLAS 1996----MSC.47(66), International LSA Code MSC.48(66),IMO Resolution MSC81(70) and MSC.216(82), MSC.218(82) and MSC.226(82);
The davit is a single arm slewing type davit and it would be slewed by accoumulator or manual pump driven in case of power failure.
The boat is lowered by means of remote control, that the crew can release and stop the hand brake of the winch from inside of the boat via wire connection to the brake arm and wire spool on the winch. Alternatively the crew can operate the hand brake on the deck.
There is the fastening unit at the head and end of the lifeboat for fastening the boat and avoiding the life boat swaging on
the wave.
| Name | Unit | HH-SA21 | CM-SA21-A | CM-SA25 | CM-SA30 | CM-SA35 |
| S.W.L | KN | 21 | 21 | 25 | 30 | 35 |
| Hoisting load | KN | 14 | 21 | 25 | 30 | 21 |
| Slewing load | KN | 14 | 21 | 25 | 30 | 21 |
| Slewing Radius | M | 3.5~7.5 | 4.0~5.0 | 4.0~5.0 | 4.0~5.8 | 4.0~4.5 |
| Capacity of drum | M | 35 | 35 | 35 | 35 | 35 |
| Totally weight | KG | ~2800 | ~2800 | ~3200 | ~3300 | ~3350 |
