SUNWAY LIGHT (HONGKONG) CO., LIMITED
China Manufacturer with main products: LED Downlight, LED Strip, LED Panel Light, LED Tube, LED Bulb, LED Flood Light, LED Ceiling Light, LED Par Light |
11th

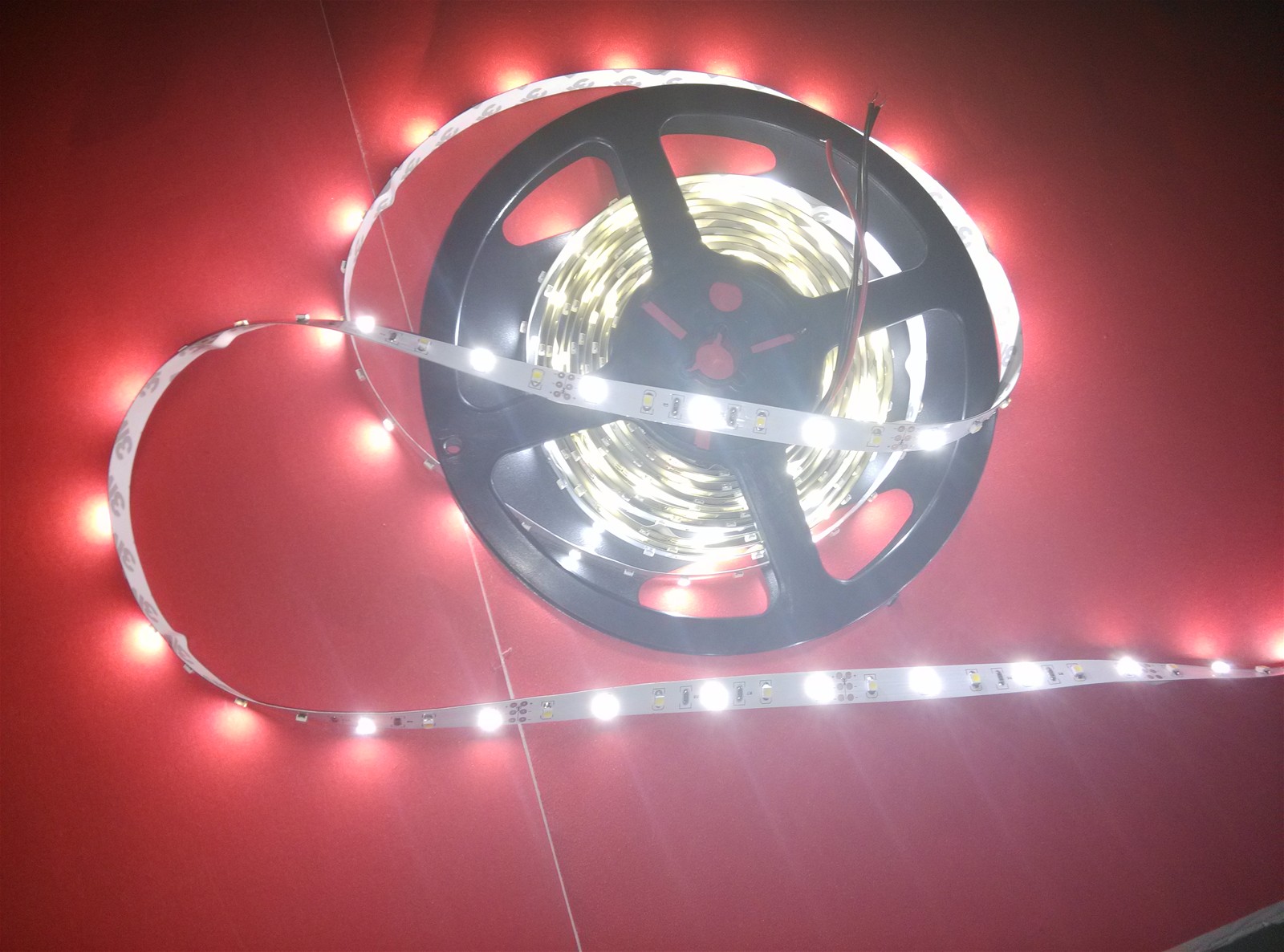

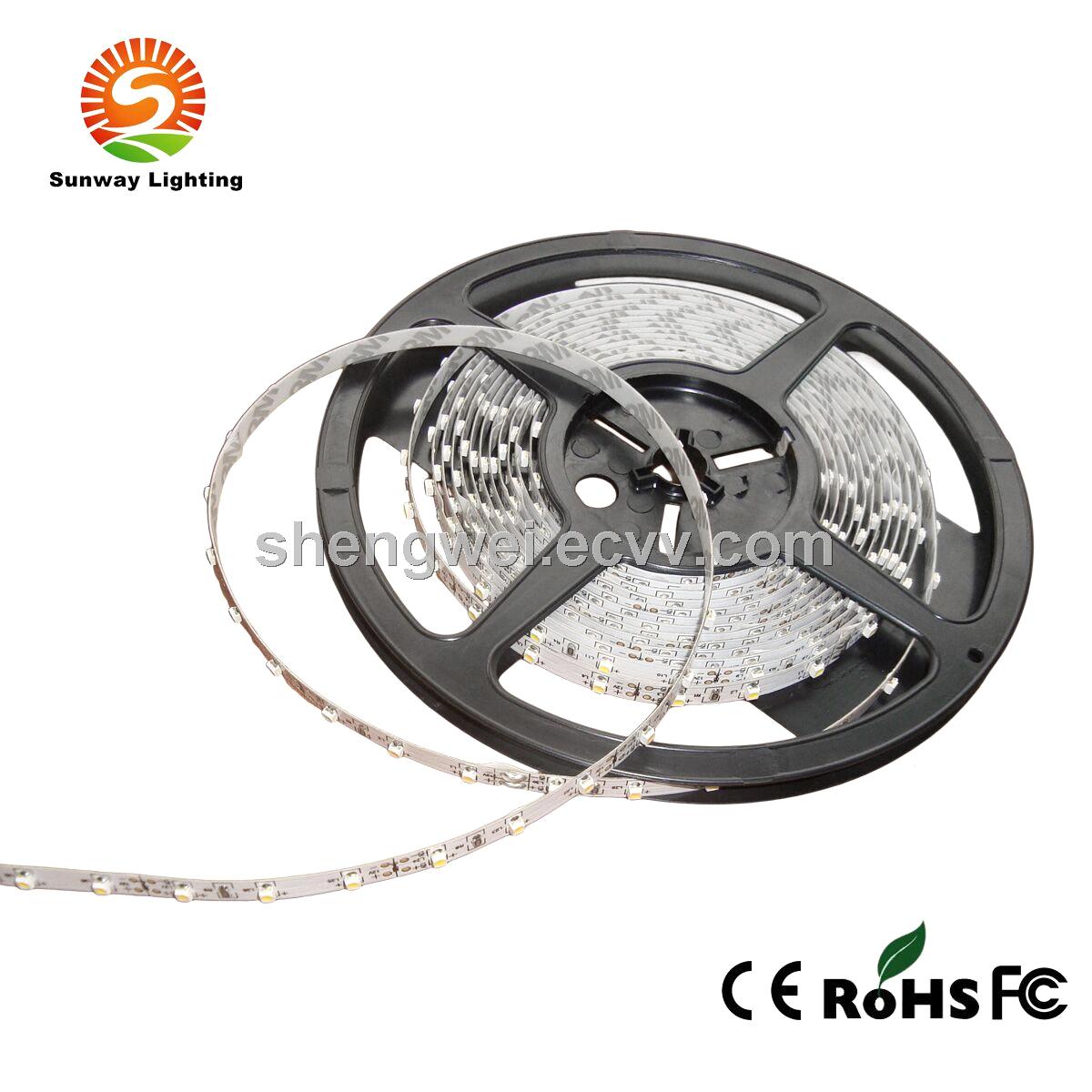

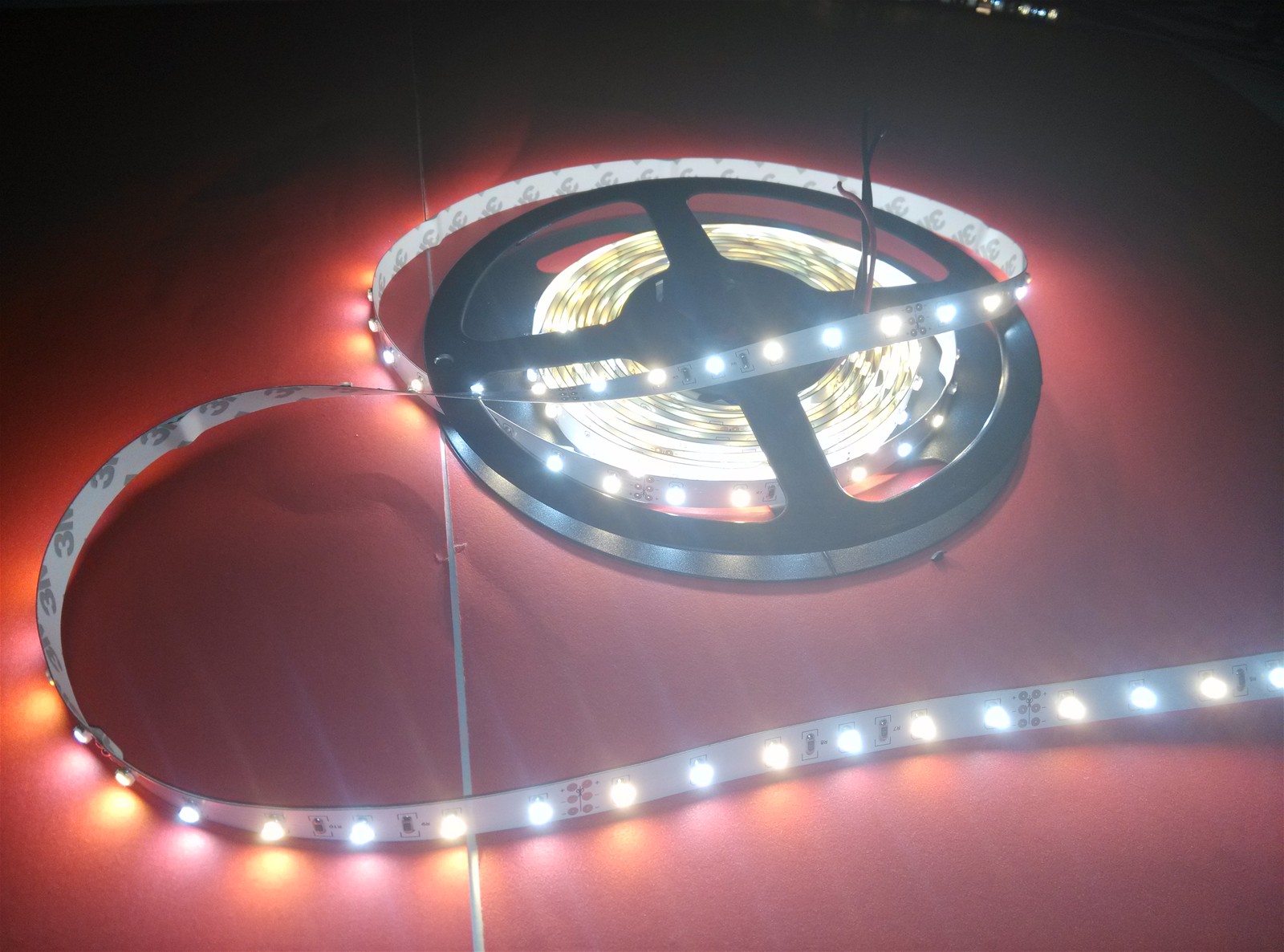

SMD 3528 LED Flex Strip 12VDC Non-waterproof
| FOB Price: | 7.50 - 10.00 USD/Roll |
|---|---|
| Supply Ability: | 9,999 Roll/Rolls per Week |
| Shipping: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 50rolls per carton |
Quick Details
- Item Type: Light Strips
- Light Source: LED
- Model Number: SW-12-150-3528
- Brand Name: Shengwei
- Emitting Color: Warm White
- Certification: C-tick,CCC,CE,EMC,Energy Star,ETL,FCC,GS,LVD,PSE,RoHS,SAA,UL
- Lamp Body Material: Bronze
- Working Lifetime(Hour): 50000
- Color Temperature(CCT): 2800-3200K
- CRI (Ra>): 85
- Lamp Luminous Flux(lm): 6-8Lm
- Lamp Power: 2.4W/m
- Input Voltage(V): 12VDC
- Type: Flex LED Strips
- LED Light Source: 3528SMD
- FPC Color: White
- FPC Width: 8mm
- CCT Warm White: 2800-3200K
- CCT Daylight White: 4000-4500K
- CCT Nature White: 5500-6000K
- CCT Cool White: 6000-6500K
- Cuttable Length: 10cm/cut
- Antistatic Packing: 5M/roll/bag
- LED Brand: Epistar
- More Emitting Color: R, G, B, Pink, Orange, Purple, Ice Blue.
Specifications
Shengwei LED Strip
LED strip is also named LED ribbion, LED flexible strip, LED rope and LED strip light. Shengwei's strips are made of high electric conductivity FPC and Epistar LEDs.
Normally FPC has 3 different finishing surface colors which are white, copper yellow and black.
There are different dimensions of LEDs we are using for strips, 3528SMD, 3014SMD, 2835SMD, 5050SMD, 335SMD, 5630SMD and 5730SMD.
For temperature of white emitting color, there are regular specification stocked 2800-3200K, 4000-4500K, 5500-6000K, 6000-6500K. Besides there are irregular CCT for your wide options 1800-2000K, 2000-2200K, 8000-9000K, 9000-10000K, 10000-12000K, 12000-15000K, 15000-20000K. Off course we have more colorful LEDs for your indoor and outdoor application, red, greed, blue, orange, yellow, ice blue, purple, pink and RGB.
Usually these trips work with 12VDC or 24VDC voltage. You just need to have one 100VAC-240VAC input voltage and 12VDC or 24VDC output voltage power transformer.
Sunway's strips are more and more popular in the world. We always bring surprise to every new customer with enjoy colorful LED worlds!
Advantage
1- Besides led light up the environment, it changes the atmosphere and make the scene more charming.
2- The flexible led strip can be bend as your will to design more sculpt and emotional sentiment.
3- The led light use 12V low voltage, and the voltage is stable. Not only saving the electricity, but also extending its working life.
4- Compare with the same power lamp, led light's heating power is much lower while its luminous is higher.
5- Made of non-prisonous materials, led light is environmentally friendlly and it can be recovered.
Application
Scene Illumination: Create a brilliant illumination, contrast the scene effect, or simply offer the necessary lighting
1)Building outline wall decoration
2)Advertising lighting
3)Stage, channel and passageway sign lighting
4)City lighting project
Mood Illumination: Meet the spiritual need of people, provide dynamic light, create an artistic conception
1)Housing decoration
2)Park, theater, bar, cabin and tower lighting
3)Holiday decoration
4)Background light, concealed lighting
5)Car decoration
Linking Operations
This kind of led light is SMD5050 60led, it's 14.4W/m and add to 72W/roll.
You can use the iron supply to ensure two or three strips at the same time or just to support the longer strip. We need an ex iron supply whose power is suitable for your demand, and a wire with plug in an end, and in the other end the rubber of the wire should be cut off, with copper wire exposed, also a phillips screwdriver.
First, use the screwdriver to loosen the screw, then put the exposed copper wire in it. Second, tight the screw and lay down the yellow cover. Watch out that the single wire should be connected with the L and N screws, and the wires of the strips can be connected with each of the -V or +V screws while obeying the rules that black wire to the -V and red wire to the +V.
Package
After the final check, the led light would be rolled in the reel per 5 meters. Usually economy led strip will be rolled in the 9.1 inches reel, if you want the other reel, please let us know. Then it will be put in the static bag with moisture beads, and label color, QC passed and the neutral label.
50 rolls per carton. The marks could be printed on the box or pasted with scotch tape. The size of carton is 445*310*260mm. We will pave two layers of expand aple poly ephylene on the top and bottom which will protect the products well.
Details of Shengwei LED Strip Light
Model
sw-12-150-3528
LED Type
SMD3528
LED Quantity
30 led per meter
LED Chip
Silver wire+iron electrodes
LED brightness
6~8lm per led
PCB
Printed wiring board,width 8mm
Back tape
3M 9080A
Light color
1,800-20,000K
Volt/watt
12V/2.4W
Input cable
AGW20
Protection
IP20
Weight
0.1Kg per roll
MOQ
50m
Warranty
1 year
Absolute Maximum Rating at TA=25°C
Parameter
Symbol
Absolute Maximum Rating
Unit
Forward Current
IF
600
mA/m
Power Dissipation
PD
2.4
W/m
Electrostatic discharge
ESD
800
V
Operating Temperature
Topr
-25~+60
°C
Storage Temperature
Tstg
-40~+80
°C
Electrical / Optical Characteristics at TA=25°C
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage DC
VF
IF=600mA
---
12
---
V
Dominant Wavelength
λD
IF=600mA
---
---
---
nm
Color Temperature
Tc
IF=600mA
---
---
---
K
50% Power Angle
2θ 1 / 2
IF=600mA
---
120
---
deg
Strip Instruction
- Please read the instructions carefully before installation, and keep it for future reference.
- Please wear an antistatic wrist strap before strips touched by fingers.
- Try your best do not touch the surface of LEDs.
- Don't light strips up when they are in package.
- Be sure the device is completely connected into the earth before connecting power suppliers with strips.
- Please pay attention to fire prevention, electricity and vibration.
- Please replace any cracked waterproof protective cover.
- orrosive or solubility chemicals will cause damage of the protective shell of lights
- Lifespan will be opposited affected if beyond working temperature -25oC~60oC.
- Do not use rough objects or cleaner to wipe down products.
- Do not use sharp objects to scratch products.
- Do not use high-pressure water to wash products as it will damage the waterproof parts of strip housing.
- Do not bend from side, extrusion, screw it, because there will damage internal components.
- Do not pull or break it with excessive force to cause damage.
- Please recycling the product seriously after it reach its using lifespan. You also can get some advice from the local retailer.
- Please don't use strips if it damages, and check regularly to see if there is a problem about wire insulation.
- The product need professional person to install and maintain it.
