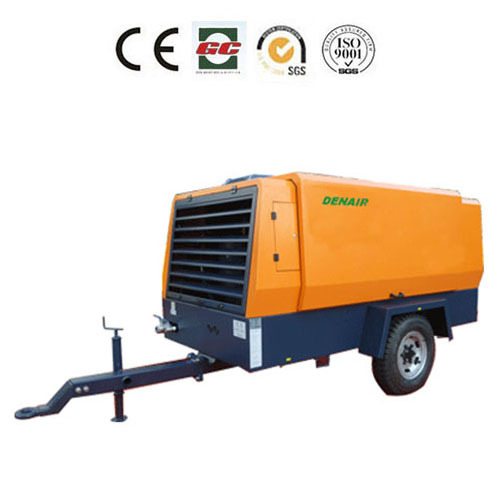

DACY-11/10 Portable Twin Screw Air Compressor

FOB Price:	8,000.00 - 10,000.00 USD/Unit
Supply Ability:	100 Unit/Units per Month
Shipping:	7 Working days after order confirmed
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Caterpillar

Price:

Min. Order:
LYW400 High Pressure Air Compressor for Fire Fi...

Price:1.00-2,999.00 USD/Set

Min. Order:1 Set
Unical Air Compressor

Price:

Min. Order:
PSA Nitrogen purify unit

Price:

Min. Order:

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	diesel air compressor packing : 1,outside package: standard export cases 2, Inner package stretch fi

Quick Details

Model			DACY-11/10
Cooling system			Wind cooled
Compressor	Temperature/℃		＜32℃
	Pressure/MPa		0.1033
	Altitude/M		＜1000
Working pressure/MPa			1.0
Air delivery[m3/min)]			11.0
Air End		Compression stage	Single stage compression
		Rotor material	SAE1141(Special carbon steel)
		Gear type	The 3rd generation type α asymmetric gear(Gear ratio 5:6)
		Power method	Coupling direct driven/Diesel driven
		Oil-gas tank capacity/L	90
		Lube capacity/L	50
		Safety valve pressure(Mpa)	1.1
		Lube class	46
Engine		Model	YC6B150Z-K20
		Manufacturer	Yuchai
		Type	Water-cooled Four-stroke/Direct injection
		Cylinder No.	6
		Cylinder diameter/MM	108
		Stroke range/MM	125
		Rated power/KW	110
		Rated rotation speed/RPM	2200
		Non-load speed/RPM	1400
		Lube capacity/L	20
		Cooling water capacity/L	45
		Battery	135
		Oil-gas tank capacity/L	125
All Unit		Length/MM	2800
		Width/MM	1910
		Height/MM	1600
		Net weight/Kg	2050
		Exhaust size/MM	G 1" G 1-1/2 "
