Home >Products Catalog > LED Module > AC110V/220V high brightness LED module strip light IP68 water proof

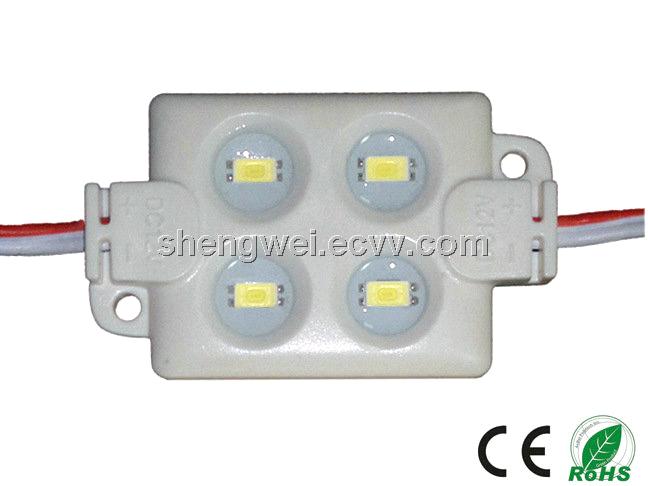

AC110V/220V high brightness LED module strip light IP68 water proof

FOB Price:	0.19 - 5.52 USD/Piece
Supply Ability:	1,000 Piece/Pieces per Day
Shipping:	5-7 days after payment
Payment Terms:	T/T, Western Union, Other, paypal

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	100pcs/ctn

Quick Details

Type: LED Modules
Certification: CE,RoHS
Brand Name: Sunway
Color Temperature: 2700-10000K
Color Rendering Index(Ra): 80
Viewing Angle(°): 120
Power Dissipation: 1.44W
Power: 1.44W
Luminous Flux(lm): 60
Model Number: SW-ML50503L
led source: Epistar 5050
warranty: 5years

Specifications

(1). Constant Current Module
(2). 3 LED/Module, 0.72W/PC. Material: ABS, NOT PC.
(3). Size:68*19 mm.
(4). Epistar SMD5050 LED
(5). Warranty: 5 years
(6). Certificate: UL, TUV, CE, RoHS

3LED/pc 5050 LED Module/ LED Light/ LED Moule Light
SMD LED Module/ LED Module/ LED Sign Module/ LED Module Light/ High Power LED/ LED Light/ LED Lighting/ LED Module Lamp/ Modulos LED

1)Dimension(Unit:mm):

2.) Connection Diagram(Unit:mm)

3) Package Dimension(Unit:mm):

4) Feature:

1. Waterproof: IP67
2. SMD5050 LED as lighting source
3.98% transmittance lens,
4. Injection molding process
5. Constant Current Technology (CCT)
6. The exposed Aluminum plate for heat dissipation
7. Energy saving, Long life span

5) Application:

1. Channel letter lighting
2. Commercial standing lighting
3. Letter background lighting
4. Light box lighting
5. Logo lighting
6. Line/shape lighting

No.	Item	Parameter
1	SMD Type	SMD 5050
2	Power(Single module)	0.72W(Max)
3	Brightness	22-24 LM/SMD
4	Max number(PCS)	20(MAX)
5	IP Level	IP67
6	Cover color & material	ABS
7	Drive mode	Constant Voltage Drive
8	Working temperature	-20~+40oC
9	Stock temperature	-40~+60oC
10	Life-span	5year/50000H
11	Weight(single module)	11±0.5g
