hydraulic winch hoisting winch drilling rig hydraulic winch crane winch

FOB Price:	1,000.00 - 3,000.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	7 days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Manual Winch 2

Price:

Min. Order:
marine hydraulic mooring winch

Price:500.00-6,000.00 USD/Piece

Min. Order:1 Piece
Marine Electric/Hydraulic Anchoring Windlass&a...

Price:2,000.00-6,000.00 USD/Set

Min. Order:1 Set
12 ton double drum hydraulic winches

Price:500.00-3,000.00 USD/Set

Min. Order:1 Set
off Road 12000lbs 12V Electric Winch

Price:300.00 USD/Set

Min. Order:1 Set
CW Series Open Winch

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	case

Quick Details

Capacity: 1-100 ton
Application: Cranes
Power Source: Hydraulic
Model Number: AF series
Brand Name: kemercathy
Pull force: 1-100 ton
Rope speed: `0-200m/min
Dimension: custom built
Contact: Cathy

Specifications

China real manufacturer of hydraulic winch

We are a manufacturer with more than 15 years history, ISO9001: 2008 Quality Management Certificate, we provide a one year warranty and whole life technical service.

The winch widely applied to all type of hydraulic crane, drilling machine, rammer compactor, piledriver, and so on.

our winch advantage

1) our hydraulic winch directly manufactured by ourself, technical solution and price are our main advantage

2) Single rope towering force ranging from 1 Ton-60 Tons.

3)We can design according to the customer's requirement.

4)hydraulic winch consist of valve block, hydraulic motor, brake, planetary Gearbox, drum, supporting parts and clutch.

5)They're widely used in construction equipment, mining industry, deck Machinery and track crane, etc.

6)Compact design, easy to install.

7)Reliable operation with little noise.

8)Stable operation in inflammable, explosive, wet, damp and other extreme Demanding working environments.

9)Low maintenance, less anxiety.

hydraulic winch manufacturer, hydraulic winches, hoisting winch, marine winch, drilling rig winch, crane winch, power winch, hydraulic operated winch, dredger winch

hydraulic winch manufacturer 1-60 ton

We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.

We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.

The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.

Now we are stepping into the international market, our products are being exported to Germany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.

Specification of hydraulic winch:

1. Pull force of 1st layer: 1-60 ton

2. Rope speed: 0-200m/min

3. Option for the winch with groove or without groove

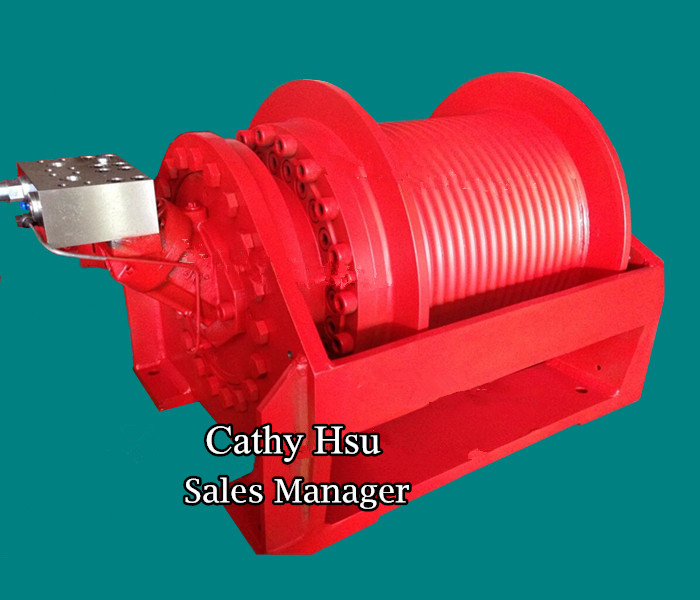

For the winch in the picture, it is our AF series hydraulic winch, which is widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery. It is the best choice for those situations which requires large power, high speed and high security.

Special Features:

1.Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.

2.Normally closed friction type brake, high braking torque, safe and reliable operating.

3.Small volume, compact structure and high transmission efficiency.

4.Axial fixed or variable hydraulic motor with long life operating.

5.Mounting frame is available on request.

6.Balance valve, shuttle valve, limit switch and other accessories are also available on request.

For the folowing specification in the table, it is for your reference. We can also manufacture the winch with pull force up to 60,000kgs based on your requirements.

hydraulic winch manufacturer 1-60 ton

We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.

We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.

The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.

Now we are stepping into the international market, our products are being exported to Germany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.

Specification of hydraulic winch:

1. Pull force of 1st layer: 1-60 ton

2. Rope speed: 0-200m/min

3. Option for the winch with groove or without groove

For the winch in the picture, it is our AF series hydraulic winch, which is widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery. It is the best choice for those situations which requires large power, high speed and high security.

Special Features:

1.Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.

2.Normally closed friction type brake, high braking torque, safe and reliable operating.

3.Small volume, compact structure and high transmission efficiency.

4.Axial fixed or variable hydraulic motor with long life operating.

5.Mounting frame is available on request.

6.Balance valve, shuttle valve, limit switch and other accessories are also available on request.

For the folowing specification in the table, it is for your reference. We can also manufacture the winch with pull force up to 60,000kgs based on your requirements.

Model	Pull Force (KN)		Rope Speed (m/min)	Diameter of rope (mm)	Capacity of rope (m)	Working pressures diff. (Mpa)	Flow Rate (L/min)
Model	1st layer	toplayer	Rope Speed (m/min)	Diameter of rope (mm)	Capacity of rope (m)	Working pressures diff. (Mpa)	Flow Rate (L/min)
AF5700	5700	4500	60	16	107	25	160
AF7700	7700	6000	52	18	118	25	180
AF9600	9600	7500	43	20	118	25	180
AF12800	12800	9800	43	24	118	27	220
AF15000	15000	12800	39	24	110	25	220
AF18500	18500	14600	85.3	28	162	27	380
AF25000	25000	19500	48.1	30	162	27	380
AF30000	30000	23000	32	32	169	30	380
AF45000	45000	34700	32	42	169	30	380
