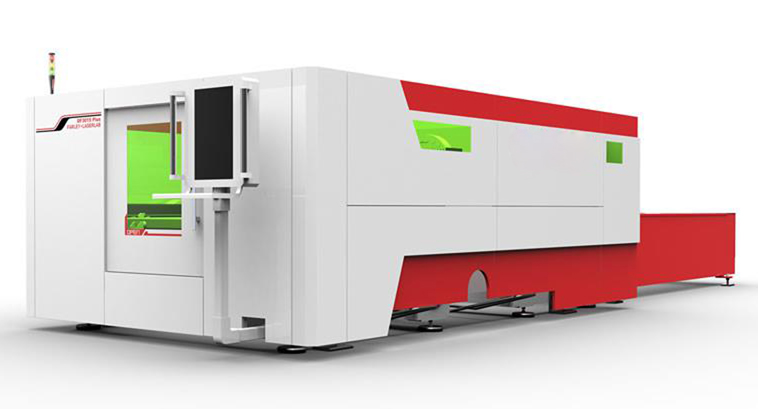

carbon/stainless steel plate fiber laser cutting machine price

FOB Price:	40,000.00 - 200,000.00 USD/Set
Supply Ability:	20 Set/Sets per Month
Shipping:	25 days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	standard export case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: ISO9001,CE
Weight: upon actual model
Dimension(L*W*H): upon actual model
Rated Power: upon actual model
Voltage: 380 w
Model Number: JQG series
Brand Name: cutek
Condition: New

Specifications

carbon/stainless steel plate fiber laser cutting machine price
Features:
1.gantry structure, double side rack and pinion driving system,stable and high speed,positioning speed can be up to 150m/min.
2.German BECKHOFF control system and IPG fiber laser source,advanced functon.big cutting capacity and excellent working performance.
3.Quick-response surface monitor and Automatic edge-detecting function
4.Re-trace mode when power off, operator is allowed to return to previous mode
5.High-speed responses of laser power slope adjusting to ensure cutting quality of the corner point
6.Line/circle complement and kerfs compensate function
7.Fly-piercing function for thin plates,greatly improving working efficiency
Technical Parameter:

Model of the Machine		GF3015 Fiber laser cutting machine
Processing Area		3000×1500 mm
Laser Source Power		2000W
Focus Length of the Laser Beam		200mm
Operation System		Windows XP(English &Chinese)
Display Screen		24 inch LCD with mouse interface
Interface		USB, RJ45
Maximum Processing Ability CS		≥10mm
Maximum Processing Ability SS		≥5mm
X axis	Fast-moving Speed	150m/min
	Stroke	3000mm
	Positioning Accuracy	0.05mm
	Repeatability	0.025mm
Y axis	Fast-moving Speed	150m/min
	Stroke	1500mm
	Positioning Accuracy	0.05mm
	Repeatability	0.025mm
Z axis	Stroke	150mm
