Hangzhou Zhongyuan Machinery Factory
China Manufacturer with main products: Roll Forming Machine, Corrugated Sheets Machine, Box Profile Sheets Machine, Tile Effect Sheet Machine, Cee Purlins Machine, Steel Deck... |

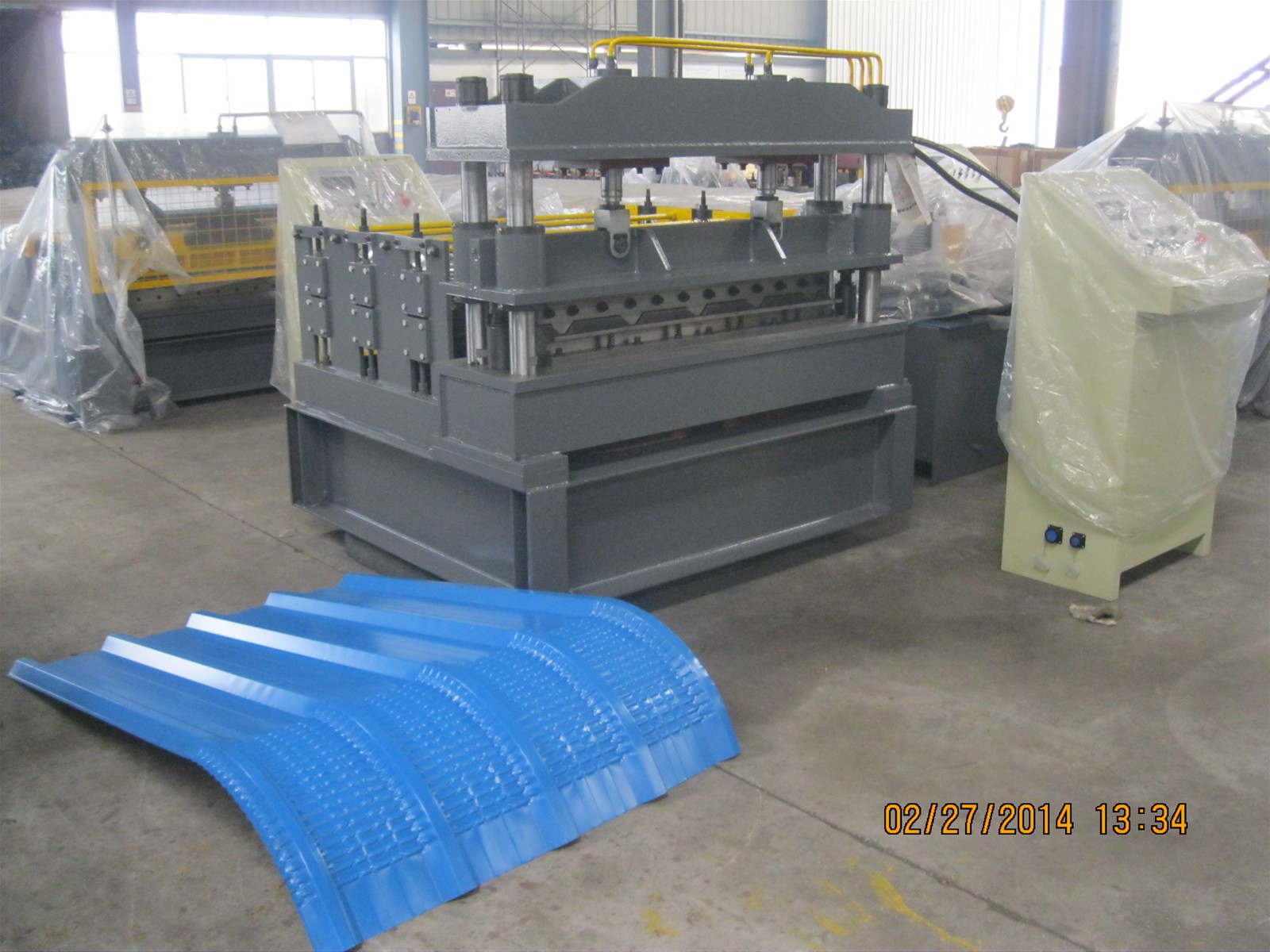

Curved cladding sheets making machine
| FOB Price: | 19,500.00 - 22,500.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | Ningbo |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: zhongyuan
- feeding rollers: 3
- roller material: No.45 steel plated with hard chrome
- Crimping length: min.25 mm
- Crimping times: about 10times /minute
- curving blade material: Cr12 with quenched treatment
Specifications
Curved cladding sheets making machine
Suitable material: C×0.3～0.7 mm thickness (C is the width of corrugated sheet produced by roll forming machine)
Main machine motor power: about 2.2kW (Depend on final design)
Hydraulic motor power: about 5.5kW
Adopts post curving, Stop to curve
Outside size: 1600mm×1600mm×1750mm (length×width×height)
The final product can be curve as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to curving the product automatically. Finish this action, machine will run again continuously.
