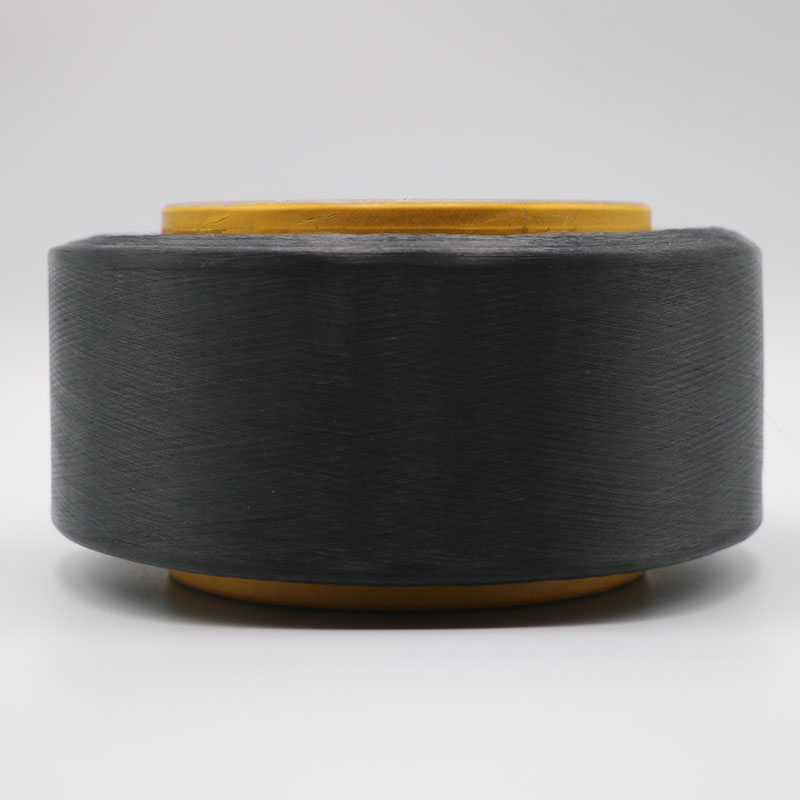

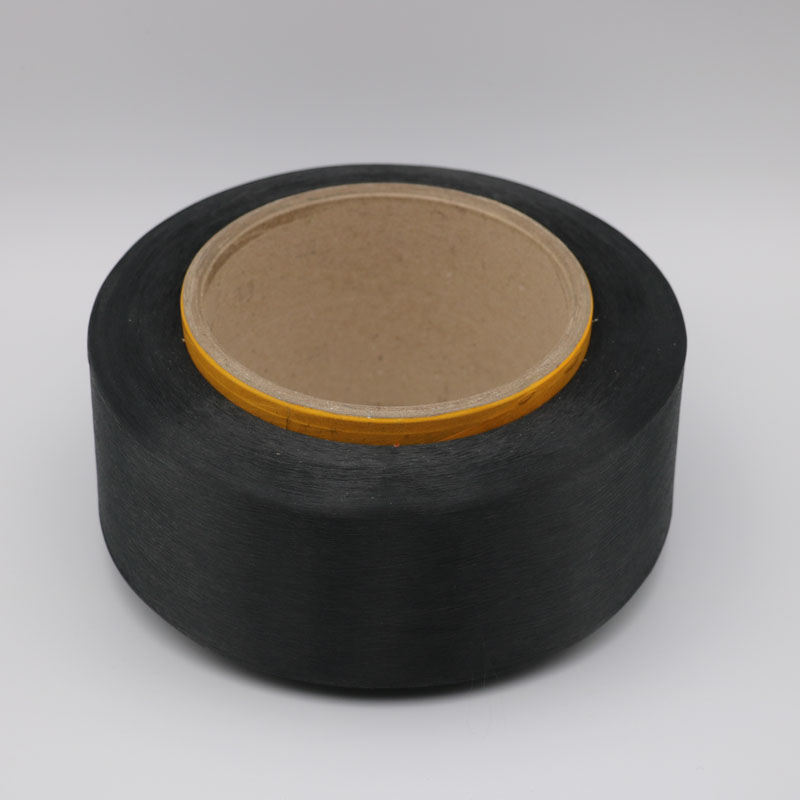

Conductive Carbon Inside Black Polyester Fiber Filaments 20D/4F for Anti-Static Fabric/Garment/ESD Gloves--XTAA192
| Supply Ability: | 3,000 Kilogram(s) per Month |
|---|---|
| Shipping: | By sea, by general air transportation, by DHL/TNT/UPS/FedEx express |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | For example, if net weitht 1000kg, Need 63 cartons(5 pallets) Gross weight: 1540kg. Total volume: 7.34 CBM. Dimensions for carton: 32cm*42cm*80cm |
Quick Details
- Product Type: Other Yarn
- Brand Name: Yestar
- Use: Embroidery,Hand Knitting,Knitting,Sewing,Weaving
- Feature: Anti-Bacteria,Anti-Static,conductive
- Yarn Type: Filament
- Product Type: 100%PL
- Model Number: XTAA192
- Pattern: Raw
- Style: Solid
- Grade: Vrigin
- Fineness: 20D
- Fiber length: continuous
- Surface resistance: 10^6ohm
- color: black
Specifications
Conductive carbon inside light grey polyester fiber filaments ESD gloves 20D/3F ESD fabrics

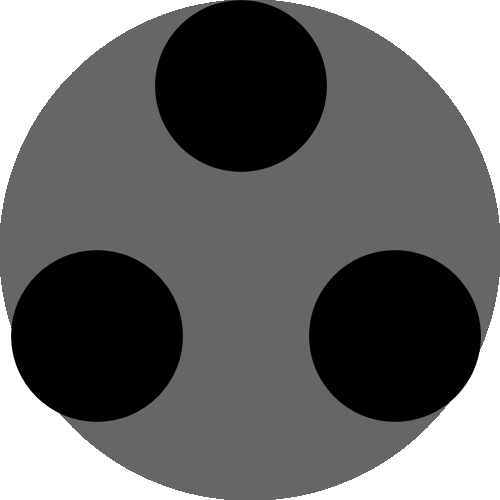

A) cross section: three dots type.
B) conductive materials: carbon grains.

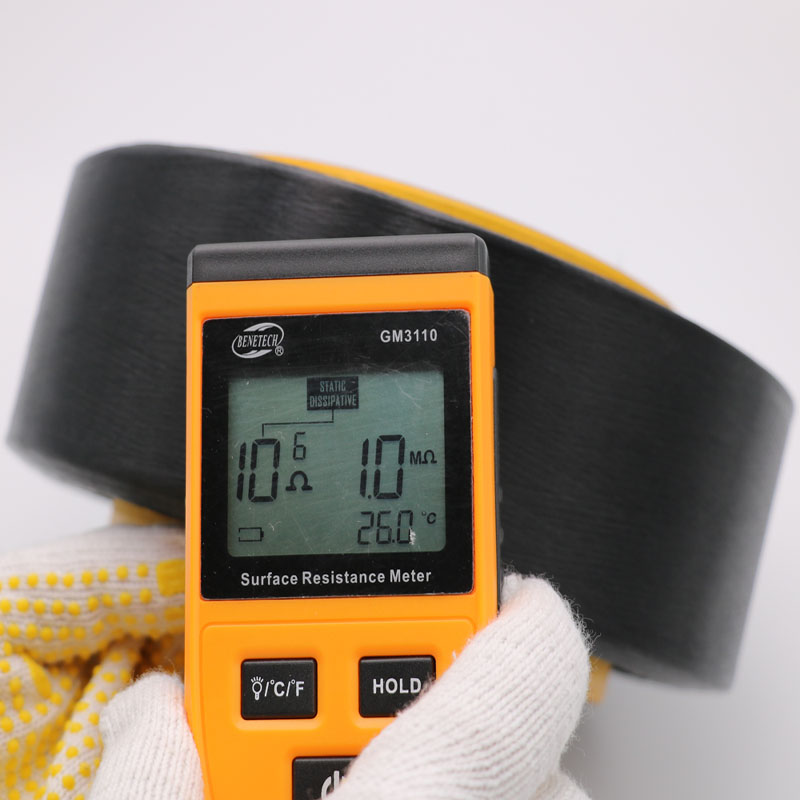

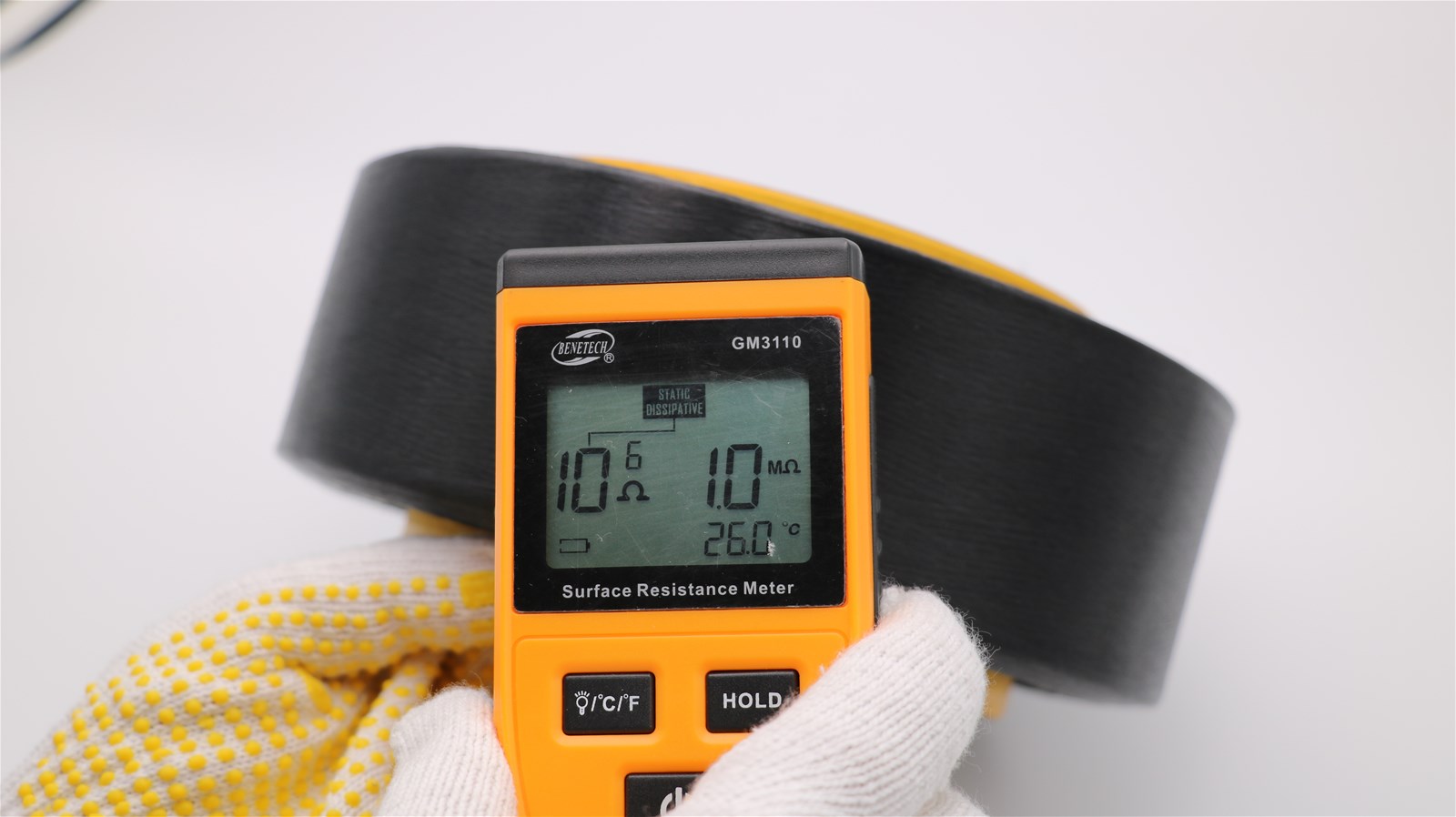

C) surface resistance: 10^6 ohm.
D) thickness: 20D
E) filament(s):3F
Also could supply 20D/3F, 20D/4F, 35D/6F, 40D/3F, 40D/6F, 100D/12F, etc.
| Denier/Filament(s) | Based Materials | Conductive grains | Color | Surface resistance |
| 20D/1F | Nylon 6 | Carbon | Black | 10^4~10^5 ohm |
| 20D/3F | Nylon 6 | Carbon | Black | 10^4~10^5 ohm |
| 40D/3F | Nylon 6 | Carbon | Black | 10^4~10^5 ohm |
| 40D/6F | Nylon 6 | Carbon | Black | 10^4~10^5 ohm |
| 20D/3F | Nylon 6 | Metal oxide | White | 10^8 ohm |
| 20D/3F | Nylon 6 | Carbon | Black | 10^5~10^6 ohm |
| 20D/4F | Polyester | Carbon | Black | 10^6 ~ 10^7 ohm |
| 50D/8F | Polyester | Carton | Black | 10^6 ~ 10^7 ohm |
| 20D/3F | Polyester | Carbon | Light grey | 10^6 ohm |
| 35D/6F | Nylon | Carbon | Black | 10^6 ohm |
Application:
Embeded this conductive filaments into the fabric of anti-static work wear and cleanroom garments by regular grd/stripe , this fabric could electro static discharge.
* Dustless fabric
* linings of top grade suit
* Anti-static kniting gloves
* Anti-static fabrics
* Anti-static single yarn drill and ply-yarn drill
* Anti-static filter felt.
Packaging & Shipping
500-800grams/bobbin, is not even net weight.
16 or 24 bobbins/carton
Could ship by international express or by general air transportation or by sea.
Our Services
If less than 100kg, could send out within 7 days approx.
If more than 1000kg, could finish them within 26 days approx..
Company Information
We produced this types of products more than 15 years, it is best-selling goods in EU, Turkey, India, USA, Argentina, Brazil, etc.
FAQ
a) If export to Turkey, could supply Exporter Registry Form and Certificate of origin?
Yes, we exported this products to Turkey more than 10 years, very familiar with Turkey's market.
