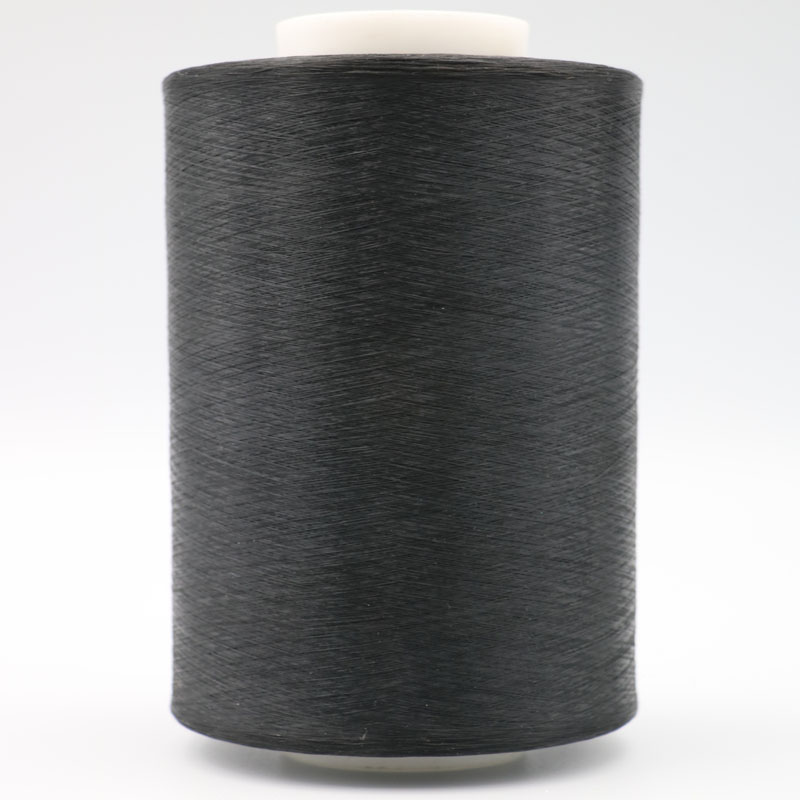

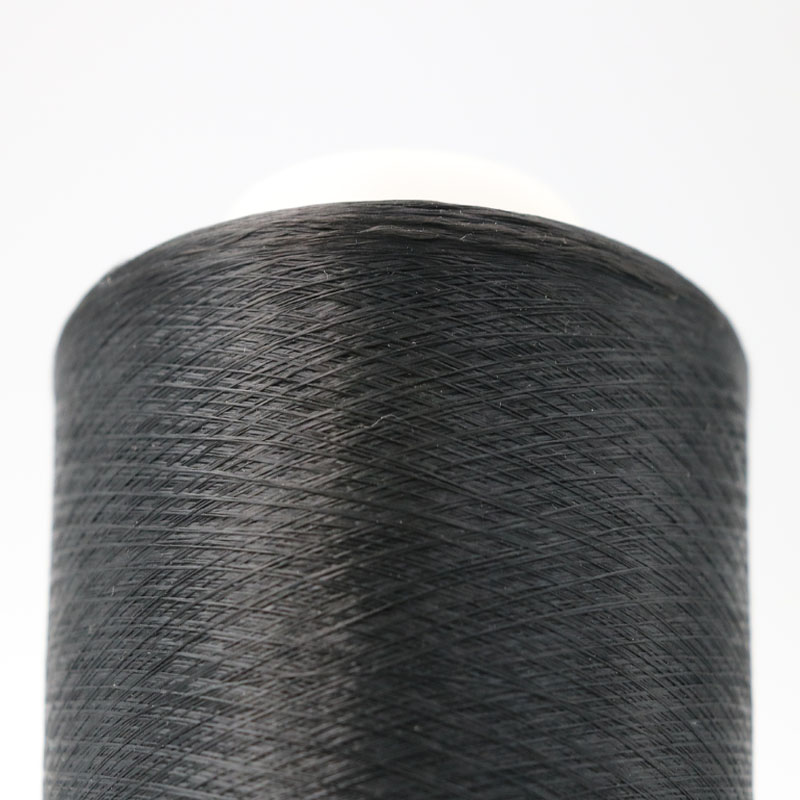

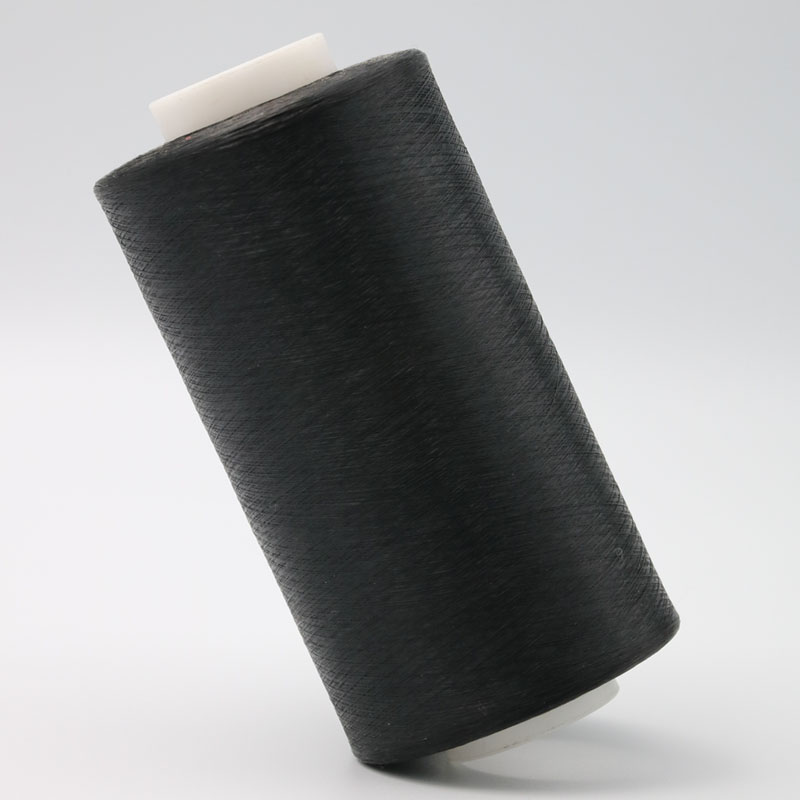

Carbon Fiber Conductive Nylon Filament 20D/3F Intermingling with 75D Black FDY PL Filament for ESD Workwear XTAA184
| Supply Ability: | 5,000 Kilogram(s) per Month |
|---|---|
| Shipping: | FOB Shanghai,by sea, by general air transporation, by DHL/TNT/UPS/FedEX |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | 18 bobbins/carton, net weight 36kg/carton, gross weight: 40kg/carton, dimension: 56cm*56cm*38cm |
Quick Details
- Product Type: Other Fiber
- Brand Name: Yestar
- Material: nylon
- Use: Non-Woven Fabric,Spinning
- Feature: Anti-Bacteria,conductive
- Product Type: Filament
- Model Number: XTAA184
- Fineness: 95D
- Fiber Length: continuous
- Pattern: Raw
- Technics: Ring Spun
- Yarn Count: 20D/3F
- Evenness: EVEN
- Style: Solid
- Type: Nylon Blended Yarn
Specifications
Carbon fiber conductive nylon filament 20D/3F intermingling with 75D black FDY polyester filament ESD workwear
Product Description
Thickness: 20D carbon fiber intermingling with black 75D FDY polyester
Other specification could be customized:
| Carbon fiber | Polyester or Nylon filaments | Remarks |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 50D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 75D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 100D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 150D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 200D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) nylon 280D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) nylon 70D | by intermingling/by twisting/by covering |
Packaging & Shipping
18 bobbins/carton, net weight 36kg/carton, gross weight: 40kg/carton, dimension: 56cm*56cm*38cm
by sea, by general air transporation, by DHL/TNT/UPS/FedEX
Our Services
Also could produce carbon fiber 20D twist/cover with cotton yarn, such as:
1) black carbon inside conductive nylon filaments 20D twist with Ne7/1 cotton yarn, 400TPM.
2) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne12/1ply combed grey ring spun yarn by S direction only
3) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne12/1ply combed grey ring spun yarn by both S+Z direction
4) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne16/1ply combed grey ring spun yarn by S direction only
5) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne16/1ply combed grey ring spun yarn by both S+Z direction
6) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne21/1ply combed grey ring spun yarn by S direction only
7) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne21/1ply combed grey ring spun yarn by both S+Z direction
FAQ
a) Could supply free samples for trial test?
of course, free samples are 200 grams/type only. but, the freight charges is undertook by buyer.
