Yestar Tech Group Limited
China Manufacturer with main products: Carbon Inside Series, Silver/Copper Plated Series, Silver/Copper Plated Series, Stainless Steel(Fe-Cr-Al Alloy) Series, High Strength Series,... |
Home
>Products Catalog > Carbon inside series > Conductive Carbon Fiber 20D Twist with Ne32/1ply 100% Cotton Yarn for Electro Static Discharge Uniform ESD XT11460

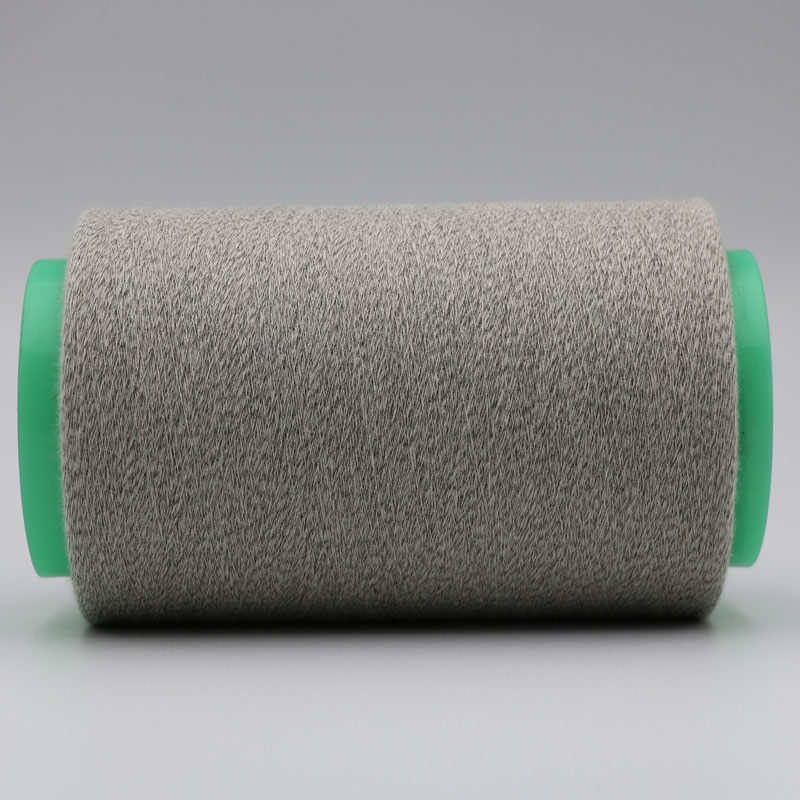

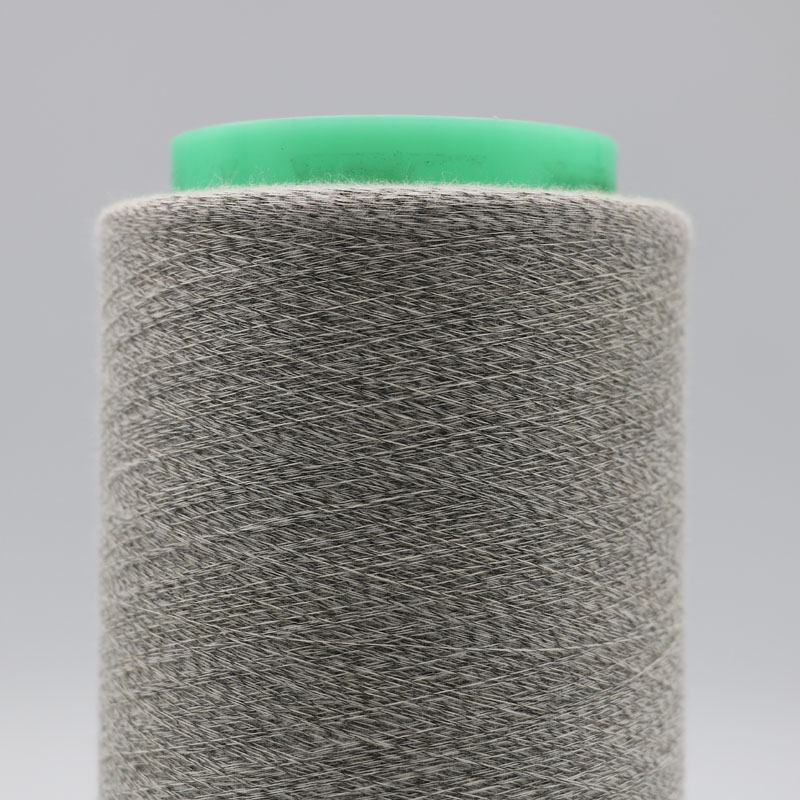

Conductive Carbon Fiber 20D Twist with Ne32/1ply 100% Cotton Yarn for Electro Static Discharge Uniform ESD XT11460
| Supply Ability: | 5,000 Kilogram(s) per Month |
|---|---|
| Shipping: | FOB Shanghai |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | 18 bobbins/carton, net weight 36kg/carton, gross weight: 40kg/carton, dimension: 56cm*56cm*38cm |
Quick Details
- Product Type: Other Fiber
- Brand Name: Yestar
- Material: carbon fiber
- Use: Concrete,Non-Woven Fabric,Spinning
- Feature: Anti-Bacteria,Flame Retardant,conductive
- Product Type: conducive yarn
- Model Number: XT11460
- Fineness: 20D
- Fiber Length: continuous
- Pattern: Raw
Specifications
Conductive carbon fiber 20D twist with Ne32/1ply 100% cotton yarn for electro static discharge uniform
Product Description
Thickness: 20D carbon fiber filaments outer ring type twist with Ne32/1 100% cotton yarn
Other specifications could be customized:
| Carbon fiber | Polyester or Nylon filaments | Remarks |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 50D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 75D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 100D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 150D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) polyester 200D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) nylon 280D | by intermingling/by twisting/by covering |
| 20D or 40D or 60D | Black(white) DTY(FDY) nylon 70D | by intermingling/by twisting/by covering |
Packaging & Shipping
18 bobbins/carton, net weight 36kg/carton, gross weight: 40kg/carton, dimension: 56cm*56cm*38cm
by sea, by general air transporation, by DHL/TNT/UPS/FedEX
Our Services
Also could produce carbon fiber 20D twist/cover with cotton yarn, such as:
1) black carbon inside conductive nylon filaments 20D twist with Ne7/1 cotton yarn, 400TPM.
2) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne12/1ply combed cotton grey yarn by S direction only
3) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne12/1ply combed Cotton grey yarn by both S+Z direction
4) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne16/1ply combed Cotton grey yarn by S direction only
5) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne16/1ply combed Cotton grey yarn by both S+Z direction
6) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne21/1ply combed Cotton grey yarn by S direction only
7) Use black 20D/3F carbon inside nylon outer ring to cover/wrap Ne21/1ply combed Cotton grey yarn by both S+Z direction
