Home >Products Catalog > Pipe > PTFE lined steel pipes of ANSI/JIS/DIN standard

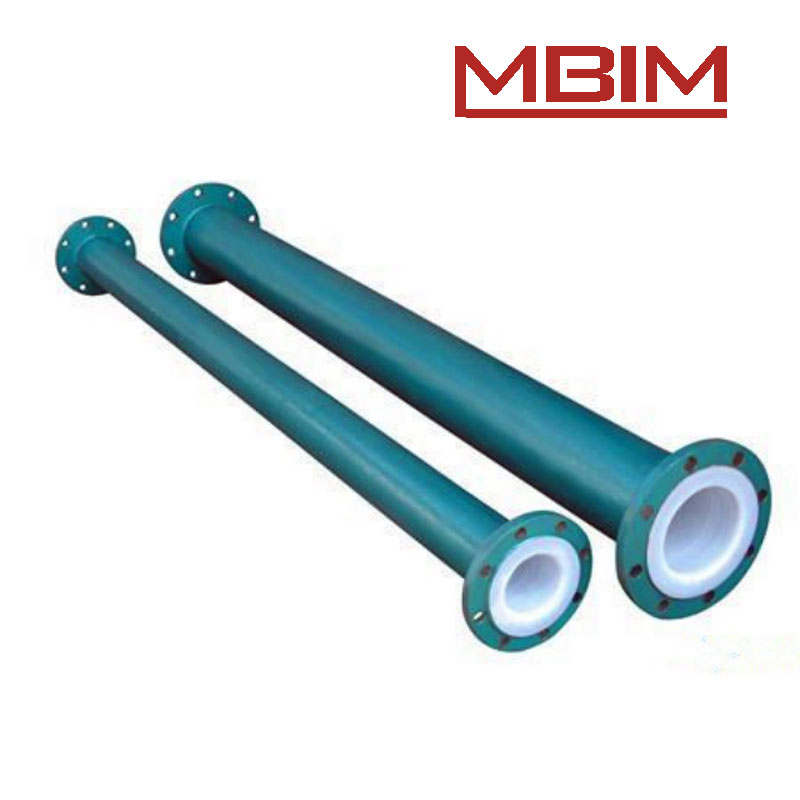

PTFE lined steel pipes of ANSI/JIS/DIN standard

Supply Ability:	5,000 Meter per Month
Shipping:	FOB,CIF,CNF
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

F-PPR Pipe

Price:

Min. Order:
Steel Pipe (ST52)

Price:500.00-800.00 USD/Metric Ton

Min. Order:20 Metric Ton
Decorative Tube A554

Price:

Min. Order:
Chinese suppliers hs code bs 1387 hot dip galva...

Price:300.00-600.00 USD/Ton

Min. Order:20 Ton
Low Alloy Steel PlatesP355M/P355ML1/P420M/P420M...

Price:600.00-800.00 USD/Ton

Min. Order:100 Ton
Foam Insulation Pipe

Price:

Min. Order:
Spiral Pipe

Price:

Min. Order:10 Ton

Product Details

Place of Origin:	Shanghai in China
Packaging Details:	Exporting standard

Quick Details

Color: White
Standard: HG
Thickness: 2-10mm
Length: 5M
Outer Diameter: 25-1000
Specification: CS
Material: Q235B+PTFE
Model Number: BHS
Brand Name: MBIM
Steel part: Carbon steel
Lining: PTFE/PP/PO
Flange: ANSI/JIS/DIN

Specifications

New Choice for PTFE Lined Steel Pipe(Lined pipe,Lined Steel Pipe).Standard length:4000,3000,2000,1500,500,300,200mm

PP Lined Steel Pipe(Lined pipe,Lined Steel Pipe)
Benefits:

· Corrosion Resistance

· Durability & Strength

· State-of-the-Art

· Manufacturing Facility

· Ultra-pure

· Economical

· Local Inventory

· Custom Fabrication Capabilities

· Fast Fool Proof Fabrication

Applications:

· Sulfuric Acid

· HCL

· Water Treatment

· Acid Lines

· Demineralized Water

· Liquor lines

· Chlorine Dioxide

· Full vacuum service at Elevated temperatures

Liners are available in PTFE,PCTFE,PVDF,FEP, PFA, PO,PE and PP. Liner is rated to full vacuum at the maximum rated temperature. Meets or exceeds all ASTM specifications.

Liner Characteristics (G/cm3)	PTFE	PCTFE	PVDF	FEP	PFA	PO	PE	PP
Specific Gravity(10-5/k)	2.1-2.2	2.1-2.2	1.76	2.1-2.2	2.1-2.2	0.92	0.92	0.92
Ideal Applicable Temp	≤180oC	≤120oC	≤120oC	≤150oC	≤180oC	≤85oC	≤85oC	≤100oC
Coefficient of Thermal Expansion(Mpa)	1-5	1-2.5	2.0	2-5	1-5	1-2	1-2	1-2
Tensile Strength(Mpa)	13.7-24.5	31.3-39.2	45-48.3	20.2-24.5	14-28	≥10	6.9-14	7.5-14
Compressive Strenght(Mpa)	111	80.3-50.9	68.6	--	111	--	--	--
Elongation(%)	250-350	30-190	30-300	250-270	300-500	480	300-600	600-700
