Orient Electronic Co., Ltd.
China Manufacturer with main products: Earphones, Headsets, Cables, USB Gadgets, Handsfree Kits, Adapters, Speakers, Microphones |

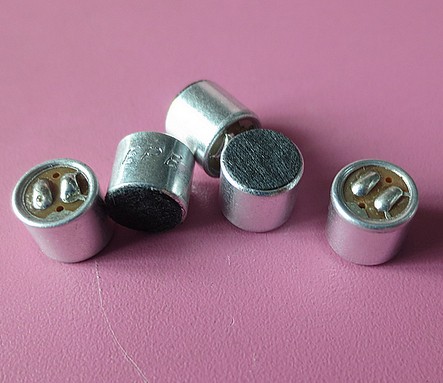

Electret Unidirectional Condenser Microphone
| FOB Price: | 0.01 - 2.90 USD/Piece |
|---|---|
| Supply Ability: | 88,800,000 Piece/Pieces per Month |
| Shipping: | FOB Shenzhen or HK |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | plastic bag + outer box (plastic bag enclosed in the outer box for moisture proof) |
Quick Details
- Use: audio
- Communication: Wired
- Style: Condenser microphone
- Model Number: Electret Unidirectional Condenser Microphone
- Brand Name: OEM service available
- Feature: Electret Unidirectional Condenser Microphone
- OEM / ODM: available
- Item: high sensitivity condenser microphone
Specifications
Specifications
1. Condenser microphone, customizable
2. mini condenser microphone
3. ROHS, ISO
4. Fast shipping
5. Many different microphones available: omnidirectional microphone, unidirectional microphone, bothway (noise elimination) microphone, etc.
Applications:
1 mobile phones /tellphones
2 headphones
3 MP3/MP4
4 PDA
5 digital camera
6 talkie-talkies
7 voice recorder
8 acoustic control light
9 voice-activated toys
10 other device
The specifications should be applied to electret condenser microphone
2.Storage And Judgement Conditions
|
|
Temperature Range(°C) |
Rel. Humidity(%) |
Static Pressure(kPa) |
|
Judgement |
19~21 |
60~70 |
86~106 |
|
Storage |
-40~80 |
|
|
|
Operating |
-20~70 |
|
|
Test Conditions:VS=1.5V,RL=680Ω,Temp=20±2°C, R.H=60±5%
|
ITEM |
Symbol |
Test Conditions |
Min |
Standard |
Max |
Unit |
|||||
|
Sensitivity |
S |
f=1KHz, S.P.L=1Pa |
-50 |
-47 |
-44 |
dB 0dB=1V/Pa |
|||||
|
Impedance |
Z |
f=1KHz, S.P.L=1Pa |
|
|
680 |
Ω |
|||||
|
Directivity |
Unidirectional |
||||||||||
|
Current Consumption |
I |
|
|
|
500 |
UA |
|||||
|
Operation Voltage Range |
VS |
|
1.0 |
1.5 |
10 |
V |
|||||
|
S/N Ratio |
S/N(A) |
f=1KHz,S.P.L=1Pa A Curve |
55 |
|
|
dB |
|||||
|
Decreacing Voltage Characteristic |
S |
f=1KHz,S.P.L=1Pa VS=1.5-1.1V |
|
|
-3 |
dB |
|||||
|
Max.Input Sound Level |
MISPL |
f=1KHz, Distortion<1% |
|
|
110 |
dB |
|||||
