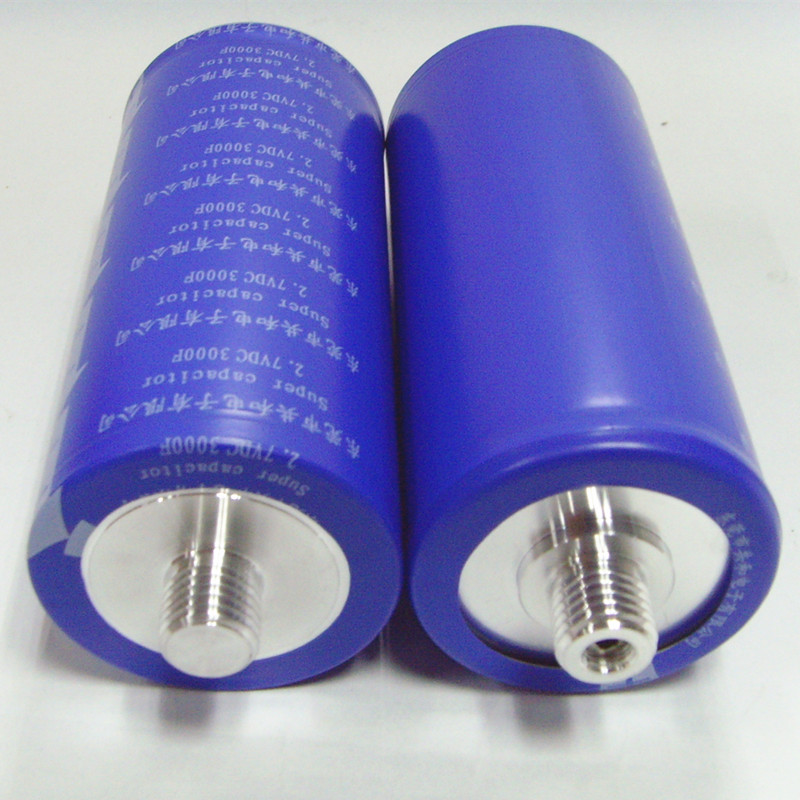

super capacitor 2.7v3000f farad capacitor

FOB Price:	47.00 - 55.00 USD/Piece
Supply Ability:	9,999 Piece/Pieces per Month
Shipping:	7~20days after payment
Payment Terms:	L/C, T/T, Western Union, Other, paypal L/C

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Capacitor Discharge Welders

Price:

Min. Order:1 Pound

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China
Packaging Details:	Carton or according to the costomers requirement.

Quick Details

Operating Temperature: -40~ +70
Rated Voltage: 2.7v
Capacitance: 3000f
Package Type: Through Hole
Application: black boxsolar panelcar audio,led,motor starting,backup battery
Type: Super Capacitor
Model Number: 2.7v3000f
Brand Name: GHC
colour: blue
capacitance tolerance: +_20%
size: 60*138MM
certificate: RoHS/CE/ISO9000
type: snap-in
Advantage1: super quality
Advantage2: super high-rate discharge
Advantage3: high power&low esr
Advantage4: cold starting (can be used at -40 degrees celsius )
Advantage5: green safe and long life(up to 5 hundred thousand cycles)

Specifications

withGHC ultra capacitor Specifications green energy-saving 2.7v 500f ultra farad capacitor 2.7v500f super capacitor 2.7v 500f Name:Fala 2.7v500f(V)capacitor

Packing:Carton or according to the costomers requirement

Brand:nanoforce

Fala capacitor, super capacitor

Note: the new original authentic environmental protection Fala capacitance of electric double layer capacitor, it is in the world has been put into mass production of electric double layer capacitors in the capacity of a maximum, layer capacitor,its basic principle and other kinds of electric double, are ultra large capacity electric double layer structure with active carbon porous electrode andelectrolyte.

Return Policy

Our Guarantee

You Satisfaction is our #1 Goal!

100% satisfaction guarantee!

It is our commitment to make sure you are 100% satisfied with you purchase

≡wish you a happy shopping , welcome to the next visit≡

What are details of super capacitor?
Name	super capacitor 2.7v500f
Features	1.long life: up to 1200000 cycles, maintenance-free
	2..Low ESR: can be used as a rechargeable battery and ideal for back up purposes
	3.Quick charge: charging 10 seconds to reach its rated capacity of more than 95%
Applications	Widely used in cordless telephone, cell phone, digital camera, intelligent electrical appliance, electronic toy,intelligent door lock, intelligent meter, MP3, PDA, DVD, VTR, GPS, PLC, fax mac-hine, audio equipment,electric cooker, electric water heater, selfpowered super flashlight, printer, taillight , electronic toys, fiscal cash register,UPS,solar, wind energy ,recycle energy system, battery partner and so on.
	Size	routine date	measure	temperature
			35*75mm	-40C~+70C
		The above is our regular size, We also can provide customized sizes!
		Packing	Thorugh hold(200150200mm)
Price		The price will change according to the quantity of the capacitor you need.

Δ Payment is safe and easy, you can pay our online use credit card(VISA ,Mastercard) or Paypal,T/T, Wumis,if you buy more also we accept L/C,O/A, payments.

Δ We can ship items to all over the world.and we had been shipped to many countries

Eg: Italy,Spain,France,Australia,Iran, Germany, Netherlands, Brazil, Japan, Pakistan, South Africa and India and so on.

Δ. You can choose ship by DHL,UPS,TNT ,

eries	voltage(V)	capacitance(F)	resisdance( m ohm)	size D×L×P (mm)	terminal
Small capacitance	2.7V/2.3v	0.22F	2000	4×10	radial
	2.7V	0.47F	1300	8×12	radial
	2.7V	1F	400	8×12	radial
	2.7V	1.5F	200	8×12	radial
	2.7V	2F	150	8×16	radial
	2.7V	3F	100	8×20	radial
	2.7V	3.3F	100	8×20	radial
	2.7V	5F	80	10×20	radial
	2.7V	10F	60	12.5×20	radial
	2.7V	15F	50	16×20	radial
	2.7V	20F	40	16×25	radial
series	voltage(V)	capacitance(F)	resisdance( m ohm)	size D×L×P (mm)	terminal
Medium capacitance	2.7V	25F	25	16×25	radial
	2.7V	30F	20	16×30	snap-in
	2.7V	35F	20	16×35	radial
	2.7V	50F	12	18×40	radial
	2.7V	60F	10	18×40	snap-in
	2.7V	100F	10	18×60 22×45	snap-in
	2.7V	120F	8	26×50 22 ×45	snap-in
	2.7V	180F	7	30×50	snap-in
	2.7V	200F/220F	7	30×50	snap-in
	2.7V	300F	2.2	35×60	screw
	2.7V	350F	2.2	35×60	snap-in
	2.7V	400F	2.2	35×60	screw
	2.7V	500F	6	35×75	snap-in
series	voltage(V)	capacitance(F)	resisdance( m ohm)	size D×L×P (mm)	terminal
Large capacitance	2.7V	650F	1.7	35×100	screw
	2.7V	800F	20	35×100	screw
	2.7V	1000F	1.2	60×80	screw
	2.7V	1200F	15	60×80	screw
	2.7V	1500F	1	60×80	screw
	2.7V	2400F	0.6	60×135	screw
	2.7V	3000F	0.43	60×138	screw
	2.7V	3500F	0.6	60×138	screw
	2.7V	5000F	10	63×150	screw
	2.7V	10000F	0.23	90×236	screw

Characteristics of super Capacitor:

(1) fast charging, charging 10 seconds to 10 minutes can reach the rated capacity of more than 95%;

(2) long cycle life, depth charge discharge cycle use frequency can reach 1~50 million times, no "memory effect", there is no excessive discharge problem;

(3) the large current discharge ability is strong, the energy conversion efficiency is high, the process of loss, high current energy efficiency higher than 90%;

(4) the power density is high, up to 300W/KG~5000W/KG,equivalent to 5~10 times the battery;

(5) composition, product raw material production, use,storage and dismantling process has no pollution, is a green environmental protection power ideal;

(6) the charge circuit is simple, no need to charge the battery as the charging circuit, the long-term use ofmaintenance free;

(7) the ultra low temperature characteristics, wide temperature range of -40 ~ +70;

(8) the detection is convenient, the remaining power can be read directly;

(9) the capacity range is usually 0.01F~1000F, andpressure is often low (a few volts to 10 volts, newdeveloped but also more than 20 kV).

(10).Quality standard:ISO 9000;ISO 9001:2000;ISO 9001:2008;ISO 14001:2004;CE;ROHS

The super capacitor can be made into a super capacitor module, suitable for high capacity demand.

Shortcomings:

(1) the pressure of the super capacitor are not high. In practical use, an overvoltage protection circuit.

There areoften two to a plurality of super capacitor in series toaccess high voltage environment.

This procedure is not right. Because of the capacitance of the capacitor leakage,and the quality is not the same,

in the late charge and discharge times of easy to cause the local unit overchargeand breakdown phenomenon.

(2) the super capacitor is after all not a battery, the voltagedecreased with the discharge problem, so the need foroutput circuit complex.

Examples of application

Low impedance Fala capacitance is essential for many of today's high power applications.

For a quick charge and discharge, Fala capacitor small ESR means more power output. [1]

instantaneous pulse power applications, the short timepower of important storage, memory system support.

1, application of fast charge, a few seconds to a few minutes to charge, discharge. For example, electric tools,electric toys;

2, in the UPS system, the super capacitor providesinstantaneous power output, as a supplement to the standby power engine or other continuous system;;

3, applied to the lack of sufficient energy, power energy,such as solar energy;

4, when the power bus from a power source switch to another source of support;

5, the small current, long time continuous discharge, such as computer memory back-up power;
