Shenzhen ESClighting Technology Co., Ltd.

China Manufacturer with main products: LED Panel Light, LED Downlight, LED Tube Light, LED Track Light, LED Wall Washer, LED Floodlight, LED High Bay, LED Spot Light

Home >Products Catalog > LED Panel light > White Cover LED Panel Light Small 6W 12W 18W 24W Round LED Panel Light

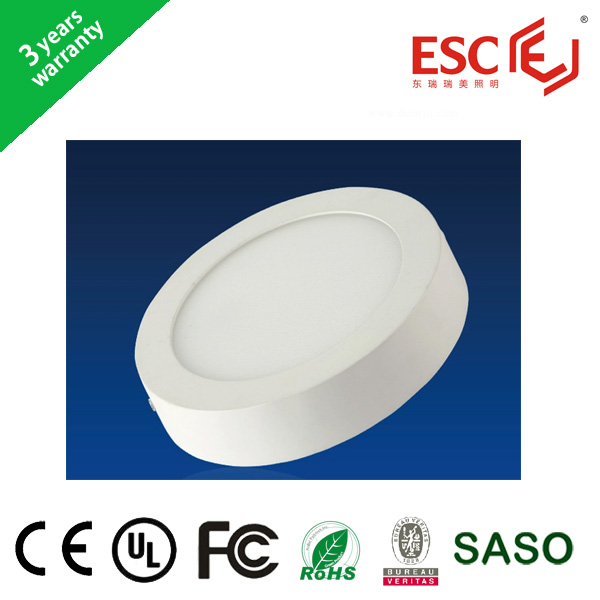

White Cover LED Panel Light Small 6W 12W 18W 24W Round LED Panel Light

FOB Price:	3.61 - 14.99 USD/Piece
Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	by sea or express
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

LED Color Panel Series

Price:

Min. Order:
LED Panel Light

Price:

Min. Order:
CE RoHS Approval New Design 12060cm LED SMD Pan...

Price:8.60-12.40 USD/Piece

Min. Order:10 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	netural carton box

Quick Details

Item Type: Panel Lights
Light Source: LED
Model Number: DR-SPL174R-A
Brand Name: ESC Lighting
Certification: CE,RoHS
IP Rating: IP44
Lamp Body Material: Aluminum
Working Lifetime(Hour): 50000
Color Temperature(CCT): White/ Warm White
CRI (Ra>): 75
Lamp Luminous Efficiency(lm/w): 80
Lamp Luminous Flux(lm): 480
Lamp Power(W): 6
Input Voltage(V): AC85~265V
Warranty(Years): 2
LED Light Source: SMD2835
Model: high quality small led panel light
Lamp Body Material: Aluminium , PMMA
Power factor: > 0.95
Input Voltage: AC85~265V
Light color: White, Warm White
LED Color Temperature: 2700-7000k
Led quantity: 30 PCS
Led bead type: SMD 2835
Driver: CE passed driver

Specifications

White Cover LED Panel Light Small 6W 12W 18W 24W Round LED Panel Light

Profession LED Panel Light Manufacturer in China:

Being a professional LED Panel lighting manufacturer for more than 5 years, we develop and produce the Key parts by ourselves; therefore we have the advantage in cost efficiency and quality control

Product Feature

Imported super bright SMD LED 3014, 2835 or 5730,industry's leading luminous efficiency,Top ranking in China,with CRI>80.
Adopting imported Mitsubishi light guide plate to get a better performance;
Super Longlife designed driver ,MTBF estimated at 60,000 hours, UL & Tuv Listed.
Extra insulation design.
Super high light transmit Plate, distribute uniformed light.
Leading heat management, low termperature increase,largely increase the lifetime
2 years warranty;
Manufacturer directly and massive production volume, guarantee lowest price for same quality.
Independent LED circuit design prevents complete blackout in case an LED fails

Product Specification:

Model	DR-SPL112R-A	DR-SPL174R-A	DR-SPL295R-A
Power Consumption	6W	12W	24W
Input Voltage	AC85-265V
Dimension	112mm	174mm	295mm
Hole Size	/	/	/
Lighting Source	30 pcs	60 pcs	120 pcs
Color Temperature	WW(2800~3300K)	NW(4000~4500K)	CW(6000~6500K)
Luminosity	>80lm/w
CRI(Ra)	>75
Beam Angle	120°
Work Temperature	-25°C~+45°C
PF	0.95
Material	Aluminium+ PMMA
Lifespan (LED)	≥50,000hrs (70% Lumen Maintenance)
IP Rating	IP44

Normal size and wattage of led panel light for reference:

30030012mm	12w,18w,24w,36w
30060012mm	18w,24w,27w,36w
300120012mm	36w,42w,48w,54w,72w
60060012mm	36w,42w,48w,54w,72w
600120012mm	54w,72w
Φ180*H15mm	10w
Φ240*H15mm	15-18w
Φ300*H15mm	20w
20020012mm	9w,12w
