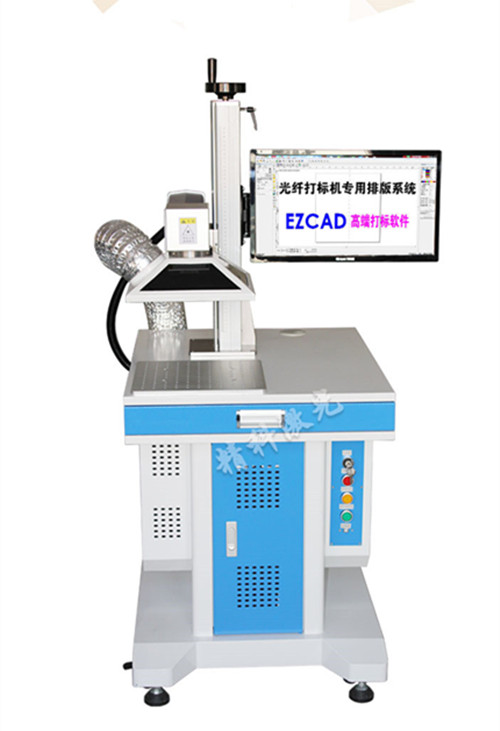

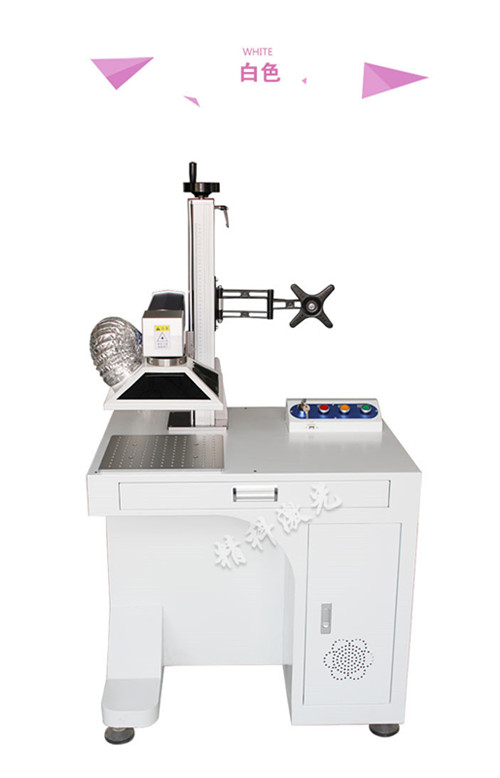

10W20W30W IPG Fiber Laser Marking Machine Fiber Laser Marker
| Supply Ability: | 400 Set(s) per Month |
|---|---|
| Shipping: | 4 working days after payment is received |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shaanxi in China |
| Packaging Details: | wooden box and foam |
Quick Details
- Application: Laser Marking
- Certification: CE
- Brand Name: Rubylasertech
- Graphic Format Supported: AI,BMP
- Condition: New
- Applicable Material: Non metal material and metal
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: 20W FIBER LASER MARKING MACHINE
- Cooling Mode: Air Cooling
- CNC or Not: Yes
- Laser Type: Fiber Laser
- Warranty: 1 year
- Graphic Format Supported: jpg
- Certification: ce
Specifications
Desk type30/50WFiber Laser Marking Machine Fiber laser engraving machine

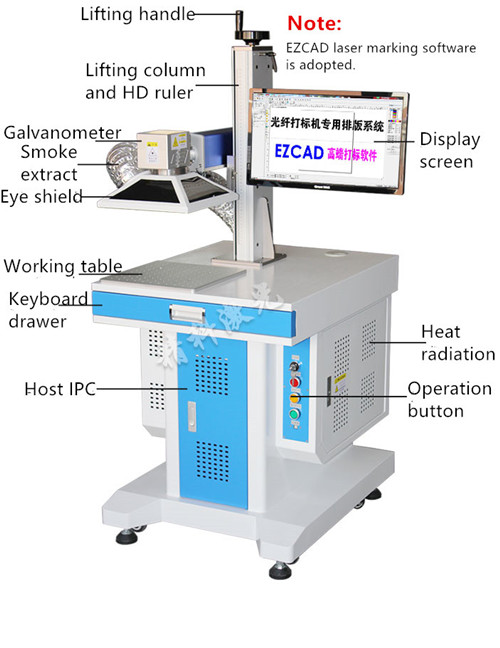

Features
1.Air cooled cooling systerm, easy and quickly installation,USB contacted with any computer and install softerware easily
2.Use interfaces types: text, graphics, serial number, serial number, a d bar code, 2 d barcode, successive signet (optional equipments), etc
3.Suitable for: anodized sculpture, hand tools deep carved, aluminum a deep carved, stainless steel surface carved black, IC table sculpture, etc.!
4.Advantages: small volume, avoid consumables, flexible degree is high, use 5-100000 hours and hours without power attenuation problem!
6.It adopts Germany scanning galvanometer. It has high scanning speed and good quality laser beam.
7. It adopts high grade motherboard which has powerful features. this software can be matched with CorelDraw, AutoCAD, Photoshop and others. It also support PLT,PCX,DXF,BMP,etc. It also can directly uses SHX and TTF FontLab.
8.It has red light preview functions.
9. It has manual adjustment laser optics functions which is good for fine marking.
10. It has X and Y axis bidirectional mobile platform and 360 degrees rotary fixture which is good for plane, cylindrical or comicalness marking.
Specification
1. Model:LF10, LF20, FL30 or LF50
2. Wave length:1064um
3. Laser power:10W,20W,30W or 50W IPG, Raycus or Max
3. Marking thickness:More than 0.8mm(depends on materials)
4. Min line width:0.05mm
5. Working distance:500mm
6.Marking speed: Less than 10000mm/S
7. Min character: 0.2mm
8. Repeatability precision: 0.002mm
9. Laser security classification: Class IV
10. Laser marking size: 110x110mm standard,70x70mm,200x200mm or 300x300mm optional
11. Operation software: EZCAD, it can support windowsXP/7 32
12. Graphic format: PLT,DXF,AI,SDI,BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF
13. System protection: IP54
14. Galvanometer: Germany technology product
15. Control interface: USB
16. File format: All font and graphemic of Windows
17. Input voltage: 110/220V
18. Cooling method: Air cooling
19. Optional spares:Various fixtures, assembly line working table, multistation working table, rotatable working table,etc.
20. Overall power consumption: Less than 500W, Less than 700W, Less than 1000W
21. Machine size: 600x650x1300mm
22. Machine weight: 75KG
Applicable Materials
Can be used in wood,paper,leather,cloth,organic glass, epoxy,acrylic,unsaturated poluester resin and other non-metal materials.
Applicable industry
Widely used in leather,food,beverage,cloth,electronic,meter,communication instruments,package and other industries,can be combined with streamline for online marking.
