- Model Number: CRI-200
- Type: Engine Analyzer
Specifications

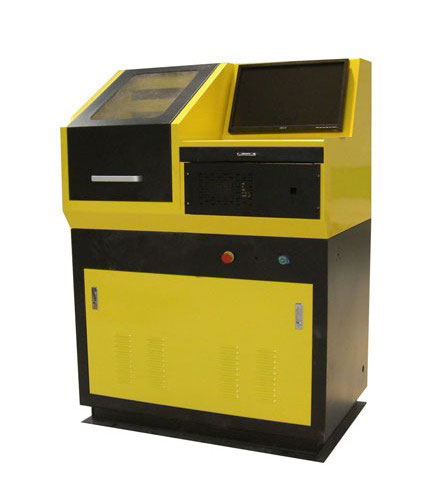

CRI-200 test bench is the special device to test the performance of high-pressure common rail injector assembly, it adopts BOSCH original common rail pump to provide 0~2000 bar of rail pressure, it can test common rail injector of main producers(BOSCH, SIEMENS, DELPHI, DENSO)
1. Main motor drive adopts the frequency change to adjust the speed.
2. It is installed BOSCH original common rail pump to provide 0~2000 bar of rail pressure.
3. The drive signal can be adjusted. 4. Protection function of short-circuit.
5. The rail pressure can be tested in real time, it contains the high-pressure protection function.
6. Pulse and frequency of the injector drive signal can be adjusted.
7. The injection time can be setted. 8, dimension(MM): 1200×800×1600; 9, weight: 400KG
FUNCTION
1. Test the max. oil quantity of high-pressure common rail injector.
2. Test the cranking oil quantity of high-pressure common rail injector.
3. Test the backflow oil quantity of high-pressure common rail injector.
4. Test the average oil quantity of high-pressure common rail injector.
5. Set the high-pressure common rail injector' injection state and oil quantity measurement.
Technical Parameter
1. Test frequency of injector: 50-3000rpm; 2. Pulse width: 0.1-200ms; 3.Test injection time: 1-300s;
4.Rail pressure: 0-200mpa; 5.Graduate: 120ML; 6.Input power: AC 380V/50HZ/3Phase or 220V/60HZ/3Phase or on request;
7.Fuel temperatue: 40°C; 8.Overall dimension: 1200MM×800MM×1600MM; 9.Weight: 400KG
