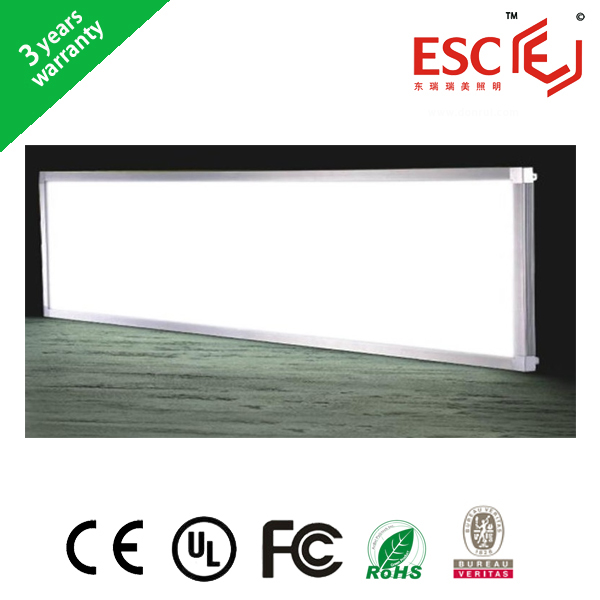

smd5630 surface mount led panel light 150*1200mm PF>0.95 CRI>80
| FOB Price: | 16.45 - 51.01 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | by sea or express |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | by sea or express |
Quick Details
- Item Type: Panel Lights
- Light Source: LED
- Model Number: DR-SPL15120-36W
- Brand Name: ESC Lighting
- Certification: CE,RoHS
- IP Rating: IP44
- Lamp Body Material: Aluminum
- Working Lifetime(Hour): 50000
- Color Temperature(CCT): White/Warm White
- CRI (Ra>): 80
- Lamp Luminous Efficiency(lm/w): 85
- Lamp Luminous Flux(lm): 3060
- Lamp Power(W): 36
- Input Voltage(V): AC100-240v
- Warranty(Years): 3
- LED Light Source: SMD5630
- Lamp Body Material: Aluminium , PMMA
- Power factor: > 0.95
- LED Color Temperature: 2700-7000k
- Led quantity: 88 pcs
- Driver: CE/UL passed driver
Specifications
smd5630 surface mount led panel light 150*1200mm PF>0.95 CRI>80
Product specification:
200*200*12mm Led panel light -------36W, 48W Available
|
Model |
DR-SPL15120 |
|
|
36W |
48W |
|
|
Input Voltage |
AC 100-240V |
AC100-277v |
|
Dimension |
150*1200* 12mm |
|
|
Lighting Source |
88 pcs SMD5630 |
99 pcs SMD5630 |
|
Power Consumption |
54W |
60W |
|
Color Temperature |
2700K – 7000K |
|
|
Luminosity |
3100lm |
4100lm |
|
Driver |
CE passed driver |
UL listed driver |
|
CRI(Ra) |
>80 |
|
|
Beam Angle |
120° |
|
|
Work Temperature |
-25 ℃ - +45℃ |
|
|
PF |
0.95 |
|
|
Material |
Aluminium+ PMMA |
|
|
Lifespan (LED) |
≥50,000hrs (70% Lumen Maintenance) |
|
|
IP Rating |
IP44 |
|
Normal size and wattage of led panel light for reference:
|
300*300*12mm |
12w,18w,24w,36w |
|
300*600*12mm |
18w,24w,27w,36w |
|
300*1200*12mm |
36w,42w,48w,54w,72w |
|
600*600*12mm |
36w,42w,48w,54w,72w |
|
600*1200*12mm |
54w,72w |
|
Φ180*H15mm |
10w |
|
Φ240*H15mm |
15-18w |
|
Φ300*H15mm |
20w |
|
200*200*12mm |
9w,12w |
Describtion:
1. Environment friendly, no UV or IR light radiation.
2. No mercury or other inorganic.
3. Energy saving, low power consumption,high efficiency.
4. High performance light guide plate, PMMA material, 95% light transmittance.
5. A integrated die casting aluminum.
6. Maintenance free, Simple installation.
7. Application places: hutch defends, balcony, sitting room, corridor and mall.
Application:
1. Factories, Hospital Lighting
2. Warehouse, Supermarket Lighting
3. Schools, Offices, Residential Area Lighting led
Thanks for your attention, if any questions, pls don't hesitate to contact me, more info will be sent within 24 hours.
