Shandong Allive Firefighting Equipment Co., Ltd.
China Manufacturer with main products: Hydraulic Rescue Tool, Hydraulic Spreader, Hydraulic Cutter, Hydraulic Ram, Combi Tool, Rescue Tripod, Hydraulic Pump, Hand Operated Rescue... |
Air Lifting Bag Set QN-series
| FOB Price: | 700.00 - 2,400.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 5 days |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | stanard expot case |
Specifications

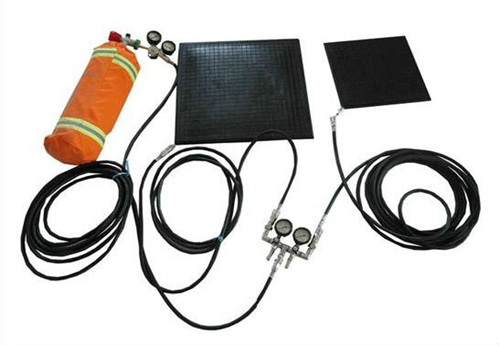

Air Lifting Bag Set QN-series
Brief introduction:
Air lifting bag is special equipment for rescue and other emergency situation; it is multi-functional of lifting, pushing & pulling, extruding, separating etc. Air lifting bag is made of aramid reinforced material, durable and resistant; the unit is mainly composed of high pressure gas cylinder, valves, pressure reducer, high pressure hose, air bag, etc.
Application:
1. Traffic accident rescue;
2. Earthquake and other geological disasters relief;
3. Building collapse, mining accident and other disaster rescues.
Main parts:
1. Air lifting bag
Technical Parameter
|
Model |
Area (cm) |
Thickness (mm) |
Lifting Force (t) |
Max Lift Height (mm) |
Max.Air Volume (L) |
Max. Pressure (bar) |
Test Pressure (bar) |
Weight (kg) |
|
P1 |
15*15 |
25 |
1.0 |
75 |
2.7 |
8 |
12 |
0.68 |
|
P5 |
25*25 |
25 |
3.3 |
120 |
15.8 |
8 |
12 |
1.92 |
|
P6 |
30*30 |
25 |
6.4 |
165 |
39.6 |
8 |
12 |
2.86 |
|
P8 |
35*35 |
25 |
8.6 |
185 |
69.9 |
8 |
12 |
3.7 |
|
P10 |
37*37 |
25 |
10.9 |
200 |
97 |
8 |
12 |
4.22 |
|
P12 |
39*39 |
25 |
12.2 |
230 |
126.3 |
8 |
12 |
4.64 |
|
P18 |
47*47 |
25 |
18.7 |
270 |
195.3 |
8 |
12 |
7.54 |
|
P20 |
50*50 |
25 |
20.6 |
306 |
196.1 |
8 |
12 |
7.70 |
|
P24 |
56*56 |
25 |
24.5 |
330 |
211.5 |
8 |
12 |
9.72 |
|
P30 |
65*65 |
25 |
31 |
360 |
463 |
8 |
12 |
13.32 |
|
P40 |
75*75 |
25 |
42 |
418 |
729 |
8 |
12 |
18.60 |
|
P54 |
86*86 |
25 |
54.4 |
478 |
1117.8 |
8 |
12 |
24.22 |
|
P68 |
96*96 |
25 |
68.7 |
520 |
1457. |
8 |
12 |
32.90 |
2. Gas cylinder
Technical parameter
|
No |
Mode |
FQL157-6.8-30-B |
|
1 |
Water capacity |
6.8L |
|
2 |
Nominal Diameter |
157mm |
|
3 |
Nominal Length |
528mm |
|
4 |
Thread |
M18×1.5 |
|
5 |
Gas Filled |
Air |
|
6 |
Air Volume |
1835L |
|
7 |
Working Pressure |
30MPa(4350PSI) |
|
8 |
Test Pressure |
50MPa(7250PSI) |
|
9 |
Break Pressure |
≥102MPa(14790PSI) |
|
10 |
Net Weight |
3.8 Kg |
3. Double Controller and hoses
|
No |
Tools included |
|
1 |
Pressure Reducer |
|
2 |
Controller |
|
3 |
Air-Release Valve |
|
4 |
Hose |
