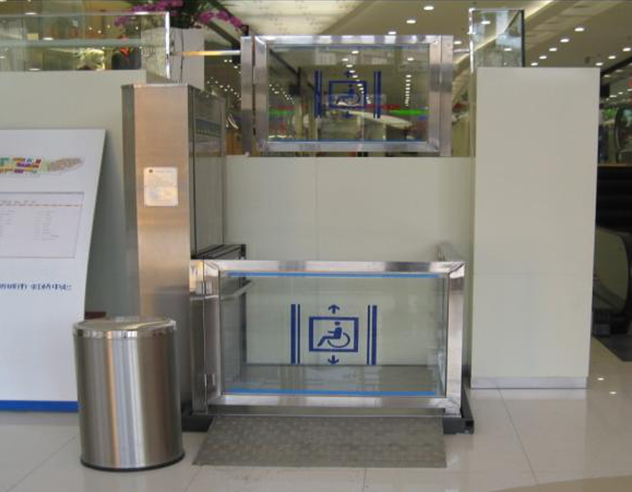

Vertical wheelchair lift platform used for disabled people

FOB Price:	1,300.00 - 5,000.00 USD/Set
Supply Ability:	10 Set/Sets per Week
Shipping:	7-30 working days after we reveive the order
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	In the wooden box

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: One year
Certification: CE SGS ISO9001
Weight: optional
Table Size: 1200*1000mm
Max. Lifting Height: 3.5m
Rated Loading Capacity: 350kg
Lift Drive / Actuation: Hydraulic
Lift Mechanism: Telescoping Lift
Model Number: ZTVL
Brand Name: ZHONGTIAN
Keywords: Vertical wheelchair lift platform used for disabled people
Grade: First class
OEM: Yes
Platform: Anti skid
Application: Used for disabled people
Voltage: 110v 220v 240v 380 optional
Main materials: Stainless steel
Colour: Optional

Specifications

Vertical wheelchair lift platform used for disabled people

Product introduction:

VL versatility accessibility lifting platform is the use of steel frame, precision screw driver or driven hydraulic power unit system a versatile type of vertical lifting platform. Products can enhance the range of about 3000mm in production according to customer needs, safety performance, installation design without pit to bring you the construction of the border barrier-free access and an elevator like to enjoy.

Strength and advantages:

It has a novel design, safe and stable, beautiful appearance, low noise, low temperature and other characteristics, in line with ASME A18-1 and CSA-B613 standard, reaching acclaim at home and abroad customers.

Technical parameters:

VL multifunction electric barrier lifting platform

Power supply

220V/50HZ/25A

Dimensions

1768mm x 1285mm x L

Lifting plate size

1370mm x 917mm

Maximum lift height

3000mm

Lift the lowest floor height

80mm

Installation

No pit-mounted (fixed directly to the level of C30 concrete floor, concrete thickness of not less than 200mm)

Lifting speed

40mm / s (screw driver) 70mm / s (hydraulic drive)

Maximum load

350(kg)

Fender forms

90°/180°

Rocker working angle

75°

Drive mode

Precision screw-driven or driven hydraulic power unit

Control supply voltage

24V/DC

Motor Power

2.2kw 220V/AC

Lift Control

Rocker operation run from the reset switch

Overload

Overcurrent relay control

Outbound form

Outbound boxes or columns were installed in the upper and lower layers parked near a wall or floor, the upper and lower linkage platform

For the environment

Indoor or outdoor

Temperature

-20°C — 60°C

Safety devices

Security Rocker

Rocker rise when the device runs automatically tilt, slide platform to prevent wheelchair

Emergency Stop

Press the emergency button switch can control the machine to run up or down

Emergency descent

Hand shake of the operation or use of a manual pressure relief system memory to enable the implementation of the emergency battery emergency lowering function

Safety Net

Lift the floor drops below the safety net in case of an obstacle to stop running immediately dropped
