International Way May Imp & Exp Limited
China Manufacturer with main products: Welded Mesh, Stainless Steel Wire Mesh, Razor Concertina Barbed Wire, Barbed Wire, Hexagonal Wire Netting, Concrete Nail, Woven Wire Mesh,... |

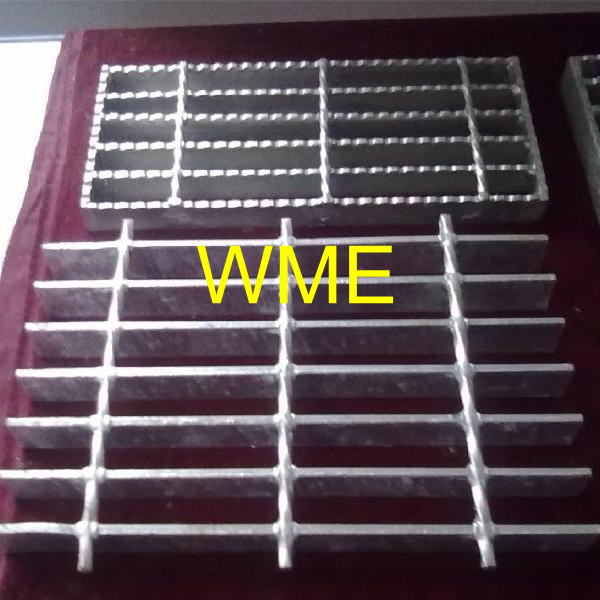

steel grating
| FOB Price: | 10.00 - 50.00 USD/Square Meter |
|---|---|
| Supply Ability: | 1,000,000,000 Square Meter/Square Meters per Month |
| Shipping: | 15 DAYS/FCL |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | With Steel Belt In high quality pallet or as your request |
Quick Details
- Brand Name: WME
- Model Number: WME0120
- Technique: Perforated
- Weave Style: welded
- Application: Protecting Mesh
- Type: Expanded Mesh
- Material: Steel Plate,Aluminum Plate,Stainless Steel ,etc
- Bearing bar pitch: 30,40,60mm
- Cross bar pitch: 50,100mm
- shape: Plain,Serrated,
- surface finishing: Hot-dipped galvanized,Painted
Specifications
1.Processing technic:
Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
2.Features:
intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
3.Useage:
Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
4.Material:
Carbon steel, Stainless steel ,and so on .
5.Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated.
6.Size:
Standard size or OEM(Making as the customers' request).
|
No. |
Item |
Description |
|
1 |
Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
|
2 |
Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
3 |
Twisted Cross Bar Pitch |
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
|
4 |
Material Grade |
ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
|
5 |
Surface Treatment |
Black, self colour, hot dip galvanized, painted, spray coating |
|
6 |
Grating Style |
Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
|
7 |
Standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1992, Japan:JIS |
