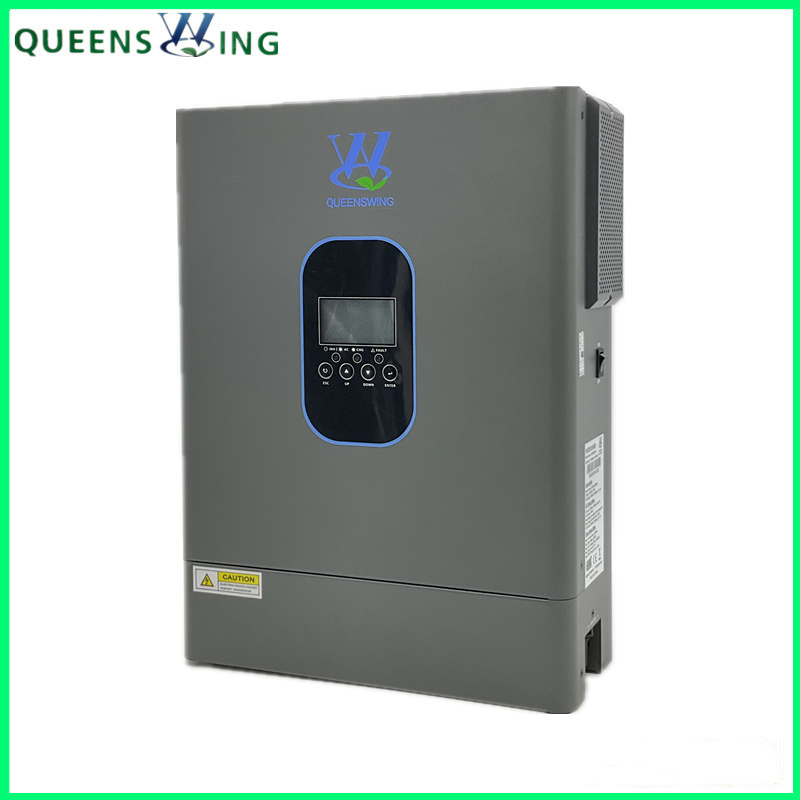

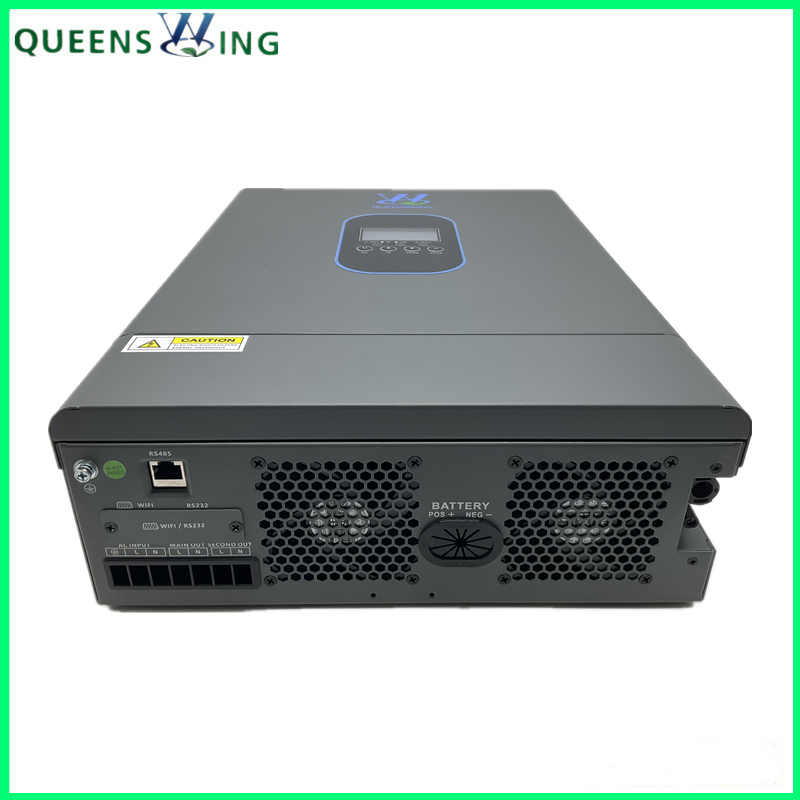

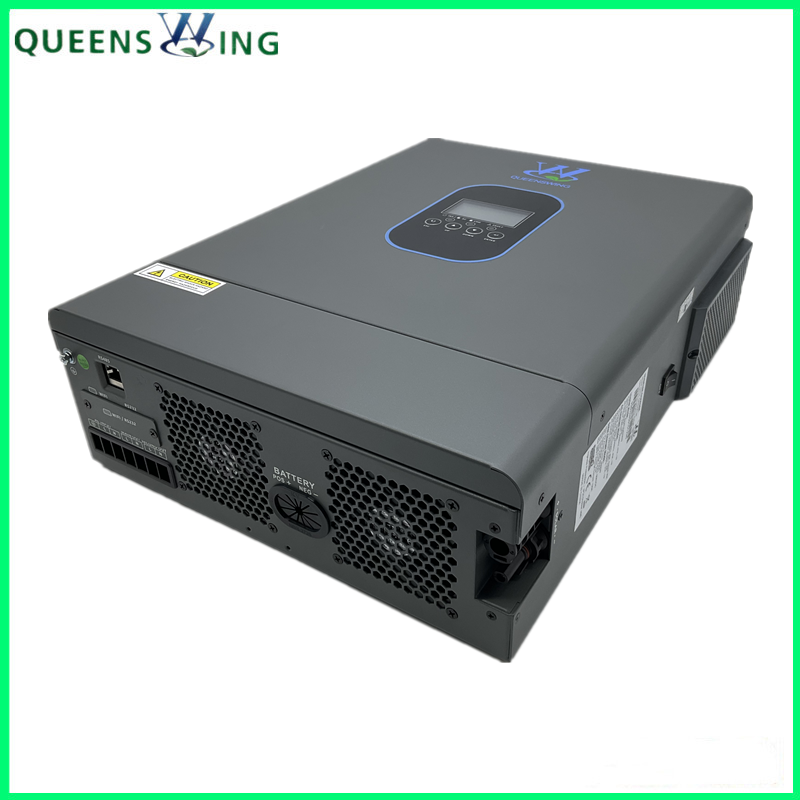

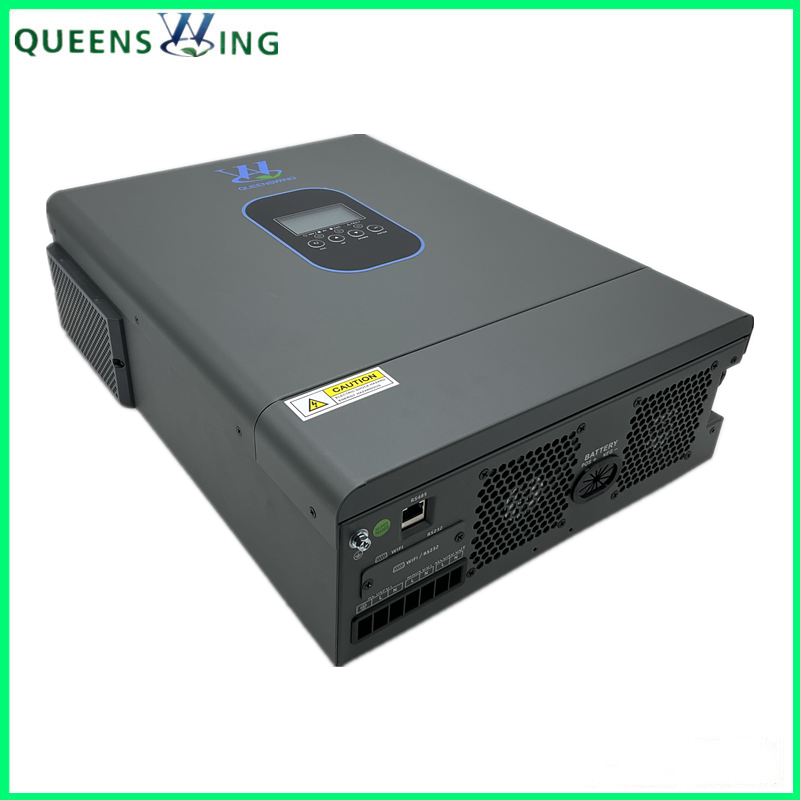

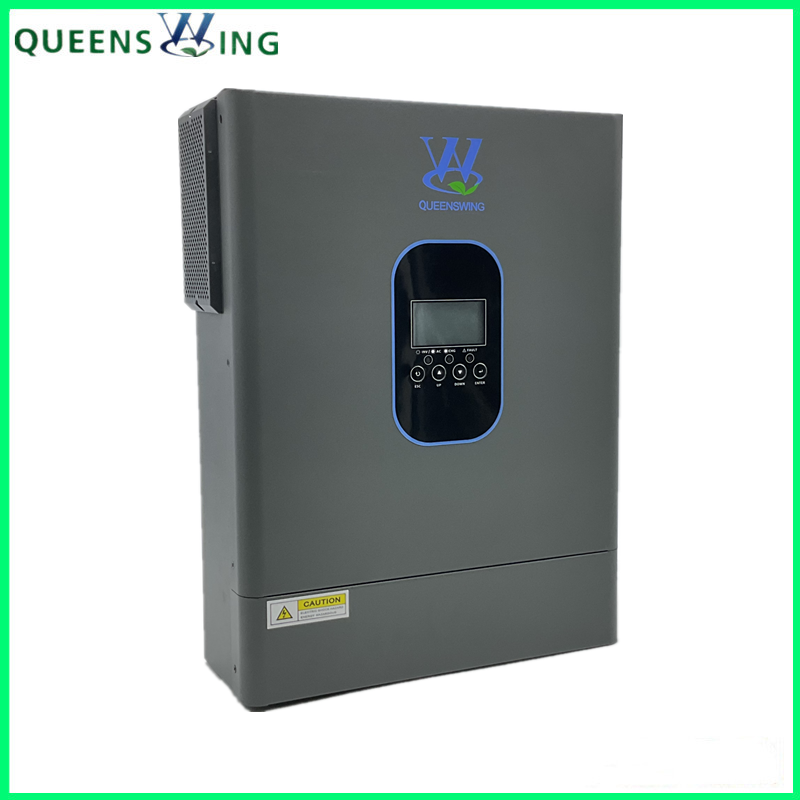

6.2KW 48VDC 120A MPPT Max. 6500W 60-500VDC PV Input on/off Grid Hybrid Solar Inverter(Can Work without Battery)

Supply Ability:	20,000 Unit(s) per Month
Shipping:	in 3 - 7days
Payment Terms:	T/T, Western Union, MoneyGram, cash

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Gift Box / Unit

Quick Details

Type: DC/AC Inverters
Output Voltage: 220VAC
Input Voltage: 48VDC
Output Type: Single
Brand Name: Queenswing
Output Current: 27A
Output Frequency: 50 / 60Hz
Weight: 10KG
Size: 560x375x185mm
Output Power: 601 - 800KW
Model Number: QW6200-48
Rated Power: 6200W
Input Voltage: DC48V
Output Voltage: AC220V
Waveform: Pure Sine Wave
MPPT Solar Controller: 120A
AC Charger: 80A
MPPT Voltage Range: 60 ~ 500 VDC
Max. PV Array Open Circuit Voltage: 500VDC
Max. PV Array Power: 6500W
Keyword: 6.2kw on/off Grid Hybrid Solar Inverter

Specifications

6.2KW 48VDC 120A MPPT Max. 6500W 60-500VDC PV Input on/off Grid Hybrid Solar Inverter(can work without battery)(QW6200-48)

Product Features:
Pure sine wave inverter
Power Factor 1.0

High PV input voltage range(60~500VDC)
MPPT: max 4000W(for 3.5kw), max 6500W(for 6.2kw)
Built-in 120A MPPT solar charge controller
Inverter running with or without battery
Detachable dust cover for harsh environment
Support multiple output priority: UTL, SOL, SBU, SUB
EQ function to optimize battery performance and extend lifecycle
Compatible work with lifepo4 battery via RS485
Lithium battery activation function, which can be triggered by mains or PV
Anti-shock design terminal
Overload,over voltage temperature,inverter output short circuit protection
Intelligent fan speed adjustment

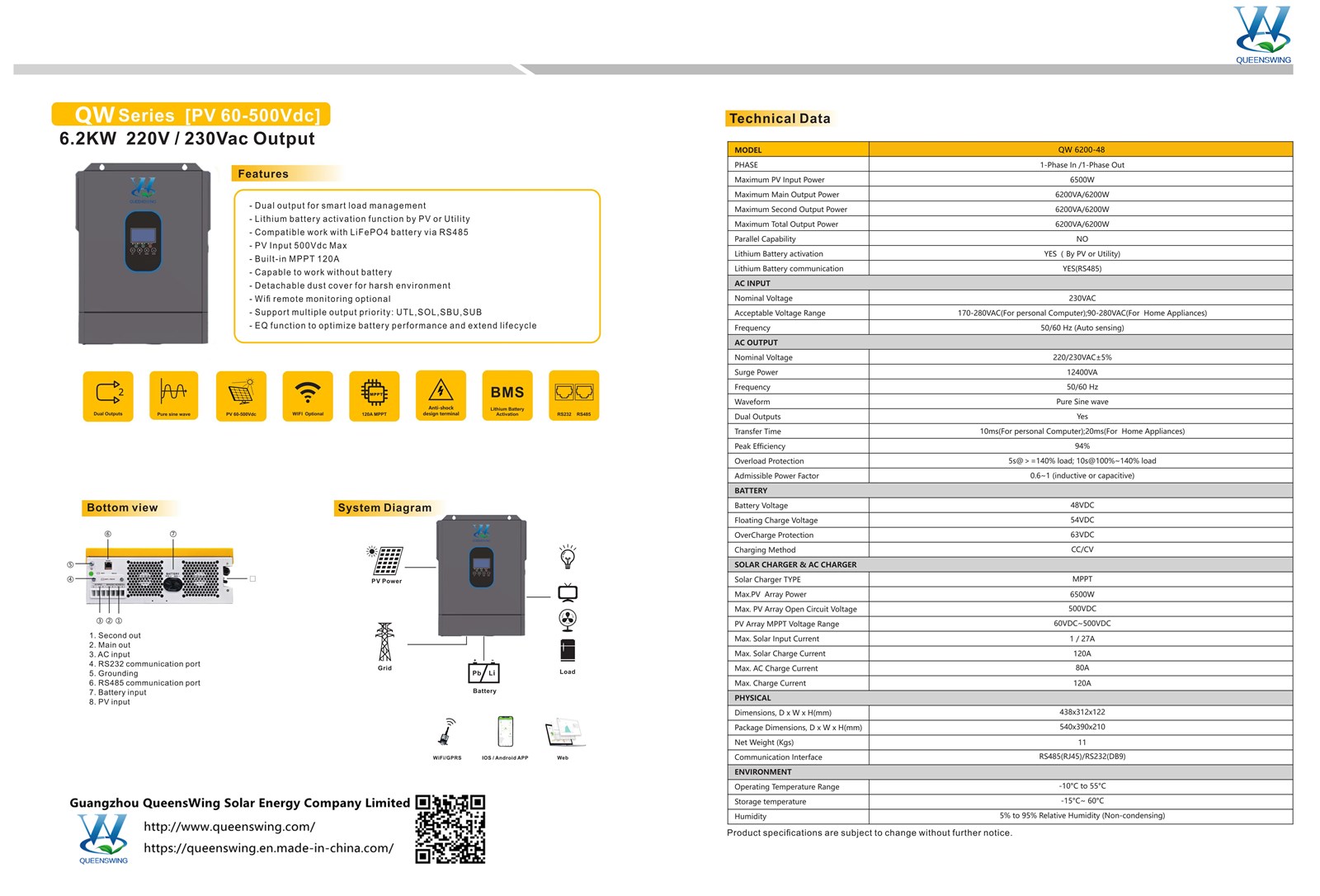

Technical Data

6.2KW 48VDC 120A MPPT Max. 6500W 60-500VDC PV Input on/off Grid Hybrid Solar Inverter(can work without battery)(QW6200-48)
Model	QW3500-24	QW6200-48
Rated Power	3500VA/3500W	6200VA/6200W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280 VAC(for Personal Computers) 90-280 VAC(for Home Appliances)
Frequency Range	50 / 60Hz (optional)
OUTPUT
AC Voltage Regulation(Batt. Mode)	230 VAC ± 5%
Surge Power	7000VA	12400VA
Transfer Time	10 ms (for Personal Computer) 20 ms (for Home Appliances)
Waveform	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
Overcharge Protection	33 VDC	63 VDC
Maximum AC Charge Current	80A	80A
SOLAR CHARGER
Maximum PV Array Power	4000W	6500W
MPPT Range @ Operating Voltage	60-500VDC	60-500VDC
Maximum PV Array Open Circuit Voltage	500VDC	500VDC
Maximum Charging Current	100A	120A
PHYSICAL
Dimension, D x W x H(mm)	465x380x175mm	560x375x185mm
Gross Weight(kg)	7	10
Communication Interface	RS232+RS485(Standard) WiFi(Optional)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10C - 50°C
Storage Temperature	-15C - 55°C
Product specifications are subject to change without further notice
MODEL	QW3500-24	QW6200-48
Inverter Power	3500W	6200W
Pmax.Generated from solar charger	100Amp, 4000W	120Amp,6500W
Best Panel Configuration	450Wp x 9pcs 9pcs in serial	450Wp x 14pcs 7pcs in serial, 2sets in parallel
