International Way May Imp & Exp Limited
China Manufacturer with main products: Welded Mesh, Stainless Steel Wire Mesh, Razor Concertina Barbed Wire, Barbed Wire, Hexagonal Wire Netting, Concrete Nail, Woven Wire Mesh,... |

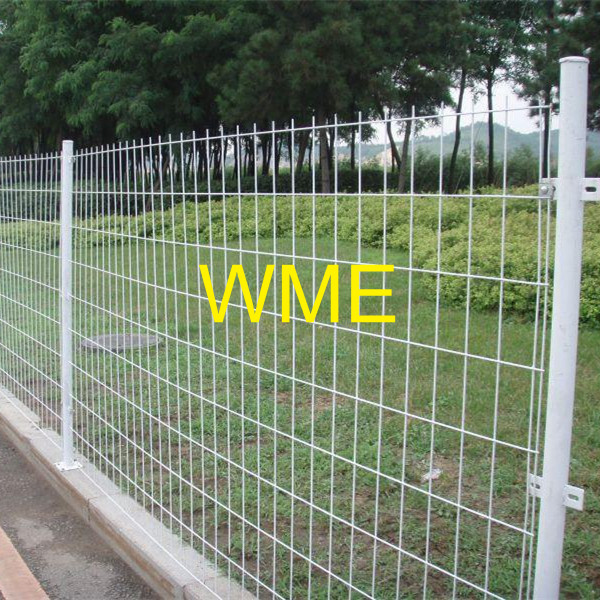

Double Wire Mesh Fence
| FOB Price: | 10.00 - 50.00 USD/Square Meter |
|---|---|
| Supply Ability: | 1,000,000,000 Square Meter per Week |
| Shipping: | 15 DAYS/FCL |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | pallet or up to customers requirement |
Quick Details
- Brand Name: WME
- Technique: Welded Mesh
- Wire Diameter: 3-6mm
- Weave Style: welded
- Application: Protecting Mesh
- Type: Welded Mesh
- Material: Galvanized Steel Wire
Specifications
1.Double Wire Mesh Fence Panel:
1) Using high quality Iron Rod as raw material --------Q195
2) Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.
3) The choose wire diameters are 6MM*2+5MM*1.8MM*2+6MM*1.
4) The thickness of powder coating is 100-120 microns usually.
5) the welded panel, after galvanization, Powders Primer, and Powders top coating;
6) it can resist the corrosive and ultraviolet radiation very strongly. It obtains high strong powers to resist the construction.
2.Double Wire Mesh Fence Post:
This system usually choose Square Post ,Rectangular Post as follows,With plastic caps or Roofing rain hat.
The finished surface usually is Galvanized and Powder coating, or alternatively.
Square Post: 50*50mm, 60*60mm
Rectangular Post:
To 2400mm high: 60mm x 40x2.5mm
To 3800mm high: 80mm x 60x3mm
To 5000mm high: 100mm x 50mm
To 6000mm high: 120mm x 60mm
Peach Post: 50*70mm, 70*100mm
3.Double Wire Mesh Fence Fastenings:
The Panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.
This also can be designed as the special clients requests.
4.Double Wire Mesh Fence Specification:
Double Wire Mesh Fence
Height*Width Panel(mm)
Mesh Size(mm)
Wire Diameter
Post Of Height
Wire Dia(mm)
Wire Dia(mm)
Wire Dia(mm)
630*2500
50*200
8*2+6
6*2+5
6*2+4
1100
830*2500
50*200
8*2+6
6*2+5
6*2+4
1300
1030*2500
50*200
8*2+6
6*2+5
6*2+4
1500
1230*2500
50*200
8*2+6
6*2+5
6*2+4
1700
1430*2500
50*200
8*2+6
6*2+5
6*2+4
1900
1630*2500
50*200
8*2+6
6*2+5
6*2+4
2100
1830*2500
50*200
8*2+6
6*2+5
6*2+4
2400
2030*2500
50*200
8*2+6
6*2+5
6*2+4
2600
2230*2500
50*200
8*2+6
6*2+5
6*2+4
2800
2430*2500
50*200
8*2+6
6*2+5
6*2+4
3000
