Best selling self propelled hydrulic scissor lift platform for cargo delivery

FOB Price:	900.00 - 3,500.00 USD/Set
Supply Ability:	10 Set/Sets per Week
Shipping:	30 working days from Qingdao port
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	According to the international standard

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: One yaer
Certification: CE SGS ISO9001
Weight: 2600kg
Overall Dimensions: 2.75*1*1.6m
Table Size: 2600*1000mm
Max. Lifting Height: 12m
Min. Lifting Height: 2m
Rated Loading Capacity: 300kg
Lift Drive / Actuation: Hydraulic
Lift Mechanism: Scissor Lift
Model Number: SJY0.3-10
Brand Name: ZHONGTIAN
Keywords: Best selling self propelled hydrulic scissor lift platform for cargo delivery
Grade: First class
OEM: Yes
Application: For out high working
Main materials: Stainless steel
Platform: Anti skid
Colour: Optional
Voltage: 110v 220v 240v 380v optional

Specifications

Best selling self propelled hydrulic scissor lift platform for cargo delivery

Introduction:

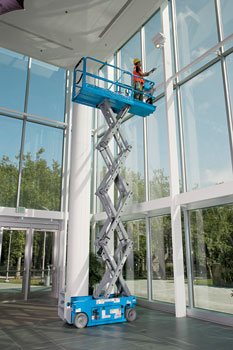

Self propelled lift platform can automatically fast and slow walk and turn in different work conditions,which do not need artificial traction,do not need external power supply ,and moveFlexibly and conveniently.It make aerial work more convenient and efficient.

Features:

1.Both indoor and outdoor usage

2.Vertical raising of platform
3.Main structure made of high-duty steel
4.Roll-out deck extension is available
5.Easy to operate
6.Unmatched large loading capacity

Componet:

1.Scissor parts,drawable work platform and safe guide rail

2.Self propelled DC power driving wheel

3.Hydraulic system,pump station,cylinder etc.

4.DC power source,recharger

5.Control panel

Technical parameters:

Type	Lifting height	Working height	Loading Capacity	Table Size	Overall Dimension	Weight	EXW	FOB
ZTSJZ0.3-4	4m	6m	300kg	1900*800mm	2.050.81m	1600kg	6500	7500
ZTSJZ0.3-6	6m	8m	300kg	1900*800mm	2.050.81.1m	1800kg	7800	8800
ZTSJZ0.3-8	8m	10m	300kg	2300*1000mm	2.4511.4m	2300kg	9000	10000
ZTSJZ0.3-10	10m	12m	300kg	2600*1000mm	2.7511.6m	2600kg	10500	11500
ZTSJZ0.3-12	12m	14m	300kg	2900*1000mm	2.7511.6m	2600kg	10900	11900

Application:

The mobile hydraulic scissor lift is widely used for the equipments installations and maintenance at the following places like construction sites workshops,warehouse,granary,bus/railway stations,hotels,airports,gas station and aerial pipeline,etc
