Shandong Yunfeng CNC Technology Co., Ltd.
China Manufacturer with main products: Tire Mold Machine, GRINDING MACHINE, DRILLING MACHINE, MOLD CNC, LETTERING MACHINE for TYRE MOULD, TWO PIECES MOLD MACHINE, SEGMENTED MOULD... |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Product: MACHINE
- Product Material: Iron
- Shaping Mode: CASTING
- Brand Name: fine & precision
- material: CASTING
- Model Number: YF-EDM2500
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: iso 9001,patent
- Condition: New
Specifications

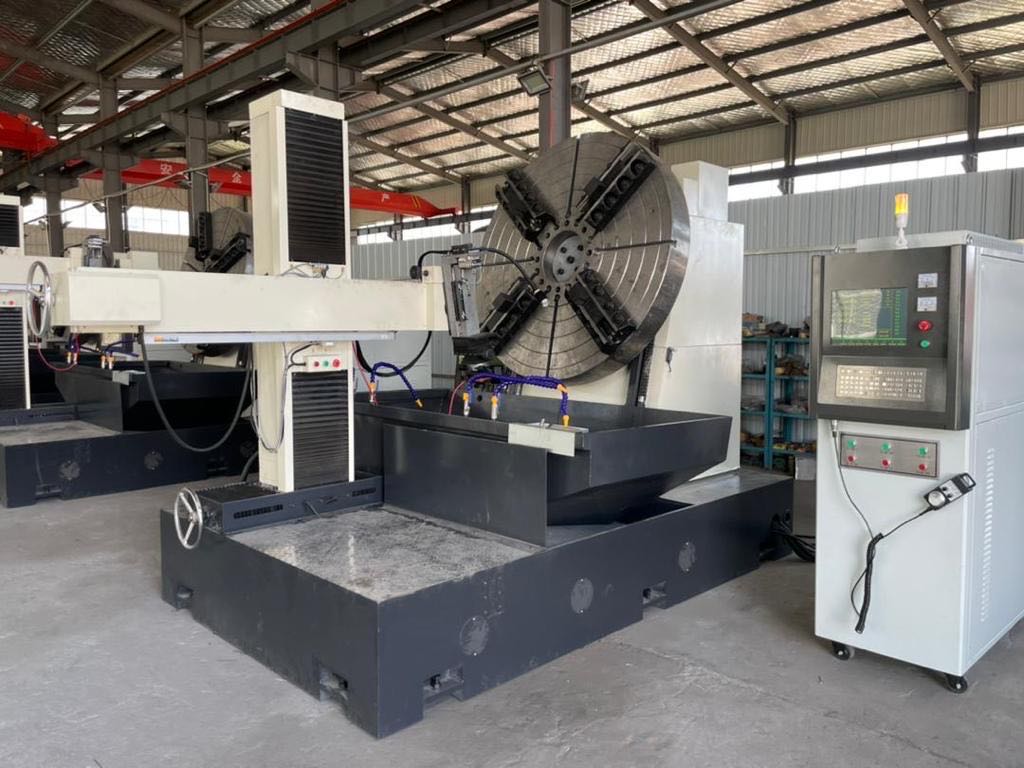

CNC EDM machine for sale with good quality
Model |
YF-EDM2500 |
Spindle head stroke Z-axis |
200mm |
Vertical column stroke |
1000mm |
Side-axis stroke |
1000-1200mm |
C-axis |
Rotary table 0-360° |
Oil tank stroke |
600mm |
Min.Processing diameter |
900mm |
Max.Job diameter |
OD 2500mm |
Max.Job weight |
4500kgs |
Min.Working current |
1 A |
Max.Working current |
120 A |
Min.Electrode consumption |
≤0.3% |
Min.Surface roughness |
0.3μm |
Chuck diameter |
1600mm |
