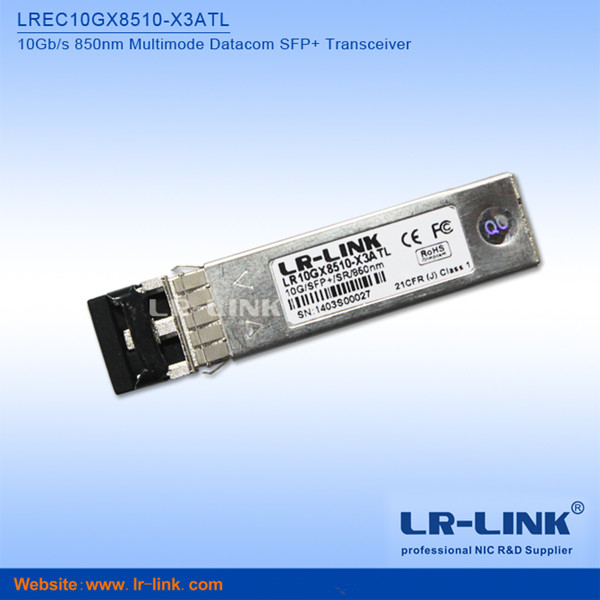

LREC10GX8510-X3ATL 10G SFP+ Transceiver
| Supply Ability: | 50,000 Set/Sets per Month |
|---|---|
| Shipping: | 2-15 working days, Shenzhen or HongKong, by DHL,TNT,EMS,Fedex |
| Payment Terms: | T/T, Western Union, MoneyGram, Other, paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | blister package |
Quick Details
- Model Number: LREC10GX8510-X3ATL
- Brand Name: LR-LINK
- Interface Type: 10G SFP+ Transceiver
- Style: External
- Type: 10G SFP+ Transceiver
- Application: Desktop,server
- Products Status: Stock
- product serise: 10G SFP+ transceiver
- speed: 10G SFP+ transceiver
Specifications
LREC10GX8510-X3ATL is a high performance, cost effective modules, which is optimized for 10G Ethernet, supporting data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50μm MMF(2000MHz·km).The transceiver consists of two sections: The transmitter section incorporates an 850nm VCSEL driver. The receiver section consists of a PIN photodiode integrated with a transimpedance preamplifier (TIA). The module is hot pluggable into the 20-pin connector.
The high-speed electrical interface is base on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module. The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver.
A serial EEPROM in the transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire SFP Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic (DD) data is held in the lower area while specific data is held in a series of tables in the high memory area.
Compliant with SFP+ MSA
Compliant with IEEE 802.3ae-2002
Compliant with FDA 21 CFR 1040.10 and 1040.11, Class I except for deviations pursuant
RoHS compliance
Features
transmission distance on 50μm MMF (2000MHz·km)
2-wire interface for integrated Digital Diagnostic monitoring
Very low EMI and excellent ESD protection
+3.3V power supply
Operating case temperature: 0~+70 Centigrade
Applications
10GBASE-SR
at 10.3125Gbps
Other optical links
Order Information:
|
Model No. |
Pack |
Rate |
Tx |
Pout |
Rx |
S |
Top |
Reach |
Others |
|
LREC10GX8510-X3ATL |
SFP |
10G |
850nm VCSEL |
-6.5 ~ -1dBm |
PIN |
<-11.1dBm |
0~70 centigrade |
300m |
DDM/RoHS |
PS: The above details are only for reference, if there is any change, no prior notice.
