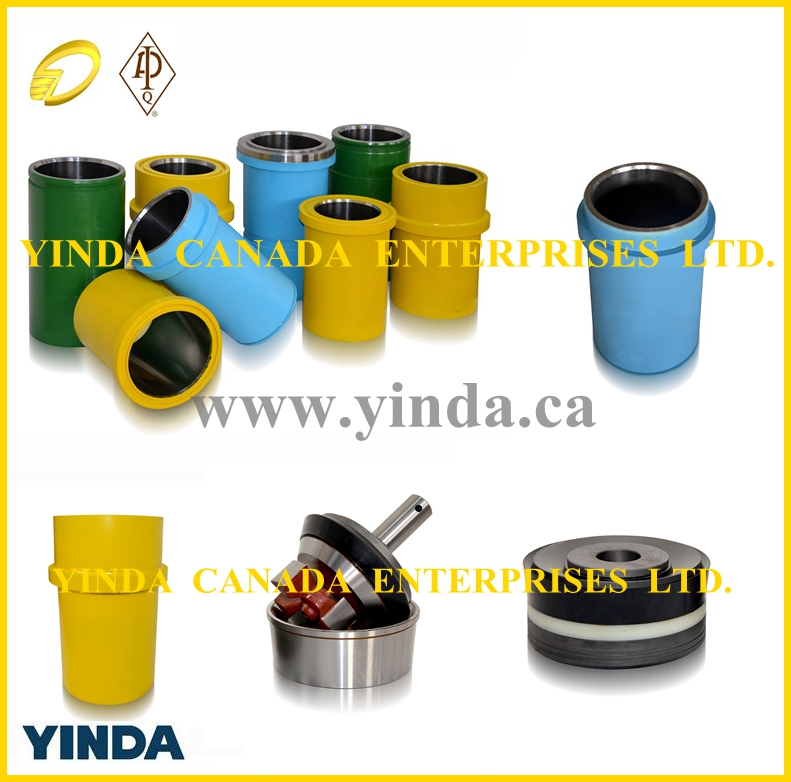

High-quality Mud Pump Parts of mud pump liner /valve assembly/piston assembly

Specifications

Nicked Base Alloy Cylinder Liner

   Material: The raw material is mixed B, Yb, C, Cr, Mn, Cu and other trace elements and rare earth

     Production Process: Our Company introduced the foreign advanced technology and manufactured the first nickel base alloy
cylinder liner of China, which has longer service life than other cylinder liner. Its technology is to cover the inner wall of the
cylinder liner with alloy by extrusion. And the service life of nickel base alloy cylinder liner is more than
2000 hours, up to 4000 hours.

      Application: The mud pump is the "heart" of the oil field drilling system, and cylinder liner is an important quick-wearing part
of mud pump.




 Valve Assembly

Material: The valve assembly consists of the valve and valve seat. Valve and valve seat are made of one-piece premium
forged alloy steel, and follow the manufacturing process specification directly to assure the good finish, accurate size.

Production Process: With the advanced heat treatment it features high ductility, high strength and the surface hardness
is up to HRC60.

Application: Valve assembly is the key to the mud pump hydraulic components, high working frequency, large impact, its
quality directly affects the service life of hydraulic cylinder


Piston Assembly
            Material:  The piston assembly is constituted by the piston core, rubber, spring, clamp, etc. Piston core is made of 42CrMo and the piston rubber is made of nitrile rubber or polyurethane rubber.
  Application: Piston assembly is one of the main parts of mud pump hydraulic system, but also the vulnerable part of drilling work. Mud pump discharge pressure is through the piston assembly by the piston reciprocating linear motion.
We manufacture mud pump liners for the pumps below and much more!
EMSCO:
F-500  F-800  F-1000  F1300  F1600  FB-1300  FB-1600  D-375  D-700
LS
3NB-1300C  3NB-1000  3NB-1000C  3NB-800
QINGZHOU:
SL3NB-1300A  QZ--1000  QZ-500  QZ-350  QZ800  SL3NB-1600
GARDNER DENVER:
PZ-7  PZ-8  PZ-9  PZ-10  PZ-11
IDECO:
T–500  T–800  T–1000  T–1300  T–1600
NATIONAl:
7-P-50  8-P-80  9-P-100  10-P-130  12-P-160 14-P-200 14-P-220 K-700  K-700A  K-500  K-500A
OILWELL:
A–350PT  A–560PT  A–600PT  A–850PT  A–1100P  A–1400PT  A–1700PT
RUSSIAN:
8T-650 UNBT-600 UNBT-950  UNBT-1180L  UNBT-950A  UBT-400 BT-600 UB-590 UNB-600  8T310 8T650-01 　
 　
     We can also provide mud pump parts ,include mud pump liner ,mud pump ceramic liner,mud
pump bimetal liner ,mud pump piston,mud pump piston assembly ,mud pump piston rod ,mud pump valve assembly ,mud pump valve,mud pump valve body and valve seat,mud pump valve rubber,,valve and seats,Plug Board Assembly,Clamp Assembly,Cylinder Head Plug,Cylinder Liner Gland ,Low guide,Oil Seal Ring,Wear Plate,Shear Safety Valve,Hoisting Device,Piston Rod,Pulsation Dampener Assembly,Steel Ring,Hydraulic Cylinder
     Please contact us!
