Stationary scissor lift platform carl lift with large loading capacity
| FOB Price: | 500.00 - 3,000.00 USD/Set |
|---|---|
| Supply Ability: | 800 Set/Sets per Month |
| Shipping: | 25 Working days from Qingdao port |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | According to the international standard |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: One year
- Certification: CE ISO9001 BV
- Weight: OEM
- Overall Dimensions: OEM
- Table Size: 2000*1500mm
- Max. Lifting Height: 4.5m
- Min. Lifting Height: 850mm
- Rated Loading Capacity: 1000kg
- Power: 3.0kw
- Lift Drive / Actuation: Hydraulic
- Lift Mechanism: Scissor Lift
- Model Number: ZTSJG 1.0-4.5
- Brand Name: ZHONGTIAN
- Keywords: Stationary scissor lift platform carl lift with large loading capacity
- Grade: First class
- OEM: Yes
- Voltage: 110v 220v 240v 380v optional
- Platform: Anti skid
- Main materials: Stainless steel
- Application: Cargo lift car lift
- Size and colour: Optional
Specifications
Stationary scissor lift platform carl lift with large loading capacity

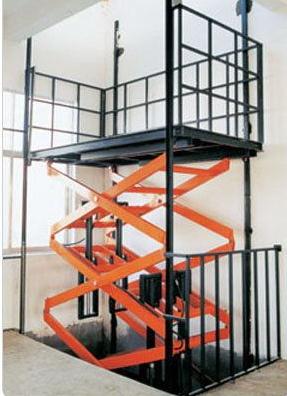

ZTSJG stationary scissor lift is the special hydraulic lift used for conveying cargos between building layers. The product is mainly used for conveying cargos up and down between workshops, warehouse and various working layers: lifting auto-mobiles between layers in stereo garage and understand garage. Product' hydraulic system has anti-falling and over-loading safety productive devices, and all layers and lift working face can set operating buttons to realize multi-point control.
Technical parameters:
| Model |
Lifting height (m) |
Lowered height (mm) |
Load capacity (kg) |
Table size (m) |
power (kw) |
Rising time (s) |
|
SJG 0.5-4.5 |
4.5 | 750 | 500 | 2*1 | 2.2 | 77 |
|
SJG 1.0-4.5 |
4.5 | 850 | 1000 | 2*1.5 | 3.0 | 80 |
|
SJG 2.0-4.5 |
4.5 | 900 | 2000 | 2.2*1.5 | 2.2 | 90 |
|
SJG 1.0-7.5 |
7.5 | 990 | 1000 | 2.2*1.8 | 3.0 | 100 |
|
SJG 2.0-7.5 |
7.5 | 1065 | 2000 | 2.4*2.4 | 4.0 | 105 |
|
SJG 2.0-1.8 |
1.8 | 700 | 2000 | 2.5*2 | 3.0 | 50 |
|
SJG 5.0-1.8 |
1.8 | 960 | 5000 | 3.5*2.5 | 4.0 | 88 |
Application:
It is used to lift up and down large cargo to different levels, normally in the assembly line and other cargo transferring.
Model:
Single scissor lift platform;Dual furcation lift platform;Multi-furcation lift platform;
