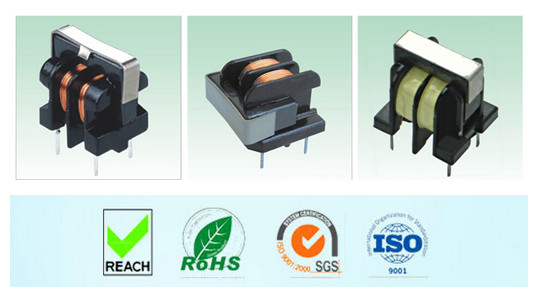

U type Vertical Common Mode Inductor common mode power filter UU9.8 EMI power line filter

FOB Price:	0.10 - 1.00 USD/Piece
Supply Ability:	500,000 Unit/Units per Week
Shipping:	15-30 days
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

ic,transistors,capacitors,resistors,inductor,co...

Price:

Min. Order:
Mini Ion Inductor (GL-12010)

Price:

Min. Order:500 Sets
High Current Inductor

Price:0.10-1.00 USD/Piece

Min. Order:1000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Packaging Detail: Standard carton or as customer's request

Quick Details

Model Number: AD980
Brand Name: AD.

Specifications

*Various U type are avaliable,UU9.8 UU10.5 UU16 UU21 transformers
*Welcome custom-design transformers.

Line filter Applications:

1.Suppresses noise in DC circuits for switching regulators.
2.Protects primary AC side form being affected by a switching regulators.
3.Filters electorstic noise from power and signal lines.
4.Eliminates contact noise.
5.Filters incoming spike noise for Ics and equipment using microcomputers.
6.Minimizes noise emissions for conforming to FCC,VCCI,FTZ,CISPR,JTTC andVDE.
7.Minimizes noise emissions from inverters.

Line filter Electrical Characteristics:
1.Operating Temperature range:-20 to +45
2.Storage temperature: -40 to +70
3.Switching frequency:1KHz to 200KHz
4.Withstanding voltage:1500Vac for 1 minute between primary&secondary
5.Insulation resistance:500Vdc 100MΩ min.between primar&secondary.

UU10.5

Part Number	Inductance (uH)	Rated Voltage (AC/DC)	Rated Current (Amp.)	DC Resistance Max.(mOHM)*	Test Voltage (VAC)**	Insulation Resistance Min.(M.OHM)***	Temperature Rise Max.()	Temperature Range ()
UU-10-103M-0.3A	1000020%	250V	0.3	3	2000	100	40	-25~120
UU-10-502M-0.3A	500020%	250V	0.3	2	2000	100	40	-25~120
UU-10-502M-0.5A	500020%	250V	0.5	1.5	2000	100	40	-25~120
UU-10-402M-0.7A	400020%	250V	0.7	1	2000	100	40	-25~120
UU-10-302M-1.0A	300020%	250V	1.0	0.5	2000	100	40	-25~120
UU-10-202M-1.0A	200020%	250V	1.0	0.5	2000	100	40	-25~120
UU-10-102M-1.3A	100020%	250V	1.3	0.4	2000	100	40	-25~120
UU-10-102M-1.3A	100020%	250V	1.3	0.3	2000	100	40	-25~120
UU-10-102M-1.5A	100020%	250V	1.5	0.2	2000	100	40	-25~120
UU-10-601M-2.0A	60020%	250V	2.0	0.2	2000	100	40	-25~120

Besides standard products and samples offering, we also accept customized services, if you have special requirement, please do not hesitate to contact us, YDS will be serve you in the most professional manner to meet your needs for customized products.
