4K 3 port HDMI switch audio amplifir, 3 in 1 out switcher, support PIP,MHL
| FOB Price: | 62.50 - 69.60 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | DHL,UPS,FedEx,TNT and etc. |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Other, paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | color box or customised |
Quick Details
- Model Number: HDSW3-A
- Brand Name: SFX
- Color: black
- hdmi version: 1.4b
- Type: HDMI switch&audio amplifier
- material: metal housing
- accessories: power adapter,user manual,remote
- warranty: 1 year
- Availability: in stock
Specifications

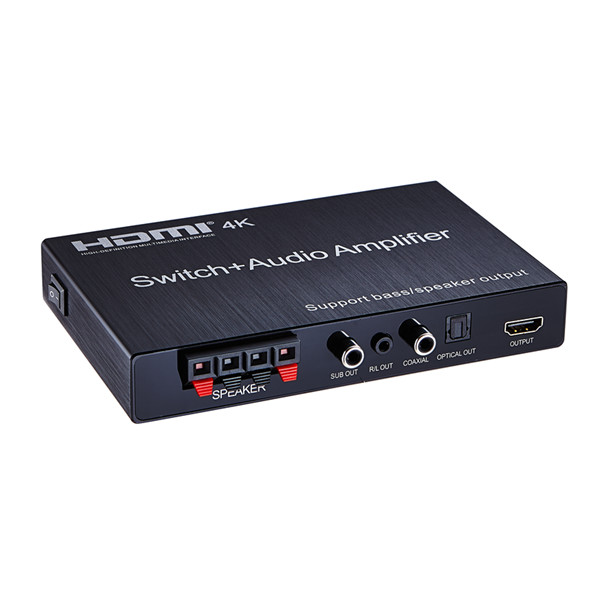

HDMI Switcher 3X1 with Audio Amplifier
Introduction:
This HDMI switcher 3x1 allows 3 HDMI sources to be switched to a single display terminal by remote control or buttons on switch.Support picture-in-picture (PiP ) video preview, which makes it simple and intuitive to switch. The HDMI 1 input support HDMI/ MHL dual-mode,available for the equipments with MHL interface. The resolution of this hdmi switcher is 3840X2160/30Hz.
In addition, the switcher can strip audio signal from HDMI signal, output via optical fiber, coaxial, and 3.5 mm headphone.Support heavy bass,integrating Amplifier,let users enjoy the excellent audio experience.
Special features:
* Switched seamlessly:
Switch one input source to the other input source quickly.With InstaPor technology, this product achieves seamless switching among input sources. and gets big advantages compared to the previous switcher which needs to wait for a period of time in the switching process.
* Picture-in-picture (PiP ) video preview
User can make an accurately switch via picture-in-picture (PiP ) video preview, no need to remember the input signal source of each input.
(Note: When the Resolution is 4Kx2K,the switcher does not support PiP function)
*HDMI/ MHL dual-model
HDMI1 is with MHL function, can show whatever in your smart phone.
Features:
l Support HDMI1.4b
l Support 3D video format
l Support the resolution up to 3840X2160/30HZ
l Support 3.2Gbps data rate for tmds clock up to 320MHz
l Support 8/10/12 bit deep color
l Support 2.1 audio signal power amplifier,up to 30W
l Support heavy bass
l With headphone both input and output,which support 2.1 audio channel
l With Optical and coaxial audio inputs,which support 5.1 audio channel
l Optical audio input
l Picture-in-picture (PiP ) function
l Switched seamlessly, Switch one input source to the other quickly
l Support HDMI/MHL dual-mode input
l 12V/5A power supply
Specifications:
| HDMI version | HDMI 1.4b |
| HDMI resolution | up to 3840x2160/30Hz |
| Support video format | 8/10/12 bit deep color |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 320MHz |
| Max Baud rate | 3.2Gbps |
| Input cable distance | (1080P mode)≤12M,(4K mode)≤10M AWG26 HDMI standard cable |
| Output cable distance | (1080P mode)≤20M,(4K mode)≤12M AWG26 HDMI standard cable |
| Max working current | 2.38 A |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC12V/5A |
| Operating temperature range | (-15 to +55℃) |
| Dimension(LxWxH) | 167x103x25 (mm) |
| Weight | 390g |
