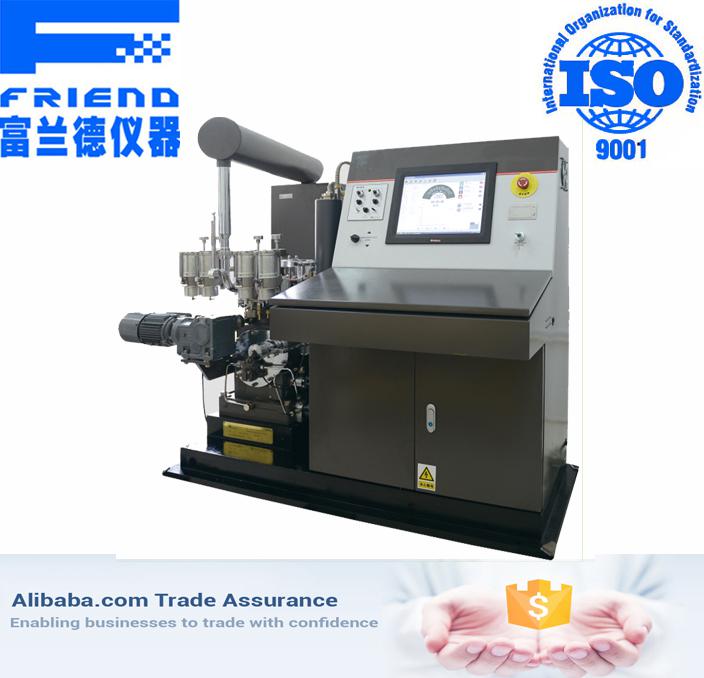

FDR-3561 Octane Analyzer (Motor / Research Method)

FOB Price:	100.00 - 200,000.00 USD/Set
Supply Ability:	200 Set(s) per Month
Shipping:	25 workdays by sea/air
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	standard wooden case

Quick Details

Brand Name: FRIEND
Certification: ISO
Type: electrical
Voltage(V): 220V
Output Power: 220V
Model Number: FDR-3561
Usage: Impact Testing Machine
Power: Electronic

Specifications

Scope

Applicable "Gasoline Octane machine assay (MON)" GB / T503, "Determination of the gasoline octane engine (research)" GB / T5487, and ASTM D2700, ASTM D2699

Features

1, using the FLD modular design, the motor method and research method can switch the two conditions;

2, the instrument supports interpolation commentary oil operation, the test results can be quickly calculated;

3, SE air filtration systems configured to provide standards-compliant clean, dry, heated gases;

4, Professional knock sensor signal FDT-DS uses the industry standard design, more stable and reliable;

5, Configure a special Friends knock detection system to ensure zero for knock signal, magnification, broadening adjust stability, precision instrument repeatability is less than 0.2 / R octane.

6, Using magnetic induction ignition, the test of detonation ignition time more precise.

7. Configure FAD security system for emergency protection under abnormal conditions, protect the safety of operating personnel;

8, the device uses user-friendly design, customers can demand, self-matching low-temperature test tank, and cooling water circulation system.

Technical Parameters

1, Measuring range: 30 to 100 octane

2, Compression ratio range: 4: 1 to 12: 1

3, Cylinder bore: 65mm

4, Piston stroke: 100mm

5, Engine speed range: 900 ± 9r / min (MON), 600 ± 6r / min (research method)

6, Machine rated power: 8000W

7, Power: 380 ± 10% VAC, 50 ± 1Hz, 220 ± 10% VAC, 50 ± 1Hz
