Bonded NdFeB magnet for dc motor

FOB Price:	1.00 - 1.50 USD/Piece
Supply Ability:	5,000 Ton/Tons per Year
Shipping:	shanghai
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	standard export packing by air or by sea

Quick Details

Application: Industrial Magnet

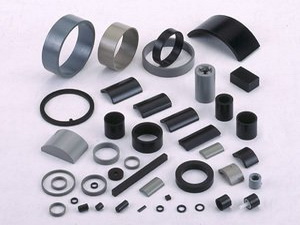

Shape: disc ring segment, block
Composite: Neodymium Magnet
Type: Permanent
Model Number: Hc & HI series
Brand Name: mas magneitcs
Br(mT): 500~630
HcB(KA/m): 320~1120
BH(max)MGOe: 3.0~7.5

Specifications

Bonded NdFeB magnet

Brief

Bonded NdFeB can be divided into compression NdFeB and Injection NdFeB. Our bonded NdFeB have the advantages as follows:

1. Advanced granulating equipment and technology introduced from Japan and America provide customer with powerful technical
and quality support

2. Provide customers with absolute price competitiveness through strict quality control and effective cost reduction in mass production.

3. Advanced anisotropic molding equipment has been introduced, capable of producing anisotropic magnets with multi-polar and radial
magnetization properties.

4. Magnets of many complex shapes are available, including high-precision gear, annular thin wall and other special shapes. Those magnets
can be injected with various components.

5. It can be used to produce injection bonded NdFeB and combined with outer iron rings.

6. With leading technology, various anti-corrosion treatments can be provided tailored to customer requirements.

7. It can be used to produce high-precision one-shot forming die with the dimensions provided by customers.

8. Advanced chemical and physical tests ensure quality of the products

9.To protect the rights of customers, product molds are all designated for specific customers

Bonded Compression NdFeB

TYPE	GRADE	Br	(BH)max	Hci	Hcb(min)	D	α(25-100℃)	β(25-100℃)
TYPE	GRADE	mT (KG)	KJ/m3 (MGOe)	KA/m (KOe)	KA/m (KOe)	g/cm3	(%/℃)	(%/℃)
High Br	HC-B	660-700 6.6-7.0	69.6-80.0 8.7-10.0	640-720 8.0-9.0	392 4.9	6.0	-0.11	-0.40
High Br	HC-B+	680-710 6.8-7.1	76.8-84.0 9.6-10.5	720-800 9.0-10.0	440 5.5	6.0	-0.11	-0.41
High Hcj	HC-A	590-640 5.9-6.4	60.0-68.0 7.5-8.5	1040-1200 13.0-15.0	400 5.0	6.0	-0.12	-0.38
	HC-A1	600-640 6.0-6.4	64.0-72.0 8.0-9.0	1040-1120 13.0-14.0	400 5.0	6.0	-0.12	-0.40
	HC-C	590-620 5.9-6.2	60.0-68.0 7.5-8.5	1200-1360 15.0-17.0	400 5.0	6.0	-0.07	-0.42
High Stability	HC-D	640-6806.4-6.8	70.4-76.0 8.8-9.5	720-800 9.0-10.0	432 5.4	6.0	-0.08	-0.39
	HC-O	600-640 6.0-6.4	61.6-68.0 7.7-8.5	880-1040 11.0-13.0	416 5.2	6.0	-0.13	-0.37
	HC-14-12	640-970 6.4-6.7	68.0-73.6 8.5-9.2	880-1040 11.0-13.0	440 5.5	6.0	-0.14	-0.37
Easy magnetization	HC-15-7	680-740 6.8-7.4	75.2-88.0 9.4-11	520-560 6.5-7.0	400 5.0	6.0	-0.11	-0.39
Easy magnetization	HC-16-7	710-770 7.1-7.7	80.0-96.0 10.0-12.0	536-576 6.7-7.2	424 5.3	6.0	-0.08	-0.52
Common	HC-13-9	600-640 6.0-6.4	60.8-68.0 7.6-8.5	640-720 8.0-9.0	400 5.0	6.0	-0.12	-0.43
	HC-M11	620-670 6.2-6.7	56.0-64.0 7.0-8.0	680-760 8.5-9.5	368 4.6	6.0	-0.12	-0.43
	HC-L9	600-650 6.0-6.5	48.0-56.0 6.0-7.0	640-720 8.0-9.0	336 4.2	6.0	-0.12	-0.43
Data are measured at room temperature (23℃)

Bonded Injection NdFeB

Type	Grade	Br	(BH)max	Hci	α(25-100℃)	α(25-100℃)
Type		mT (KG)	KJ/m³ (MGOe)	KA/m (KOe)	(%/℃)	(%/℃)
High Br	HI-B	550 5.5	52.0 6.5	720 9.0	-0.11	-0.40
High Br	HI-B+	610 6.1	60.0 7.5	720 9.0	-0.11	-0.40
High Hcj	HI-A	510 5.1	44.0 5.5	1040 13.0	-0.12	-0.40
	HI-A1	500 5.0	44.0 5.5	1120 14.0	-0.12	-0.40
	HI-C	500 5.0	48.0 6.0	1280 16.0	-0.07	-0.40
High stability	HI-D	540 5.4	52.8 6.6	800 10.0	-0.07	-0.40
	HI-O	510 5.1	46.4 5.8	1040 13.0	-0.12	-0.40
	HI-14-12	540 5.4	50.4 6.3	960 12.0	-0.14	-0.37
Easy magnetization	HI-15-7	580 5.8	56.0 7.0	520 6.5	-0.11	-0.40
	HI-E	600 6.0	40.0 5.0	320 4.0	-0.13	-0.43
	HI-16-7	630 6.3	60.0 7.5	520 6.5	-0.08	-0.52
common	HI-14-10	540 5.4	48.0 6.0	760 9.5	-0.12	-0.39
	HI-13-9	530 5.3	48.0 6.0	736 9.2	-0.12	-0.40
	HI-M1	530 5.3	44.0 5.5	680 8.5	-0.12	-0.40
	HI-M2	500 5.0	36.0 4.5	640 8.0	-0.12	-0.40
	HI-L	350 3.5	24.0 3.0	640 8.0	-0.12	-0.40
Data are measured at room temperature (23℃)
