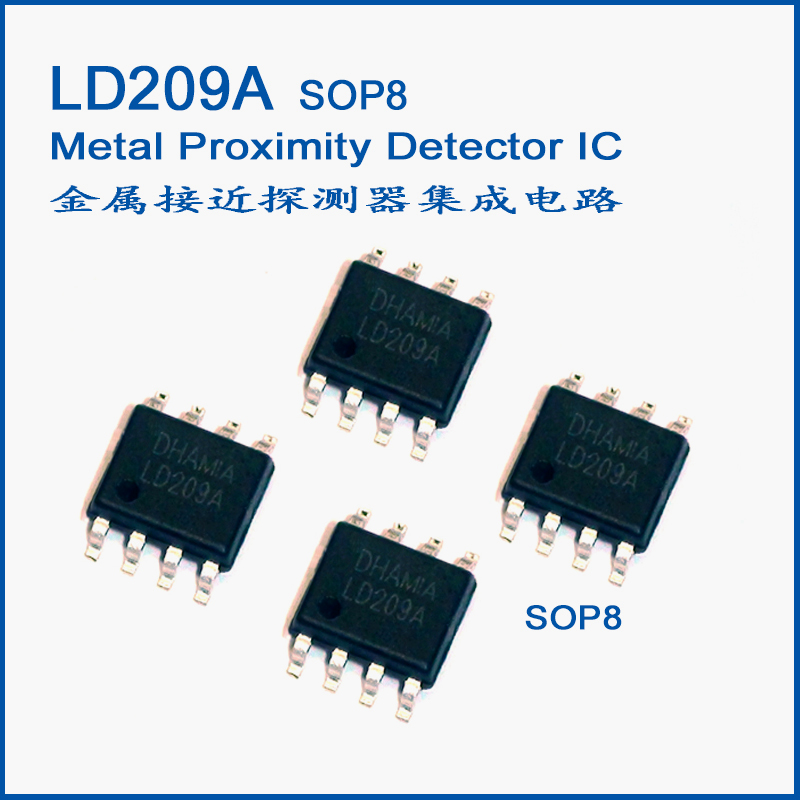

LD209A Auto Metal Proximity Detector IC CS209A SOP8
| FOB Price: | 0.65 - 0.66 USD/Piece |
|---|---|
| Shipping: | 3 days after payment |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
| Packaging Details: | tape and reel or tube packing |
Quick Details
- Supply Voltage: 12V 24V
- Application: auto detector
- Model Number: LD209A
- Brand Name: DHA
- Packadge: SOP8
Specifications
Description
The LD209A (analog CS209A) is a bipolar monolithic integrated circuit for use in
metal detection/proximity sensing applications.
The IC (see block diagram) contains two on-chip current regulators, oscillator and
low-level feedback circuitry, peak detection/demodulation circuit, a comparator and
two complementary output stages.
The oscillator, along with an external LC network, provides controlled oscillations
where amplitude is highly dependent on the Q of the LC tank. During low Q conditions,
a variable low-level feedback circuit provides drive to maintain oscillation. The peak
demodulator senses the negative portion of the oscillator envelop and provides a
demodulated waveform as input to the comparator. The comparator sets the states of
the complementary outputs by comparing the input from the demodulator to an internal
reference. External loads are required for the output pins.
A transient suppression circuit is included to absorb negative transients at the tank circuit terminal.
Features
● Separate Current Regulator for Oscillator
● Negative Transient Suppression
● Variable Low-Level Feedback
● Improved Performance over Temperature
● 6mA Supply Current Consumption at VCC = 12V
● Output Current Sink Capability: 20mA at 4VCC
100mA at 24VCC
1. Auto/moto flasher relay IC LT4761 LD1041 U2043B L2044L LD1204
2. Auto windshield wiper blade control IC U641B U642B LD33197
3. Auto high energy/hall electronic ignitor IC LD3334 LD3335 LD497 LD79076
4.Moto magnetic signal ignition control IC
5.Auto rear windows heating timer LD6046
6.Auto metal proximity detector IC LD209A
7.Hall sensors
8.PWM lights control IC (available for backlight of auto instrument ) LD6083B
9.Power darlington transistor BU931ZT BU941ZT 2SD1071 TIP142 TIP147
10.Current regulative diode
More products pls browse our website.
