HD IP Dome CCTV CAMERA For DTS-60EIP

Model NO.

DTS-60EIP3

DTS-60EIP2A

DTS-60EIP2

DTS-60EIP1

DTS-60EIP

Camera

Image Sensor

AR0330

AR0130

AR0130

OV9715

OV9712

Main processor

3518C

3518E

3518C

3518C

3518E

Resolution

1080P

960P

960P

720P

720P

Effective Pixels

1920*1080P

1280*960P

1280*960P

1280*720P

1280*720P

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec

Sync System

External

Usable Illumination

0.01Lux

0.01Lux

0.01Lux

0.01Lux

0.01Lux

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Lens

Focus Length

2.8-12mm

Focus Control

Manual

Lens Type

Manual

Pixels

2.1 Mega Pixel

1.3 Mega Pixel

1.3 Mega Pixel

1.0 Mega Pixel

1.0 Mega Pixel

Night Vision

Infrared LED

￠5X36PCS

Infrared Distance

30M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS

ONVIF

Support ONVIF 2.4

P2P

YES, Support QR Code

POE

Optional, Support IEEE 802.3af

WIFI

N/A

Video Delay

0.3S (Within the Lan)

Main Stream

1920*1080

1280*960

1280*960

1280*720

1280*720

Sub Stream

704*576,

704*576,

704*576,

704*576,

704*576,

352*288

352*288

352*288

352*288

352*288

IE Brower

IE6-11

Smart Phone

iPhone, iPad, Android, Android Pad

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Compression

H.264/JPEG,Support record AVI format.

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR ,White Balance, BLC, FLK (Flicker Control)

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

DWDR

YES

YES

YES

YES

YES

Recording Mode

NVR/NAS/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German,

Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian

General

Housing

Metal

Bracket

NO,Without Bracket

IR Cut Filter

YES

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 1000mA

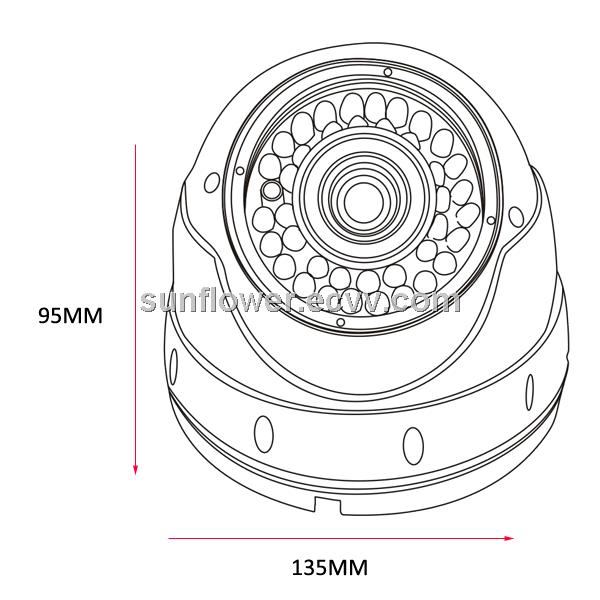

Dimension

￠135 x 95(H) mm

Weight

800g
