Yancheng Shunyu Agricultural Machinery Co., Ltd.
China Manufacturer with main products: Jinma Tractors, Jinma Tractors Parts, Dongfeng Tractors Parts, Foton Tractors Parts, Yangdong Diesel Engines, Xinchai Diesel Engines, YTO... |

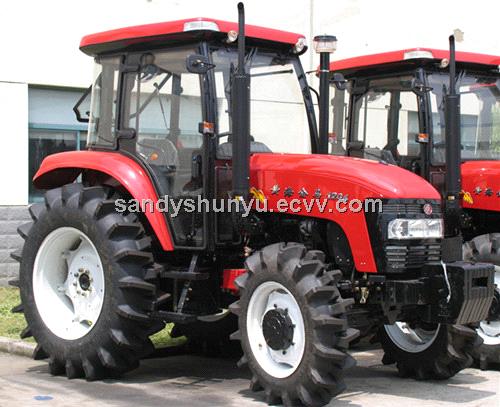

120HP 4WD big power Tractor Jinma agricultural tractor
| FOB Price: | 10,000.00 - 20,000.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece/Pieces per Month |
| Shipping: | 30 days after receiving the payment |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | packed in iron frame or as you needed |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: 1204 4wd tractor
- Brand Name: JINMA/OEM Tractor
- Condition: New
Specifications
We are manufacturer of Tractors and parts.
We also offer OEM and welcome to send us your drawing or sample.
120HP 4WD Farm tractor prices for sale.
Agricultural tractor china 4WD Tractor for sale.
<
| JINMA 1204 Four Wheel Tractors Technical Parameters | |||
|
Tractor Parameters |
Model | JM1204 | |
| Drive Type | 4WD | ||
| Overall Dimensions L*W*H(mm): | 4800*2330*2980 | ||
| Wheel Track (mm) | Front | 1808-2148 | |
| Rear | 1656-2156 | ||
| Wheel Base(mm) | 2689 | ||
| Ground Clearance (mm) | 475 | ||
| Rated Traction Force(N) | 26000 | ||
| Construction Mass(kg) | 4600 | ||
| Min.Turning Radius(m) | 6.8 | ||
|
Speed (Without creeper gear(km/h) |
Forward |
2.24,3.34,4.06,6.34,4.76,7.08,8.61,13.46, 10.37,15.43,18.77,29.32 |
|
| Reverse | 4.84,7.21,8.76,13.69 | ||
|
Engine Specifications |
Model | LRC6108T79 | |
| Type | 6 -cylinder 4-stroke cycle wter cooled | ||
| Rated Power(kw/hp) | 88.2/120 | ||
| Rated Speed (rpm) | 2400 | ||
| Bore*Stroke(mm) | 108*135 | ||
| Total Displacement(L) | 7.41 | ||
|
Drive System |
Clutch | Dual stage | |
| Gear Box | 4*(3+1)Sleeve gear shift | ||
| Main Drive | One pair of spiral bevel gearing | ||
| Differential | Bevel gear | ||
| Differential Lock | Sliding pin,foot operated | ||
| Final Transmission | Planeatry reduction gear | ||
|
Travelling Mechanism |
Tyre | Front | 14.9-24 |
| Rear | 18.4-38 | ||
| Steering Gear | Hydraulic steering | ||
| Brake | Oil immersed multiplate disc | ||
|
Working Device |
Hydraulic System |
Lifting Capacity at 610mm Behind Lift Pioint (kN) |
26000 |
| 3-Point Suspension | Category:II | ||
| P.T.O Shaft | Rotating Speed (rpm) | 540 OR 1000 | |
| Spline Size | 21-φ35 involute spline | ||
| OPTIONS | Synchronizer gear,fans,heating,and air-conditioned cab | ||
