Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Dimension(L*W*H): 10955*2500*3990
- Brand Name: Dongfeng
- Condition: New
Specifications
1.Introduction
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in China in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.
We export commercial vehicles cover all series of Dongfeng Brand.
Dump Truck Series
Cargo Truck Series
Tractor Series
Special Purpose Vehicles
Military Vehicle Series
Passenger Vehicles Series
2.Feature
l The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfortability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also bring down the drag coefficient to reduce the fuel consumption.
l The engine: The tractors used Cummins engine which provide excellent gradeability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.
l The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent trafficability and adaptability to various vile roads.
l The gearbox: The Fast Brand gearbox adopt serration processing technology to lower the noise and vibration and increase the reliability.
3.Specification
Warranty Period: 12 months(calculating from the date the vehicle arrives at the destination port) or 30,000 kilometers, whichever comes first.
| Drive mode | 8×4 | |
| Engine | Model | L375 30 |
| Type | 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR | |
| Max. power(Kw/rpm) | 276/2200 | |
| Max. torque(N.m/rpm) | 1480/1400 | |
| Displacement(ml) | 8900 | |
| Type of fuel | Diesel | |
| Compression ratio | (16.6±0.5):1 | |
| Cab | D310-S1 | single berth |
| Gearbox | Model | 9JS150T-B |
| Max.torque(N.m) | 1500 | |
| Clutch | Φ430mm | diaphragm spring clutch |
| Frame Height×Width× Thickness(mm) | 300×90×(8+8) | |
| Frame width 940 (front ), Frame width 800 ( rear ) | ||
| Tyre | Size | 12.00-20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension (mm) | 10955×2500×3990 |
| Wheel base (mm) | 1850+3400+1350 | |
| Front/Rear tread(mm) | 2027/2027,1820/1820 | |
| Appr./Depa. angel (°) | 25/20 | |
| Min. ground cleanrance(mm) | 250 | |
| Mass | Payload(Kg) | 16565 |
| Curb weight(Kg) | 14305 | |
| G.V.W(Kg) | 31000 | |
| Performance | Max. speed(Km/h) | 85 |
| Max. gradeability(%) | 40 | |
| Min. turning diameter(m) | 20 | |
| Fuel consumption(L/100Km) | 38 | |

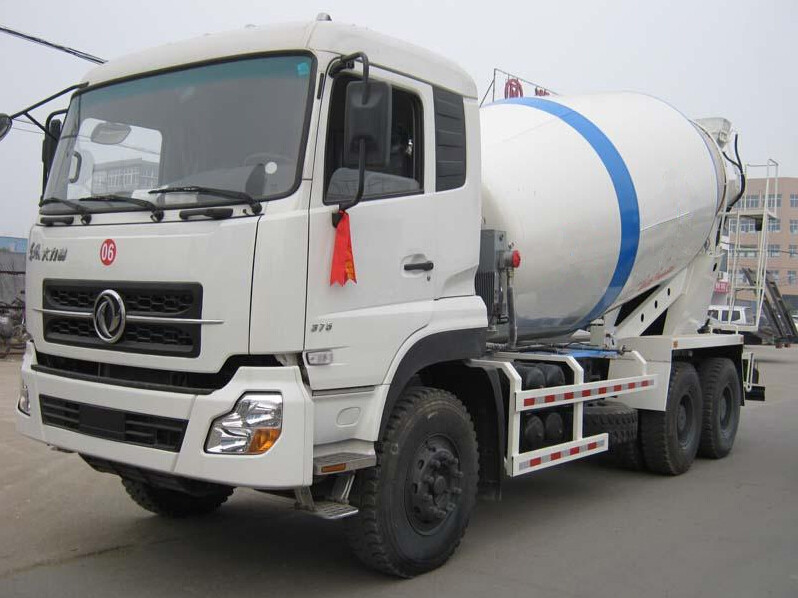

| Special function | Mixing capacity(m3) | 14 |
| Angel of inclination of mixing drum(°) | 13 | |
| Geometric volume(m3) | 19.2 | |
| Filling ratio(%) | 58 | |
| Feeding speed(m3/min) | ≥3 | |
| Discharge speed(m3/min) | ≥2 | |
| Residual ratio(%) | <0.8 | |
| Collapsed degree range(mm) | 40-230 | |
| Hydraulic pump | MA4VG90, Italy | |
| Hydraulic motor | MF090W, Italy | |
| Decelerator | 577L3131AX1A, Italy | |
