Qingzhou Haiyu Industry Co., Ltd.
China Manufacturer with main products: Concrete Pole Machine, Concrete Pipe Machine, Supporting Machine |
electrical concrete pole machine
| Supply Ability: | 10 Set/Sets per Week |
|---|---|
| Shipping: | Qingdao port |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Packaging Details: 40HQ With wooden box Delivery Detail: 20-50days after advanced payment |
Quick Details
- Model Number: HY56Q
- Brand Name: HAIYU
- warranty: 12 monthes
- certification: CE,ISO
- after service: turn-key service
Specifications

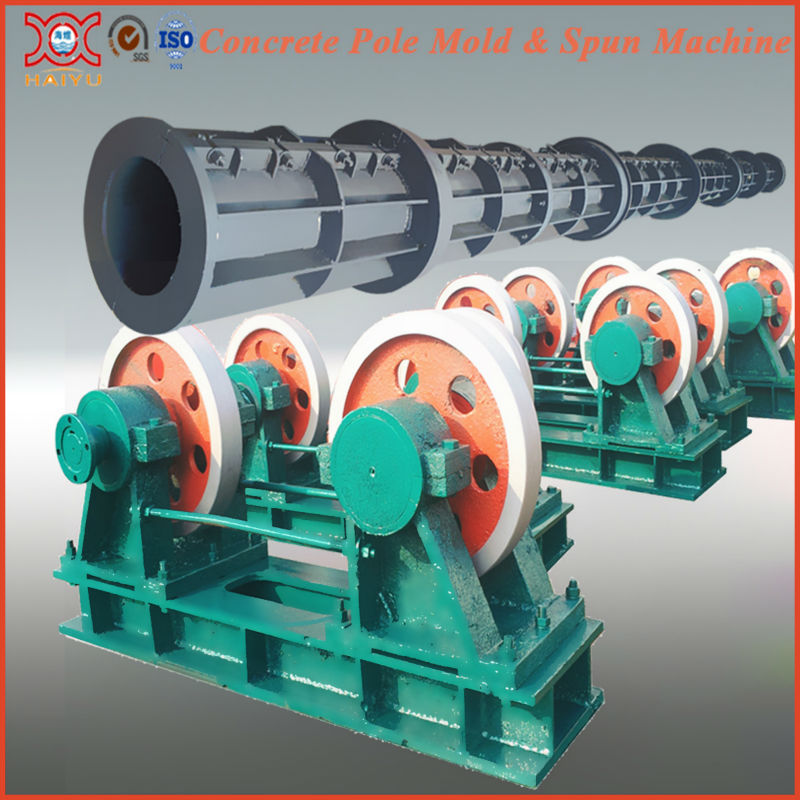

1. Overview of Concrete Spun Pole Spinning Machine
Centrifugal spinning machine for prestressed spun concrete electrical pole is a kind of mold equipment, which is used for producing reinforced concrete poles and other cement products with a variety of different diameter and length.
Centrifugal spinning machine for prestressed spun concrete pole is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes are good of quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are well sealed and reliable, long service. Random electric control equipment is complete and easy to operate.
2. Technical Parameter of Concrete Spun Pole Spinning Machine
| Pole Mold Diameter (mm) | Spinning wheel pitch(mm) | Running wheel diameter (mm) | Mold Length (m) |
| 150 | 2000 | 600 | 7-12 |
| 170 | 2000 | 600 | 7-12 |
| 190 | 2000 | 650 | 7-15 |
| 230 | 2000 | 650 | 6-9 |
| 300 equal diameter | 2000 | 600 | 6-9 |
| 350 equal diameter | 2000 | 650 | 6-12 |
| 30 | 2000 | 650-780 | 6-15 |
3. Features of Concrete Spun Pole Spinning Machine
3.1 Saving a great deal of steel, about 30~70% (employ cold-drawn steel wire can save 30%~60%; employ high stress steel wire can save 40%~69%).
3.2 Crack resistance can increase by about 3~5 times.
3.3 Rigidity increases 1~3 times.
3.4 Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
3.5 Good durability, can delay the existence and expansion of cracks.
3.6 Protect the environment on which human beings depend on for existence, and reduce the deforestation.
