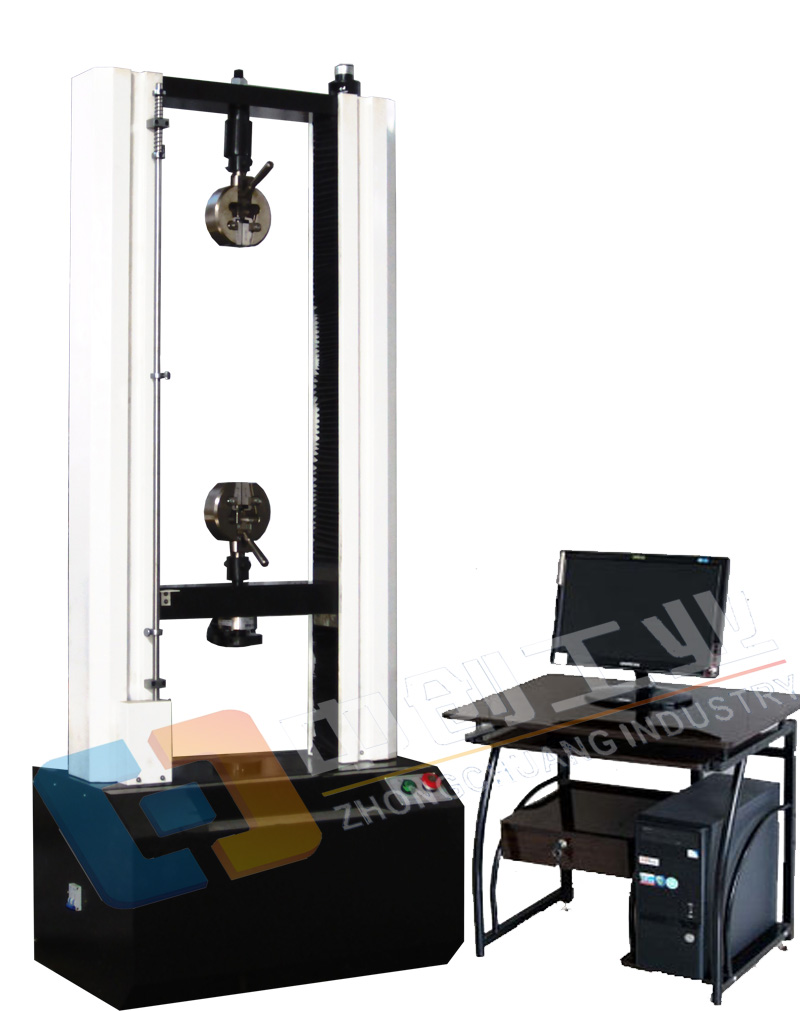

100kN Computer Control Brake Pad Shear Test Stand
| FOB Price: | 1.00 - 1,111.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set/Sets per Day |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden packaging |
Quick Details
- Usage: Universal Testing Machine
- Power: Electronic
- Model Number: ZCSC-100kN
- Brand Name: Zhongchuang Industry
- Max test force: 100kN
- Main machine type: double-column frame structure
Specifications
The testing machine is specially made to do shear strength test for road vehicles-brake linings-disc brake pad and drum brake shoe assemblies according to the People's Republic of China National Standard GB/T 22309-2008 Road vehicles -- Brake linings -- Shear test procedure for disc brake pad and drum brake shoe assemblies, which is equated according to ISO 6312-2001. The testing machine is equipped with the special brake shear fixture, and add other fixtures, can realize other mechanical performance test.
Main Technical Specification:
1.Max test force: 100kN
2.Measuring range: 1%—100% of max test force
3.Precision grade of testing machine: Grade 1
4.Accuracy of test force: Superior to ±1% of indicating value
5.Measurement of beam displacement: The resolution is 0.01mm
6.Accuracy of deformation: Superior to±1%
7.Speed adjustable range: 0.01-500mm/min
8.Test space: 600mm
9.Main machine type: double-column frame structure
10.Size of main machine: 840×600×1850mm
11.Weight: about 500Kg
12.Working environment: room temperature～45℃, humidity 20%～80%
