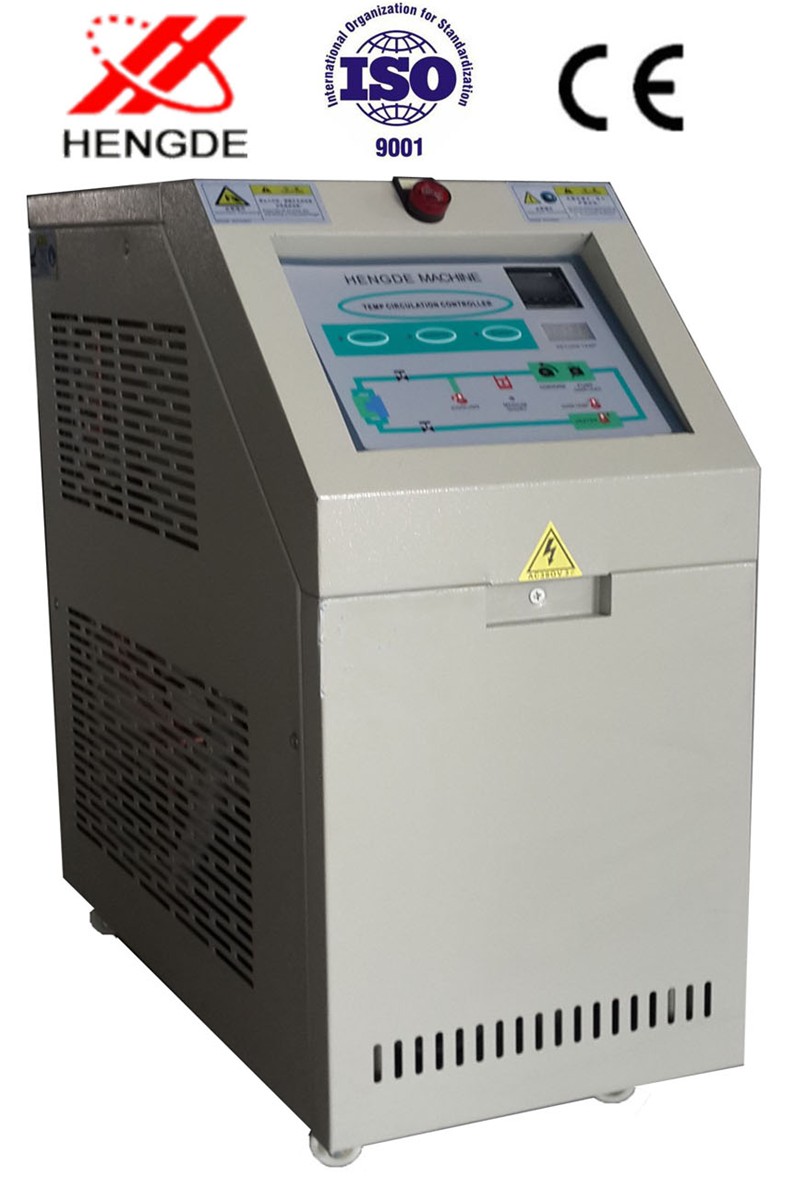

oil cycle-type mold temperature

FOB Price:	1,200.00 - 1,600.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	shanghai
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Vibrating Table for Molds

Price:1,000.00-10,000.00 USD/Set

Min. Order:1 Set
Mold Making CNC Machine-Ray Fine

Price:

Min. Order:1 Set
(MG50620) Timing Adjustment Kit-RENAULT-VOLVO 2...

Price:

Min. Order:300 Sets
Hardwares and steel or plastic moulds

Price:8.00-20,000.00 USD/Unit

Min. Order:1 Unit
Addition Cure Rtv2 Liquid Silicone for Making M...

Price:8.25 USD/Kilogram

Min. Order:200 Kilograms

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wooden

Quick Details

After-sales Service Provided: No overseas service provided
Certification: CE, ISO-9001
Power(W): 6000
Internal Piping Size: 1/2
Weight: 62KG
Dimension(L*W*H): 620*325*680
Temperature Control Accuracy: 1
Temperature Range: 200
Model Number: HOS-05
Brand Name: HENGDE
Type: Oil Temperature Machine
Condition: New

Specifications

Application:

The oil temperature machine is suitable for the auxiliary production engineering plastic material, plastic products. The oil temperature machine first preset to the temperature needed for injection mold, a lot of time for the high quality product, reduce the raw material test. Mold temperature machine accurately to reduce waste, the quality and production, is an indispensable tool in injection molding industry. It is mainly applied to heating up and temperature maintenance of mold. It also can be applied to other fields with the same demands. High temperature oil from the mould is returned to the cooler for indirect cooling. Then the oil will be sent to the mold after being pressurized by pump and heater pipe, which realizes heating and temperature maintenance of the oil. In addition it can ensure stable temperature control with the type of controller.

Working principle:

The oil temperature machine is based on oil as a medium of heat transfer of mold temperature machine. The oil temperature machine has an oil storage tank. It is an cycle that heat conduction oil from oil storage tank into the system at work by the circulation pump into the mold or other need to temperature control equipment. And then the heat conduction oil from the temperature control equipment will returns to the system again. When the temperature is lower than the set value, the heater began to work, when the temperature after reaching the set value, and stop working. In the process, if the oil temperature is too high, the system will activate the solenoid value to let cooling water cool down the temperature directly until the water is down to the system requirement. If the temperature keeps increasing and reach to the set point of EGO, system will sound high pressure alarm and stop operation. if oil pressure falls down below the set point the system will send a signal of low level alarm and stop working.
