Specifications
General

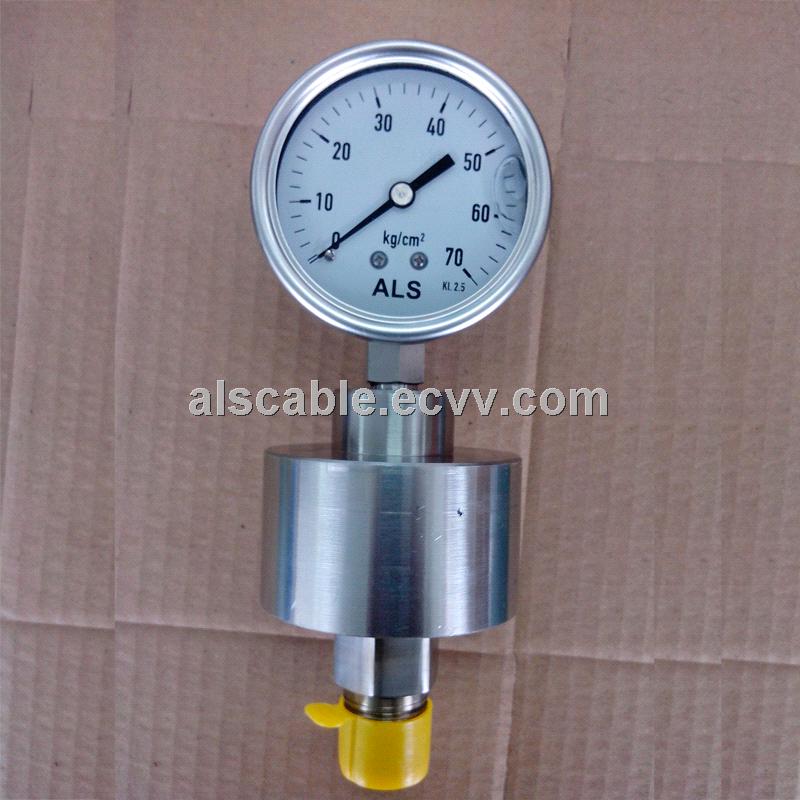

YTP diaphragm pressure gauge is used to measure medium with high corrosive, high temperature, easy to condensate characteristics. It is usually used in petrol, chemical, pharmaceutical, food processing and other industries.
Selection of diaphragm
Corrosive resistant performance can be guaranteed by the selection of diaphragm, flange, and sealing materials.
Diaphragm: SS316, SS316L, Cu30Ni70, H276C, Ta, F4
Flange: SS304, SS316, 316+F4
Sealing ring: butadiene-acrylonitrile rubber, fluororubber, silicon rubber, fluoroplastic
|
|
||||||
|
Filled fluid |
Diaphragm temperature range (℃) |
Working temperature (℃) |
||||
|
Low viscosity silicon |
-40 - +130 |
-30 - +50 |
||||
|
High viscosity silicon |
-30 - +240 |
-20 - +60 |
||||
|
*Fluid can be customized |
||||||
|
Specification |
||||||
|
Product |
Model |
Accuracy |
Measuring Range (MPa) |
Process Connection |
||
|
Diaphragm pressure gauge |
YTP-60ML |
2.5 |
0-0.1-6 |
M14*1.5 |
||
|
YTP-100ML |
1.6 |
0-0.1-40 |
M20*1.5 |
|||
|
YTP-150ML |
1.6 |
M20*1.5 |
||||
|
YTPF-100MF |
1.6 |
0-0.1-10 |
open flange |
|||
|
YTPF-150MF |
1.6 |
|||||
|
YTPF-100MG |
1.6 |
0-0.1-10 |
I flange |
|||
|
YTP-150MG |
1.6 |
|||||
|
YTP-100GL |
1.6 |
0-0.1-10 |
tangle flange |
|||
|
YTP-150GL |
1.6 |
|||||
|
YTP-100GL |
1.6 |
0-0.1-10 |
flexible pipe |
|||
|
YTP-150GL |
1.6 |
|||||
|
Hygiene diaphragm pressure gauge |
YTP-100MC |
1.6 |
0-0.1-1.6 |
carrier |
||
|
YTP-150MC |
1.6 |
|||||
|
*Specifications can be customized |
||||||
