Mold Making CNC Machine-Ray Fine
| Supply Ability: | 200 Set/Sets per Month |
|---|---|
| Shipping: | Qingdao port,China |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | plywood case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Model Number: RF-3030-M
- Brand Name: RAY FINE
Specifications

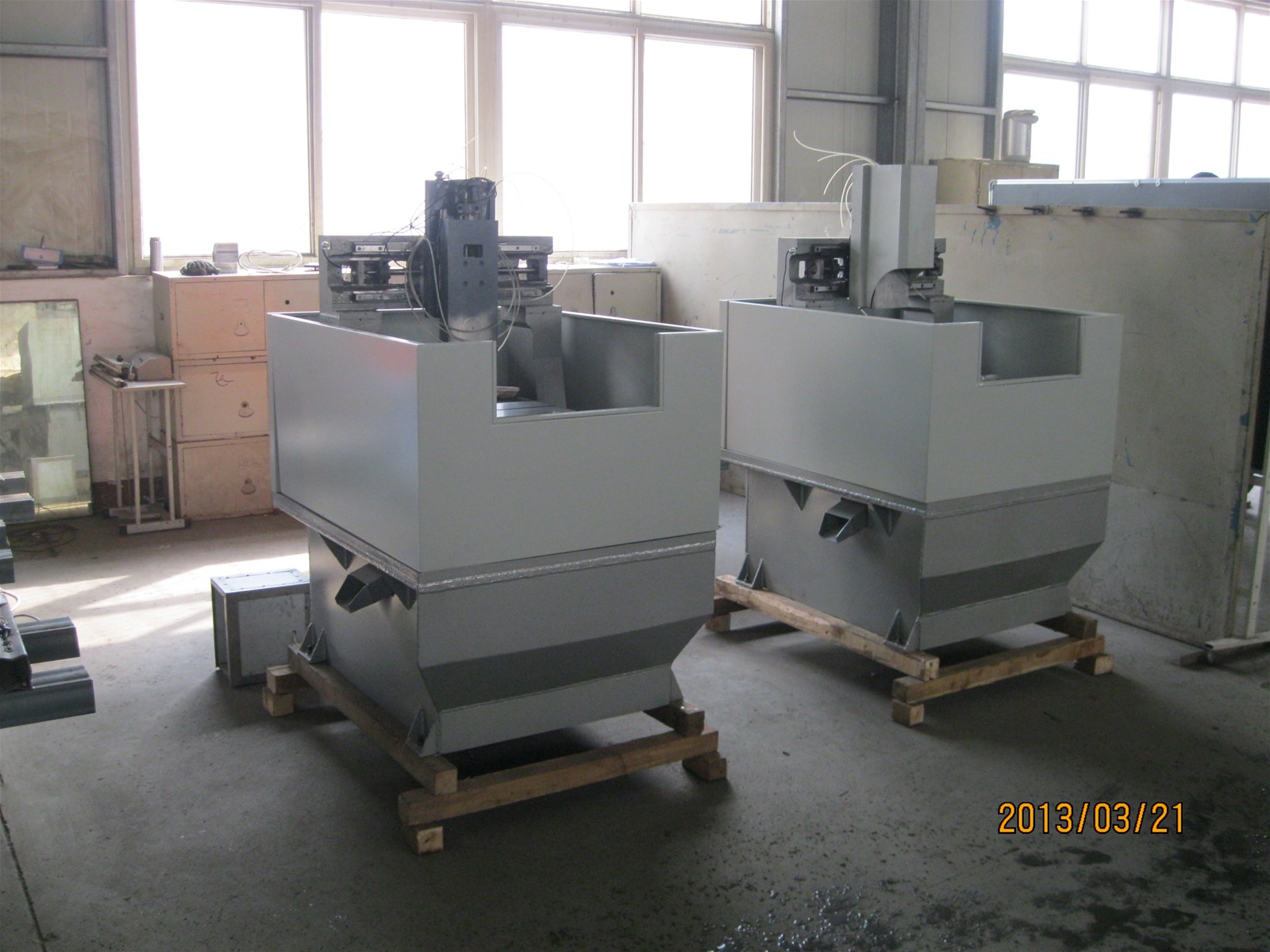

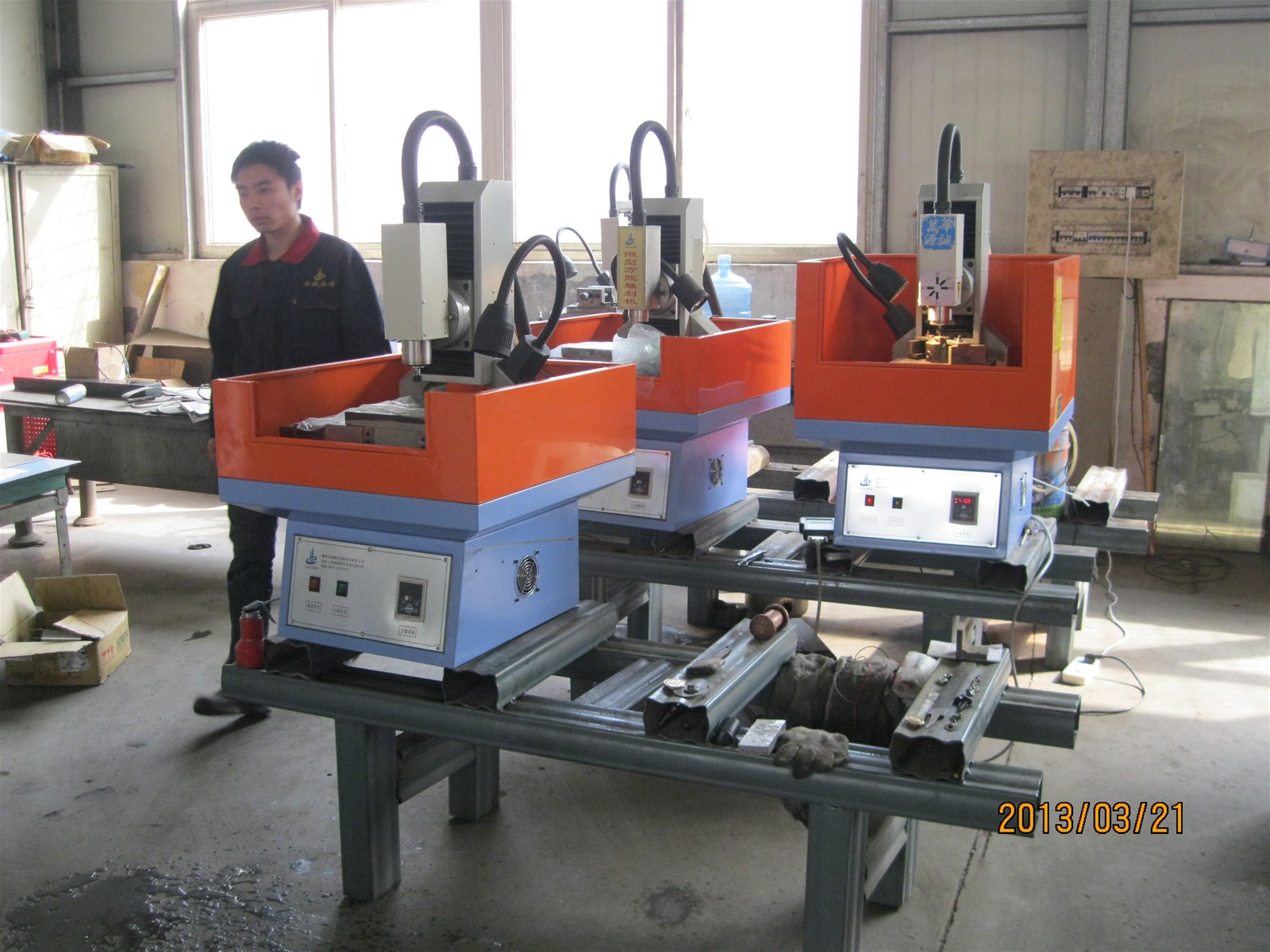

Metal mold making CNC machine RF-3030-M Detailed
|
Model |
RF-3030-M |
|
X-Y-Z axis work area |
300×350×120mm |
|
table size |
300×300mm |
|
Machine body |
Cast iron and all installed parts grinded with advanced grinding machine also under two times heat treatment |
|
XYZ drive machinism |
C3 class TBI imported ball screw |
|
Guide rails for X Y Z axises |
H class imported HIWIN linear square rails 20mm |
|
Max speed |
5m/min |
|
Max engraving speed |
3m/min |
|
Spindle power |
2.2KW constant power spindle with imported NSK bearings |
|
Spindle speed |
0-24000r/min |
|
Inverter power |
2.2KW |
|
Drive motor |
stepper motor |
|
Working voltage |
AC220V/50-60HZ |
|
Command code |
G code |
|
Collect |
3.175mm,6mm |
|
Tool set equipment |
Z tool sensor |
|
Working precision |
0.05/300mm |
|
Repeat precision |
0.02mm |
|
Software |
Artcut/type3/artacam/UG/auto CAD |
|
Controls |
NC studio control system |
|
Net weight |
400kg |
|
Optional parts |
Taiwan sytech control system Spanish Fargues control system |
Features of the machine:
1)cast iron machine body under heat process
2)H class HIWIN linear square rails
3)TBI ball screw drive
4)special spindle motor used for mold working
5)special designing for mold industry
