Guangzhou Advanced Electronics Co., Ltd.
China Manufacturer with main products: Power Transformer, Inductance Coil, IC, Potentiometer, Magnetic Core, Resistance |
EE/EC/ETD type switch power transformer / line filter for LED light
| FOB Price: | 0.20 - 1.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Day |
| Shipping: | custom order 7-15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Pack in carton |
Quick Details
- Coil Number: Autotransformer
- Coil Structure: Toroidal
- Phase: Three
- Usage: Lighting
- Model Number: 150315
- Brand Name: H&s
Specifications
Description of our High Frequency Switching Power Transformer :
A. power transformer Feature:
1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 10kHz-1MHz
4. High isolation strength
5. Lower profile and weight
6. high power density
7. High-temperature resistant
8. Operating temperature -40°C to +125°C
9. Power range 10w-10kw
B. power transformer Wire Materials:
1. Copper, Aluminum, Aluminum Clad Copper.
2. The size of transformer total in Aluminum is larger than which total in Copper.
3. Aluminum instead of Copper Cost Save: 13%-35%/PC
C. power transformer Certification:
ISO9001, CESI, UL, CE, RoHS and SGS.
D. power transformer Testing Items:
1. No-load Test(No-load Current, No-load Voltage, No-load Loss)
2. Load Test (Load Voltage, Temperature-rise)
3. Inductive Voltage Test
4. DC Resistance Test
5. Safety Test
E. power transformer Application:
1. Electronic Meter & Apparatus
2. Cable TV & Digital Network
3. Electronic Control
4. Medical Equipment
5. New Electric Power Supply
6. Decorative Illumination System
7. Security Monitor & Control System
8. Comparison on Transformer with Toroidal, EI, R, CD Shape Core

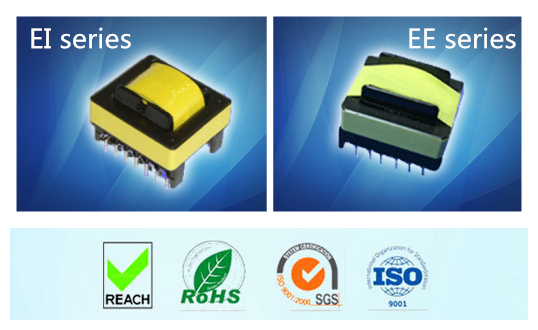

| Series | Feature&Application(mode transformer) |
| EE | applied in the switching power supply,main power transformer |
| EF | applied in the switching power supply,main power transformer |
| EFD |
Auxiliary powr transformer,main power transformer,choke coils |
| EPC | Auxiliary powr transformer,main power transformer |
| PQ |
applied in the linear filter,choke,pulse transformer,drive transformer |
| UU | varieties of switching power supply transformer,coke coils et |
| EC/EER/ER |
applied in the linear filter ,current tranformer,smoothing choke coil,drive transformer, switching power transformers. |
| RM |
filters, inductors and transformers for telecommunication other electronic equipment |
| POT |
filters for telecommunication equipment,and various kinds of inductors and transformers |
| DR |
Choke coils, Peaking coils, Linearity coils, Alarm coils, Power choke coils, Fixed choke coils, Filtering coils,etc; |
| EI |
Various kinds of transformers and chokes. |
| Toroidal Core(ring) | Pulse and wide-band transformers, various types of filters, inductors and chokes. |
